Specifications

• Height: 2.88 in
• Length: 3.5 in
• Weight: 0.1781 lbs
• Width: 1.21 in

Dimensions

• Height BX (IN): 7.75
• Maximum Wire Insulation Diameter (IN): 0.157
• Weight BX (LB): 10.6842
• Width BX (IN): 9.5

Additional Class Attributes

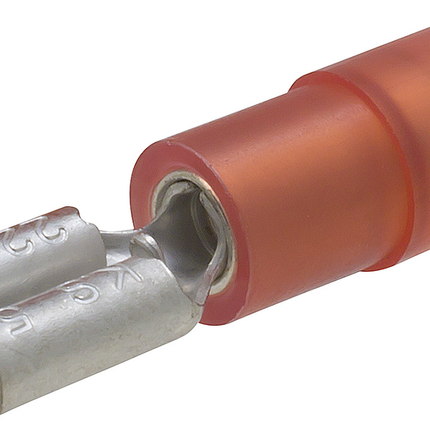

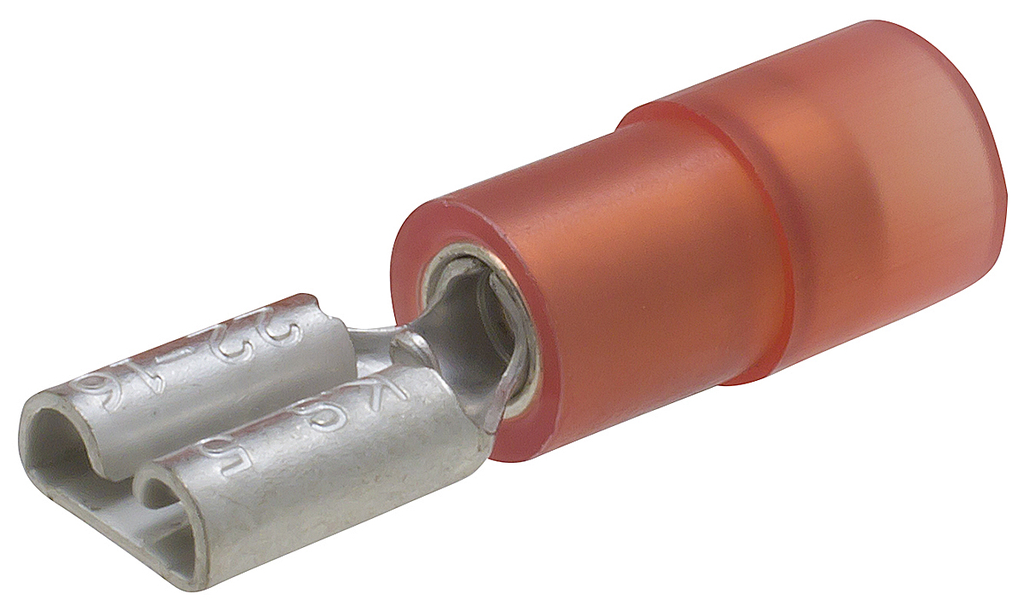

• Conductor Entry: Funnel wire
• Connection: Compression
• Construction Type: Butted
• End Connection: Female
• ILSCOs Die Index Number: C
• Installation Tooling: ILST-22K
• Installing Dies: Die Set C
• Insulation Flared End: Yes
• Insulation Grip: Yes
• Number of Conductors: 1
• Tongue Type: Disconnect

Material and Finish

• Conductor Material: Copper
• Connector Finish: Tin
• Fully Insulated: No
• Insulation: Vinyl
• Material: Brass

Testing Standards

• Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• UL Control Number: 19X5
• UL / CULUS Specification: UL/cUL 310 Listed
• UL File Number: E474613

Color

• Color: Silver, Red

Conductor Ranges

• Conductor Range CU Solid (Primary, run, main, line): 18 Sol - 22 Sol
• Conductor Range CU Stranded (Primary, run, main, line): 18 Str - 22 Str

Voltage

• Voltage Rating: 300 V

Environment and Temperature

• Halogen Free: No
• Temperature Rating: 75°C

General

• Bag Quantity: 50
• Carton Quantity Description: STD PACK QTY 10
• Dual Rated: No
• NEMA Code: S-588-3
• UPC Code: 78366921403
