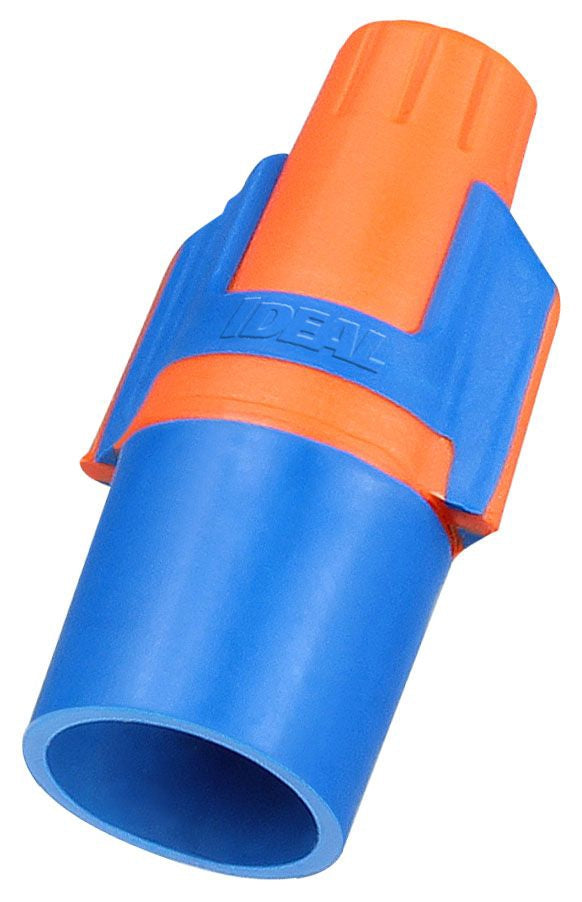

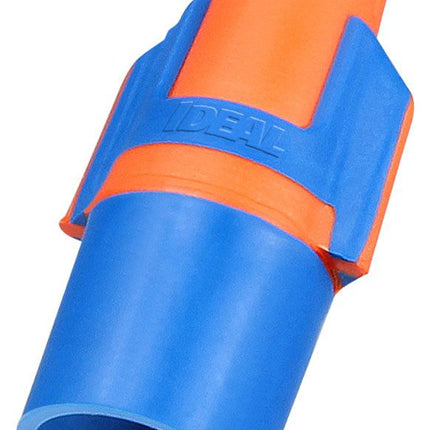

IDEAL 30-643J TWISTER PROFLEX MINI 343 O/B 500/JAR Wire Connector

The IDEAL 30-643J Twister ProFLEX Mini 343 Orange/Blue wire connector is designed for secure and reliable electrical connections in residential and commercial wiring applications. This connector is part of IDEAL Industries' trusted line of wire and cable accessories, offering a wide wire combination range and enhanced comfort for electrical distributors and lighting solutions providers. It is suitable for copper-to-copper wire connections in dry locations and supports a voltage rating up to 600 volts for building wire and 1000 volts for signs or lighting fixtures.

Specifications

• Manufacturer: IDEAL Industries
• Model Number: 30-643J
• Color: Orange/Blue
• Wire Combination Range: 22 to 12 AWG (Min. 2 #22 – Max. 4 #12 Solid)
• Wire Combination Range (mm²): 0.34 mm² to 4.0 mm²
• Voltage Rating: 600V for building wire, 1000V for signs or lighting fixtures
• Temperature Rating: 105°C (221°F) maximum
• Material: Polypropylene shell with expanding square-wire spring
• Quantity: Jar of 500
• UPC: 783250609291
• Product Weight: 0.000526667 lbs

Features

• Widest wire range in the industry for Orange/Blue connectors
• Flexible skirt improves protection and adapts to tight electrical boxes
• Swept wing design with SureGrip™ overmold for greater comfort, leverage, and torque
• Expanding live-action spring supports a wide range of wiring configurations
• Polypropylene shell expands for smooth, progressive tightening ensuring dependable connections
• Hexagonal shape accommodates standard nut driver for easy installation
• UL Listed to 105°C (221°F) and flame-retardant UL 94V-2 rated shell
