Features

• Solid one-piece pins for reliable electrical contact
• Gasketed sealing ring provides watertight seal
• Raised collar surrounds each phase pin
• Corrosion Resistant

Specifications

• Country of Origin: United States
• Current / Amperage Rating: 100 A
• Width: 6.100 in
• Each - Width: 6.100 in
• Industry Standard(s): CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
• Amperage Rating: 100 A
• Application: Marine Wiring Devices
• Color: Yellow
• Cord Type: All Portable
• Environmental Conditions: Watertight
• NEMA Rating: Non-NEMA
• Number of Poles: 4-Pole
• Number of Wires: 5-Wire
• Phase: Three Phase
• Special Features: Corrosion Resistant
• Standard: CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033

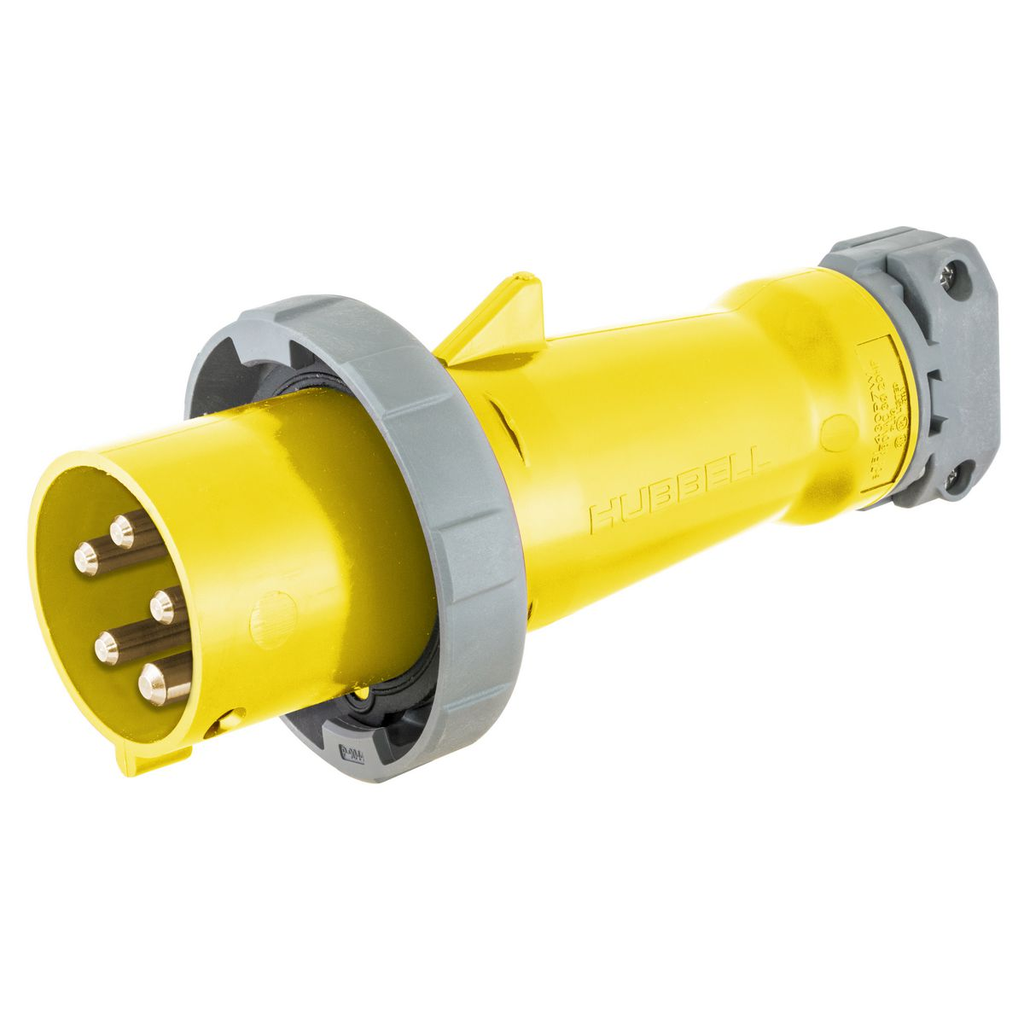

• Type: Watertight Plug
• Voltage Rating: 3 Phase Y 277/480 VAC
• Wattage: 48000
• Wire Size: #3 AWG to #1/0 AWG Copper Wire Only
• Voltage Rating Description: 3 Phase Y 277/480 VAC
• Connectivity: Pressure Terminal Screws
• Display Size: Standard Sized
• Nema Rating: Non-NEMA
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Style: Standard Service
• Class Code: A12
• Description - Invoice: MARINE PS PLUG, 4P5W, 100A 277/480V
• Freight Class Code: 06168002
• Harmonization Code: 8536694020
• Image Actual Or Representative: A
• MSDS Flag: No
• Sub Class Code: A12A180
• Material - Mounting Hardware: Cord Mounted
• Current Rating: 100 A
• Material: Composite
• Series: Corrosion Resistant
• Base Unit of Measure: EA
• BOX SIZE: 13.100x16.600x14.800 (in)
• Carton - SCC-14 Next Lower Level Sub Pack: 00783585510101
• Case Weight: 27.000 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each

Certifications

• EU RoHS Indicator: Yes
