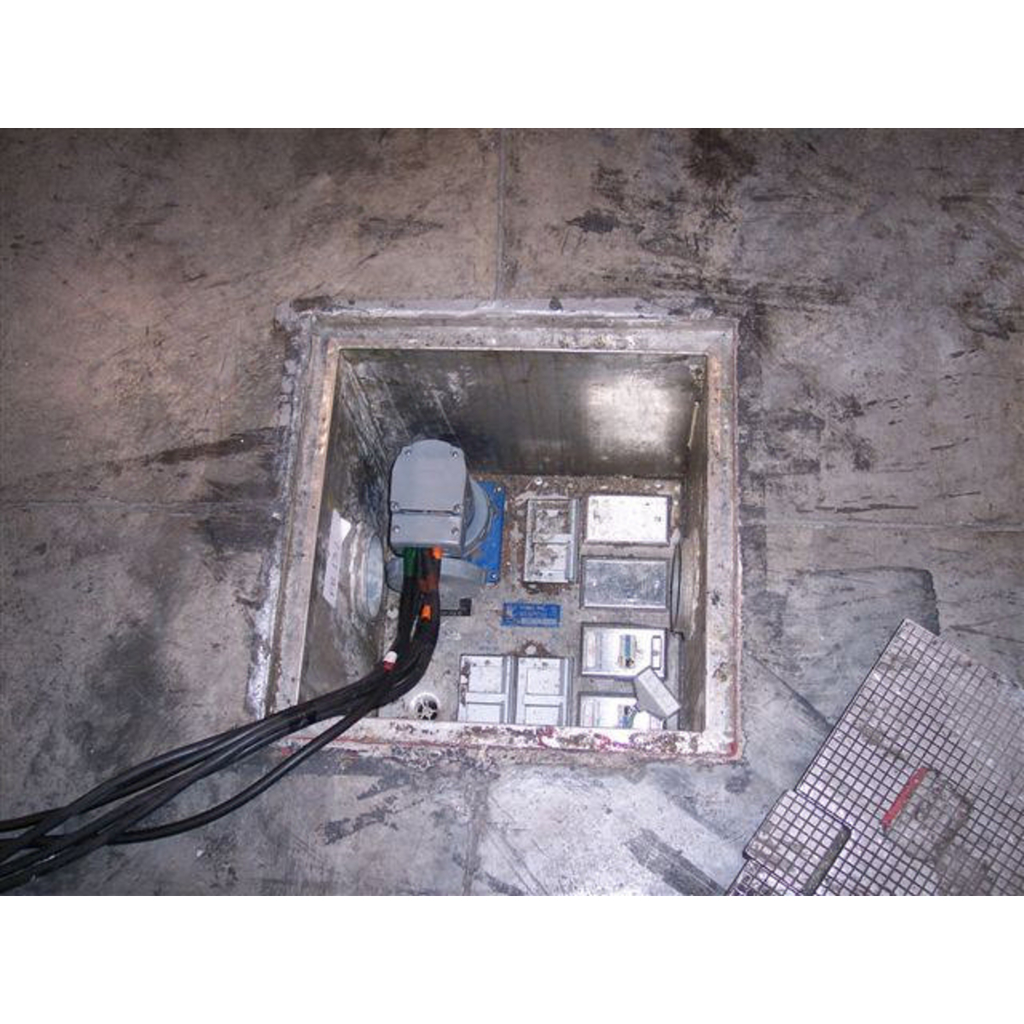

Features

• Self-closing gasketed cover
• Color coded housings for easy identification
• Super tough insulated non-metallic housing
• Watertight

Specifications

• Country of Origin: United States
• Current / Amperage Rating: 100 A
• Width: 6.400 in
• Each - Width: 6.400 in
• Industry Standard(s): Listed To Standard UL1682
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
• Amperage Rating: 100 A
• Application: High Ampacity Watertight Connections
• Color: Blue
• Environmental Conditions: Watertight
• NEMA Rating: Non-NEMA
• Number of Poles: 4-Pole
• Number of Wires: 5-Wire
• Phase: Three Phase
• Special Features: Watertight
• Standard: Listed To Standard UL1682
• Type: Watertight Receptacle
• Voltage Rating: 3 Phase Y 120/208 VAC
• Wattage: 20800
• Wire Size: #3 AWG to #1/0 AWG
• Voltage Rating Description: 3 Phase Y 120/208 VAC
• Connectivity: Pressure Terminal Screws
• Display Size: Standard Sized Product
• Nema Rating: Non-NEMA
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Style: Standard Service
• Class Code: A12
• Description - Invoice: PS, RECPT, 4P5W,100/125A 120/208V,4X/69K
• Freight Class Code: 06168002
• Harmonization Code: 8536694020
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: 5100R9W
• Sub Class Code: A12A180
• Material - Mounting Hardware: Screw Mounting
• Current Rating: 100 A
• Material: Thermoplastic
• Series: HBL Heavy Duty
• Base Unit of Measure: EA
• BOX SIZE: 8.000x19.500x12.400 (in)
• Carton - Gross Weight per Pack: 24.550 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585405124
• Carton - Total Units: 6 EA
• Case Weight: 11.653 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet Height: 48.000 in
• Pallet Length: 48.000 in
• Pallet Weight: 968.100 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Yes
