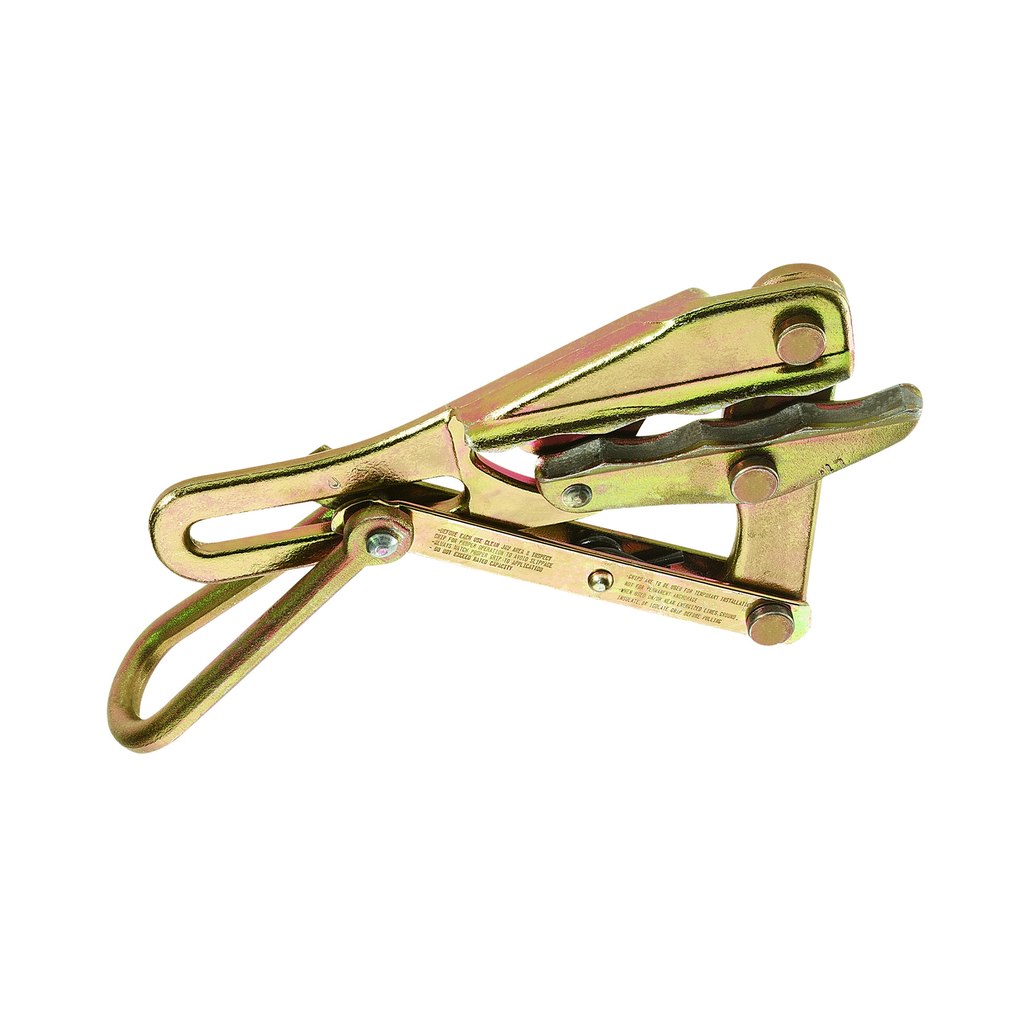

Features

• Serpentine jaws are specially machined to allow insertion of insulated conductor through the jaws, which reduces danger of slippage which might result in insulation damage
• Eliminates necessity of stripping insulation from conductor
• Round inside-jaw contour
• Manufactured from drop-forged, heat-treated steel for excellent durability
• Made in USA
• (NOT HDPE)

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

• Cable Type: PVC-Coated
• Cable Diameter: 0.49" to 0.79" (12.45 to 20.07 mm)
• Jaw Length: 5.688" (14.5 cm)
• Maximum Safe Load: 8000 lb (3629 kg)
• Jaw Type: Round - Serpentine
• Type: Chicago Grip
• Locking Handle: Yes
• Hot Latch: No
• Spring: Yes
• Swing Latch: No
• Height: 2.2500 in
• Width: 5.8500 in
• Depth: 10.9170 in
• Weight: 7.7220 lbs
