Features

• Insulating Liner Material is Self-Extinguishing
• Tough Plastic Liner Won't Chip, Crack, Swell or Shrink
• Resists Corrosion, Chemicals and Temperature Extremes
• Low Surface Friction Allows Wires to be Pulled with Virtually No Abrasion on the Cable Insulation

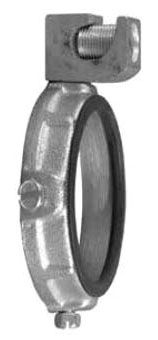

• Insulated Bushings Fasten and Ground Threaded Rigid Metal Conduit to an Enclosure
• Lug Used to Connect Bonding Jumper to a Neutral Bus Bar

Additional Information

• Turning Radius 3.06 Inch
• Temperature Rating 302 Deg F
• Includes Lug
• Applicable Standard NEC/CEC

Specifications

• Type: Threaded, Set Screw
• Trade Size: 3-1/2 Inch
• Wire Size: 14 AWG Solid to 2/0 AWG Stranded
• Lug Type: Bronze, Lay-In
• Conductor Material: Copper/Aluminum
• Throat Type: Insulated
• Diameter: 4.5 Inch
• Height: 1 Inch
• Material: Zinc Plated Malleable Iron (Body), Zinc Plated Steel (Clamping/Set Screw)
• Approval: UL 467/514B, CSA C22.2
• Used On: IMC/Rigid Conduit
• Series/Model: GIB-L
