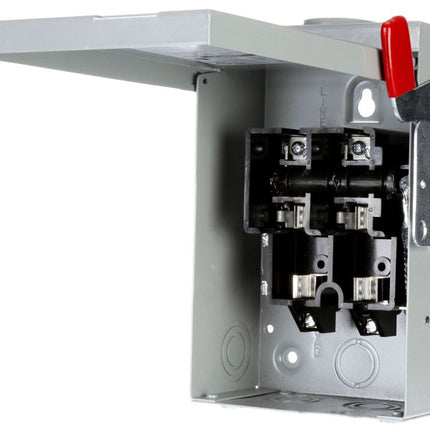

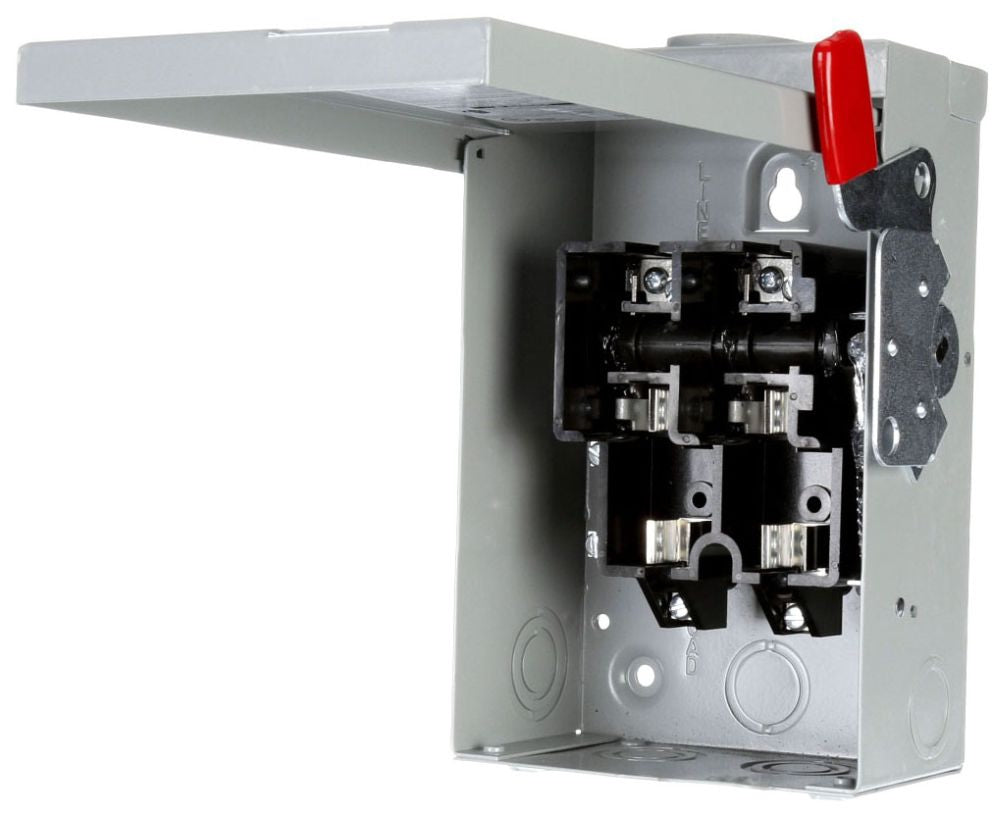

GF221NR, Circuit Protection Safety Switch
SKU: #311802
Part: #GF221NR
UPC: 783643335189
GF221NR, Circuit Protection Safety Switch
SKU: #311802
Part: #GF221NR
UPC: 783643335189
Next day delivery
Description
Features
- New Compact Sizes for Improved Space Efficiency
- New Oversized Lugs for Maximum Wire Range and Easy Termination, 30 Amp Switches
- Visible Blade, Double Break Switching Action
- Padlocking Provisions to Lock Cover Closed or to Lock Switch in the Off Position
Additional Information
- Switch Type STDP
- Temperature Rating -29 to 85 Deg C
Specifications
- Type: General Duty Safety
- AC Voltage Rating: 240 Volt
- Current Rating: 30 Amp
- Number of Poles: 2
- Neutral Type: Solid
- Enclosure: NEMA 3R
- Size: 5.44 Inch Width x 2.75 Inch Depth x 8.56 Inch Height
- Enclosure Material: Steel
- Approval: UL 98
Downloads
Data SheetBrochure
Other 1
