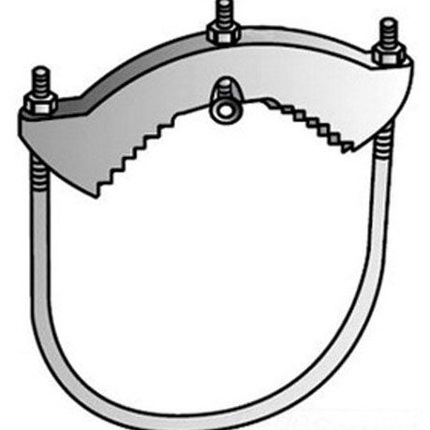

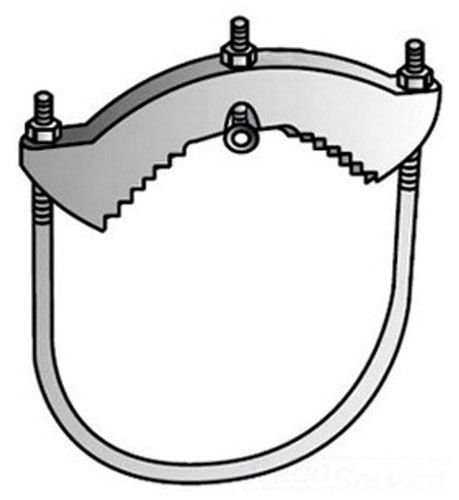

G-1200G, Universal Ground Clamp
SKU: #315029
Part: #G-1200G
UPC: 783126238358
G-1200G, Universal Ground Clamp
SKU: #315029
Part: #G-1200G
UPC: 783126238358
Next day delivery
Description
G-1200G Universal Ground Clamp – Electrical Distributor Grounding Solutions
The G-1200G Universal Ground Clamp by O-Z Gedney is designed for securely connecting grounding conductors to cold water ground pipes, supporting sizes from 1-1/4” up to 12”. This grounding clamp is a reliable component within electrical distribution systems, offering robust grounding solutions essential for safe and compliant installations. It is commonly used in lighting solutions, wire and cable grounding, and as a critical accessory from a reputable switchgear supplier.
- Application: For connecting grounding conductors to cold water ground pipe
- Material: Hot Dip Galvanized Malleable Iron Body
- Installation Method: U Bolt to Pipe
- Length: 14-13/16 inches
- Weight: 4.13 lbs
- Manufacturer: O-Z Gedney
- Manufacturer Part Number: G-1200G
- Ground Pipe Size Compatibility: 12 inches nominal size (304.8 mm to 342.9 mm O.D. range)
- UL Standard: 467 Certified
- UL Listed: E-24264
- CSA Standard: C22.2 No. 18 Certified
- Federal Specification: W-F-406E Compliant
Specifications
- Universal design accommodates a wide range of grounding pipe sizes from 1-1/4” through 12”
- Hot dip galvanized malleable iron body ensures corrosion resistance and durability in outdoor and wet environments
- Standard U-bolt installation provides secure and straightforward mounting to pipes
- Built-in ground wire connector supports #8 solid through #2 stranded AWG wire (per industry standard)
- Suitable for direct burial and wet locations when using cast bronze clamps (suffix “B” versions)
- Complies with NEC/CEC requirements for grounding clamps, ensuring safe and code-compliant installations
- Compatible with armor ground wire connectors and ground hubs for expanded grounding system configurations
