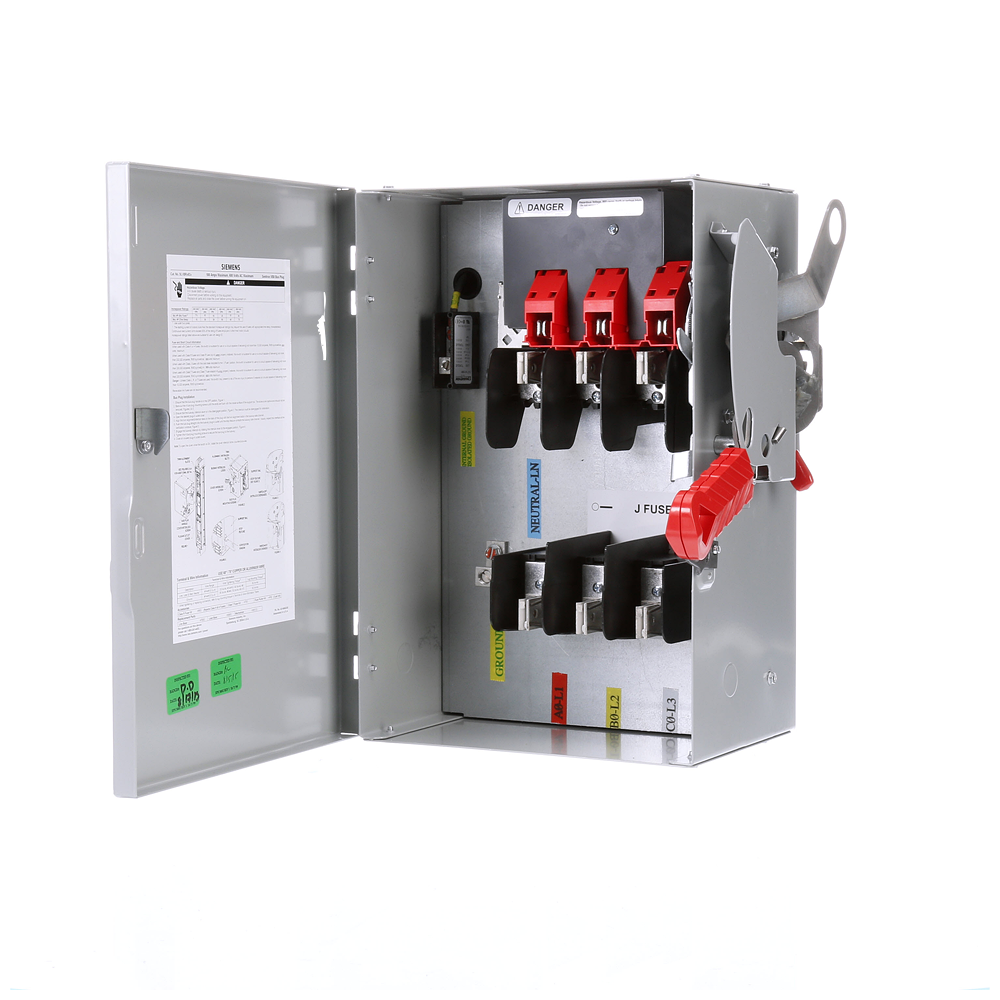

FUS BP RIS 3P4W 600V 100A IP40 INTG Fusible Switch

This Siemens Sentron II heavy-duty fusible switch is designed for 3-phase, 4-wire electrical distribution applications. It features a riser orientation suitable for integration within busway systems, providing reliable protection and isolation for electrical circuits up to 600V and 100A maximum current rating. Ideal for electrical distributors and switchgear suppliers requiring robust and compliant fusible switches with internal grounding and IP40 protection rating.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: SLVBR4630G
• Number of Phases: 3
• Voltage Rating: 600V
• Maximum Ampere Rating: 100A
• Configuration: 3 Phase, 4 Wire
• Orientation: Riser
• Ingress Protection Rating: IP40
• Internal Ground: Yes
• Dimensions (W x H x L): 13 in x 15 in x 23 in
• Product Weight: 41.8 lbs
• Country of Origin: Mexico

Features

• Heavy-duty fusible switch providing circuit protection compatible with H, R, T, K, and J fuse classes
• Designed for riser orientation installations in busway systems
• Internal grounding for enhanced safety and compliance
• IP40 rated enclosure suitable for indoor electrical distribution environments
• Complies with UL and CSA standards ensuring reliable performance
• Bolt-on mounting for secure installation
• Highly visible position indicator and dual interlocks for safe operation (as per Sentron SLVB series features)
