Features

• The firestopping system shall utilize an intumescent foam plug having a nominal density of 19 pcf. The plug shall expand a minimum 10 times. The one-piece product shall be sized to fit the inside diameter of the opening or sleeve. The plug shall be UL Classified and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115
• Easy to install., Testing in Gypsum walls and concrete walls and floors., Soft and easily compressed into conduit stubs and sleeves., No expiration date., Partners with other SpecSeal Firestop Products., Can be used for blank openings as well as long term seals.
• Testing in Gypsum walls and concrete walls and floors
• Soft and easily compressed into conduit stubs and sleeves
• No expiration date
• Partners with other SpecSeal Firestop Products

Standards and Certifications

• ASTM E814
• UL 1479
• CAN/ULC S115
• ASTM E814 (UL1479)
• CAN/ULC-S115
• FM Approved: No
• UL Certified Firestop: Yes
• FBC System Compatible: No

Applications

• Blank Opening
• Cables

Properties

• Finished Product
• Intumescent
• light weight
• Low VOC
• No Expiration
• Paintable
• Re-Enterable
• Smoke Barrier
• STC Rating

Construction Type

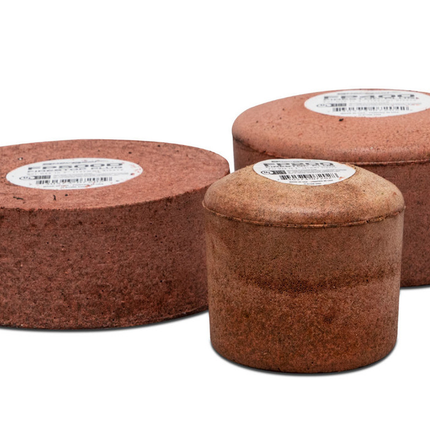

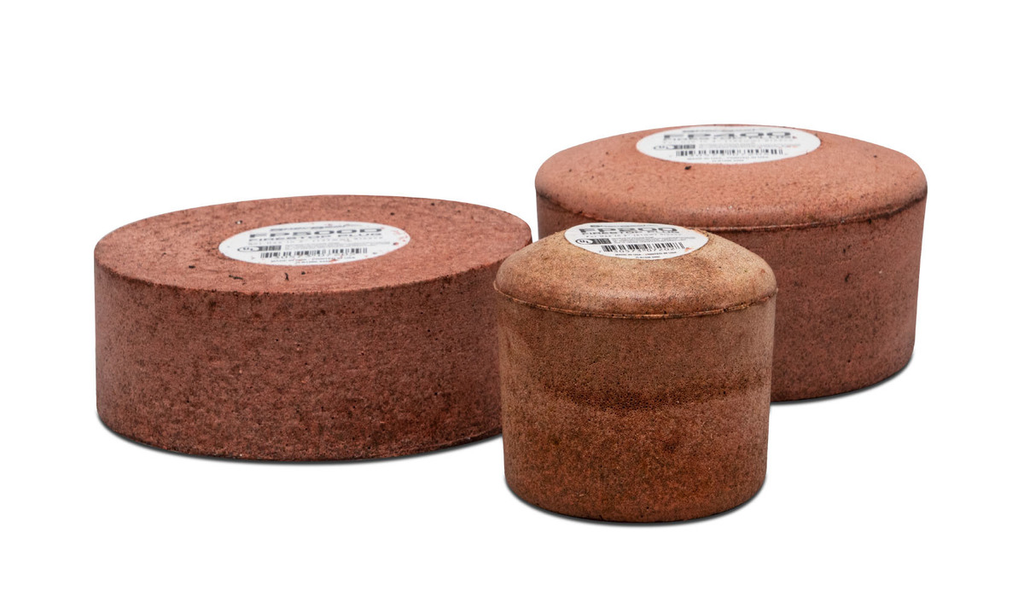

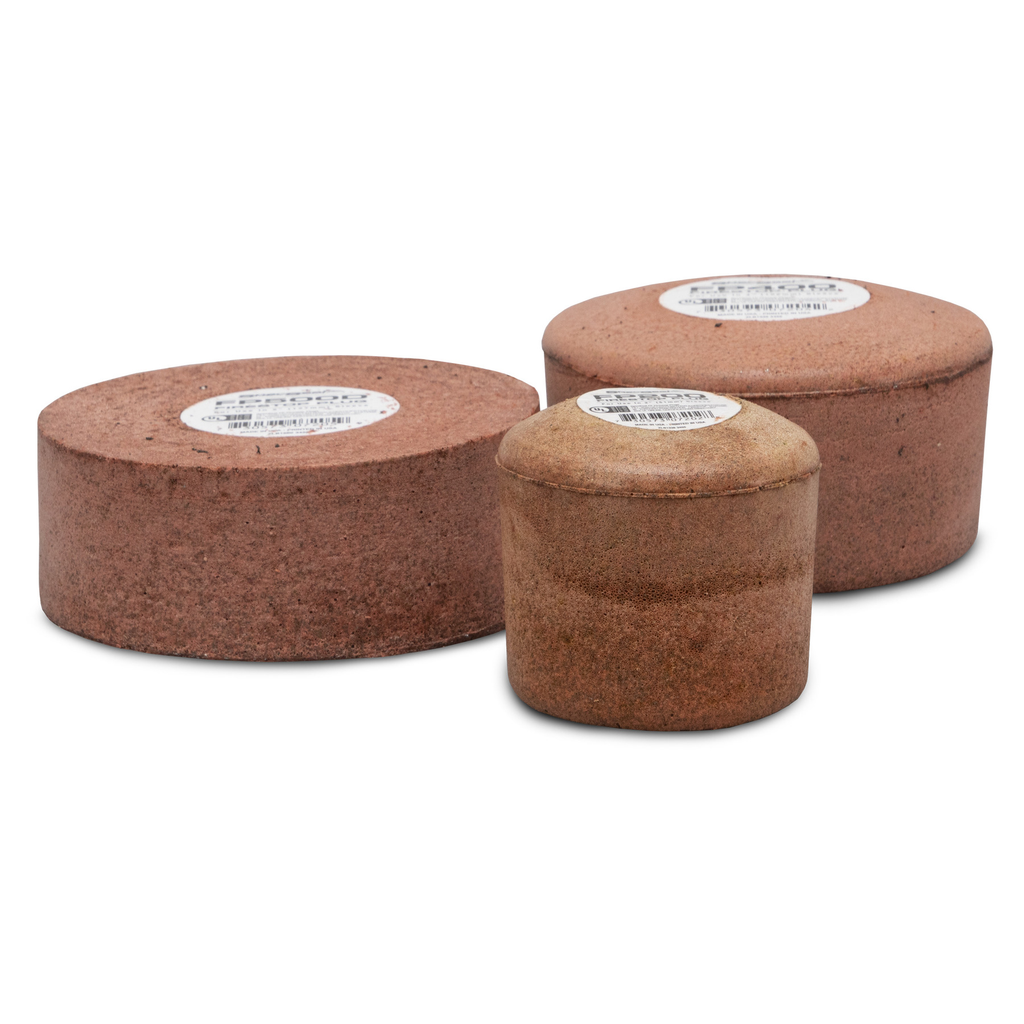

• SpecSeal FP Intumescent Firestop Plugs are designed for temporary or permanent sealing of single or grouped cables, metallic and non-metallic pipe penetrations, and blank openings through common construction such as concrete or gypsum board

Industry

• Residential
• Commercial
• Industrial
• Construction
• Government

Recommended Use

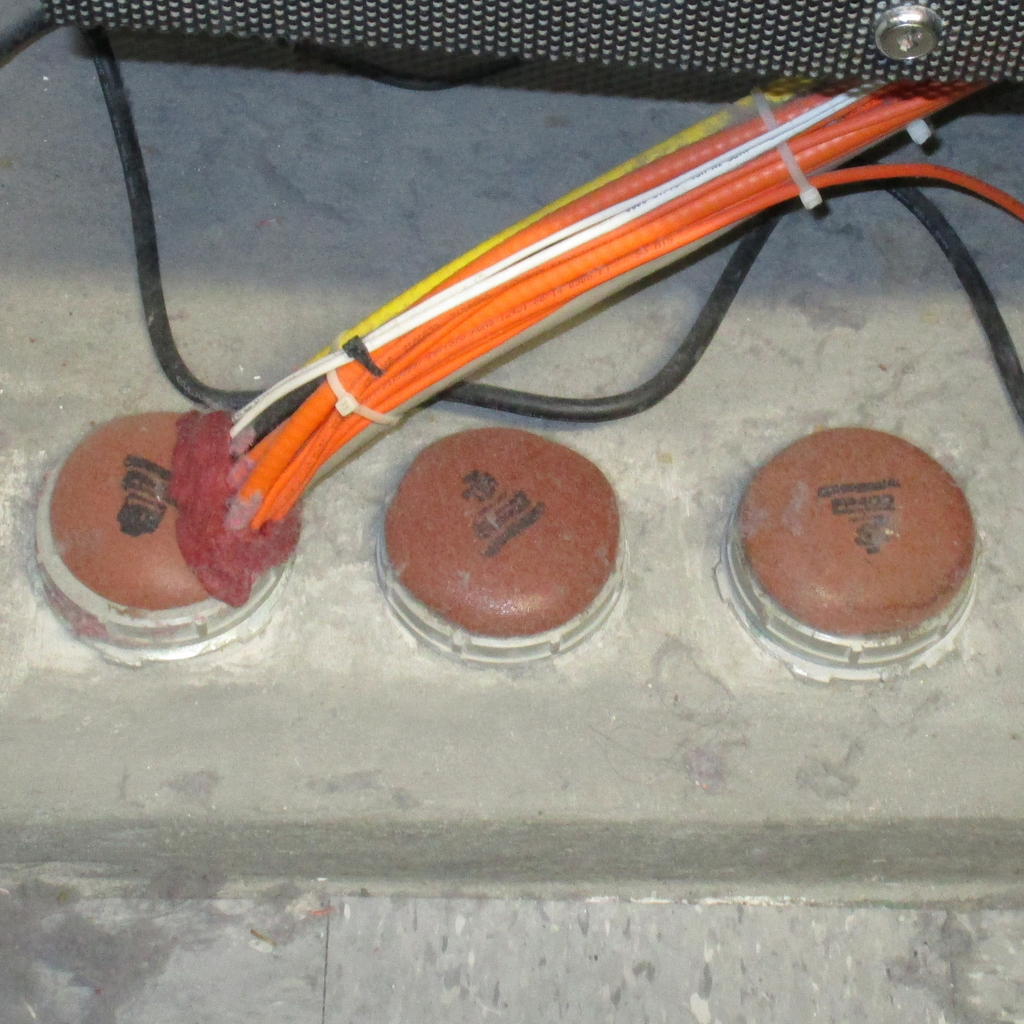

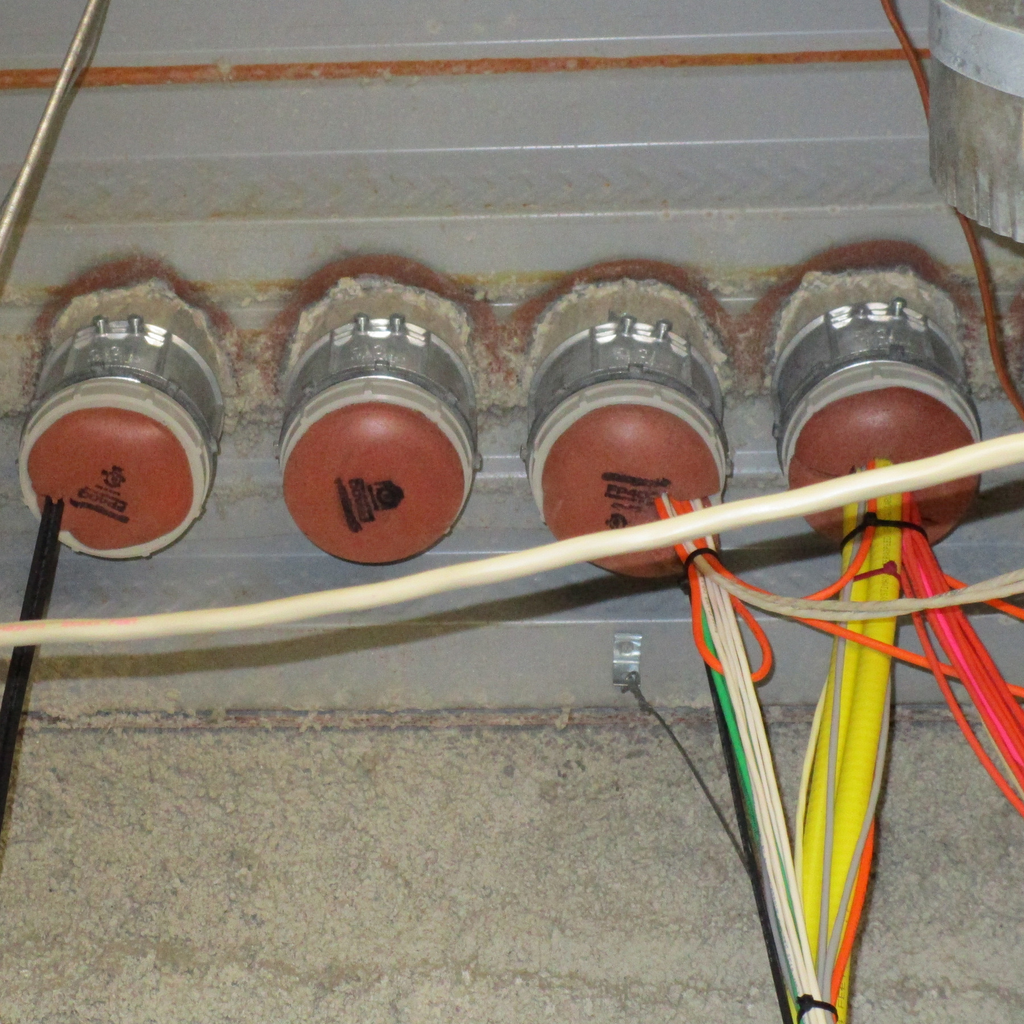

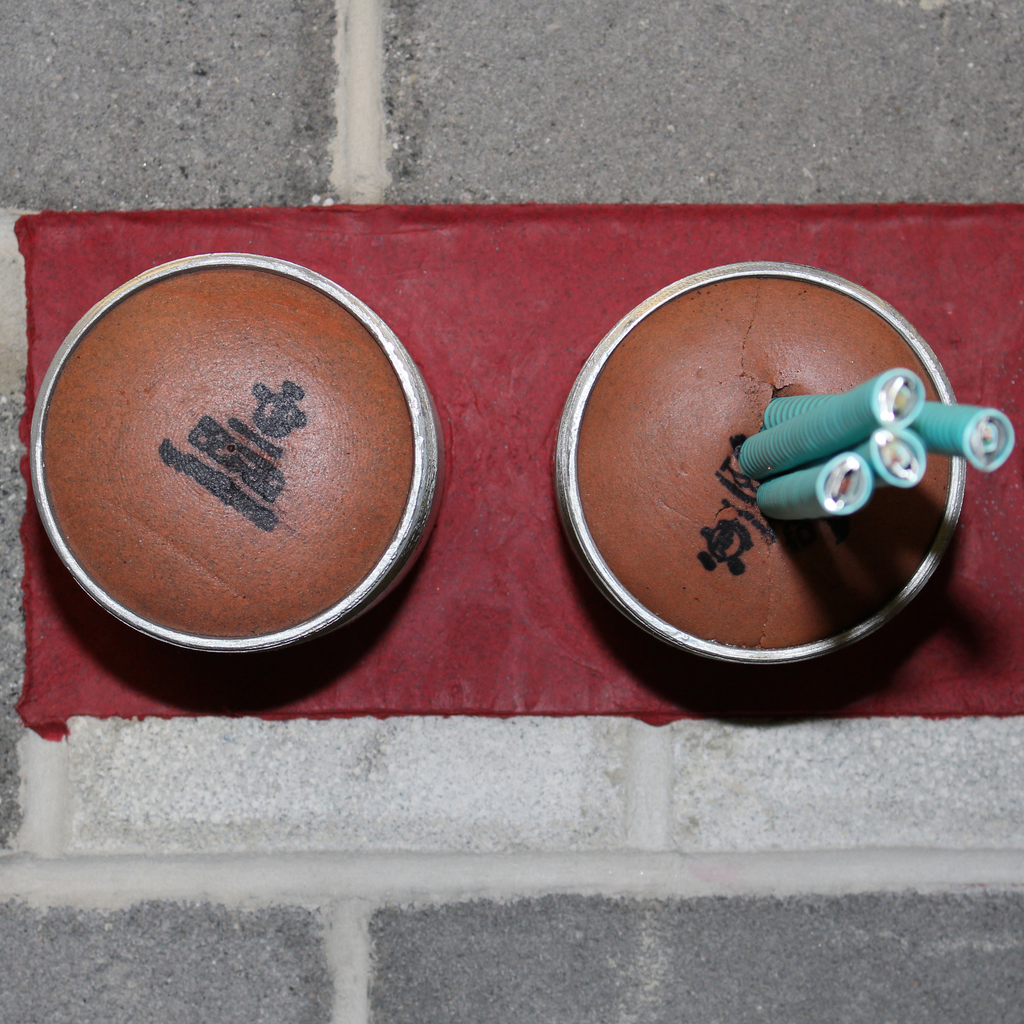

• Firestop Plugs are a great choice for both temporary or permanent sealing of blank openings or cable penetrations.

Specifications

• Country of Origin: USA
• Weight: 0.608 lbs.
• Length: 4.64 in.
• Width: 4.64 in.
• Height: 3.1 in.
• Color: Red
• Composition: Polyurethane
• Material: Polyurethane Intumescent
• Firestop Device Type: Intumescent Firestop Plug
