Description
Features
- Corrosion Resistant
- Malleable Iron for High Tensile Strength and Ductility Provides Greater Resistance to Impact and Shock
- Both Malleable Iron and Aluminum Boxes have Ridge Top Construction for Positive Cover/Gasket/Box Fit
- Accurately Tapped, Tapered Threads for Tight, Rigid Joints, Ground Continuity
- Smooth, Rounded Integral Bushing in Each Hub Protects Conductor Insulation
- Permit Access to Conductors for Splicing and Maintenance
- Allow Connections for Branch Conduit Runs
- Provide Excellent Service in Areas where Boxes are Subject to Rough Usage
Additional Information
- Application Indoor/Outdoor
Specifications
- Height: 5.88 Inch
- Width: 2.81 Inch
- Depth: 2.69 Inch
- Capacity: 25 Cu Inch
- Number of Gangs: 1
- Number of Hubs: 2
- Hub Location: (1) Side, (1) End
- Hub Size: 3/4 Inch
- Material: Zinc Electroplated/Dichromate/Epoxy Powder Coated Malleable Iron
- Shape: Deep
- Configuration Type: FDL
- Mounting Hardware: Not Included
- Approval: UL 514A, CSA C22.2
- Series/Model: FD
Downloads
CatalogOther 1
More Information
Manufacturer Catalog Number
FDL175
Weight
1.7800
Width
2.81
Height
5.88
Material
Gray Iron
Type

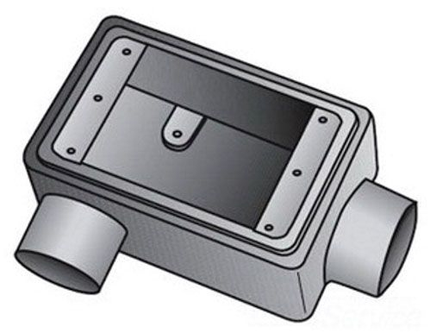

1-Gang Type FDL Deep Cast Device Box
