Features

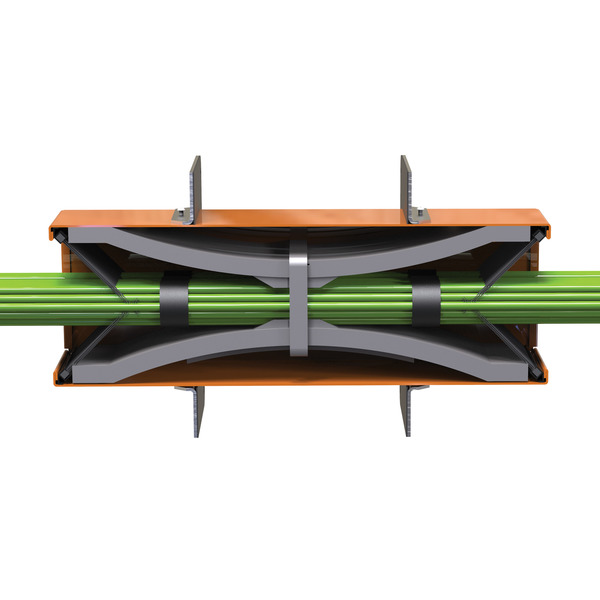

• All data, video, and communications cable bundles shall utilize an enclosed fire rated pathway device wherever said cables penetrate rated walls and floors. The fire rated pathway shall contain a built-in fire sealing system sufficient to maintain the hourly fire rating of the barrier being penetrated. The self-contained sealing system shall automatically adjust to the installed cable loading and shall permit cables to be installed, removed, or retrofitted without the need to remove or reinstall firestop materials. The pathway shall be UL Certified and/or FM Systems Approved and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115.
• Self Sealing design provides exceptional fire and smoke leakage ratings., Allows for easy Moves, Adds, and Changes., Designed for New and Existing conditions., Variety of accessories available for any field condition., Modular grid system for riser applications., Greatest achievable cable density of any solution on the market.
• Self Sealing design provides exceptional fire and smoke leakage ratings
• Allows for easy Moves, Adds, and Changes
• Designed for New and Existing conditions
• Variety of accessories available for any field condition

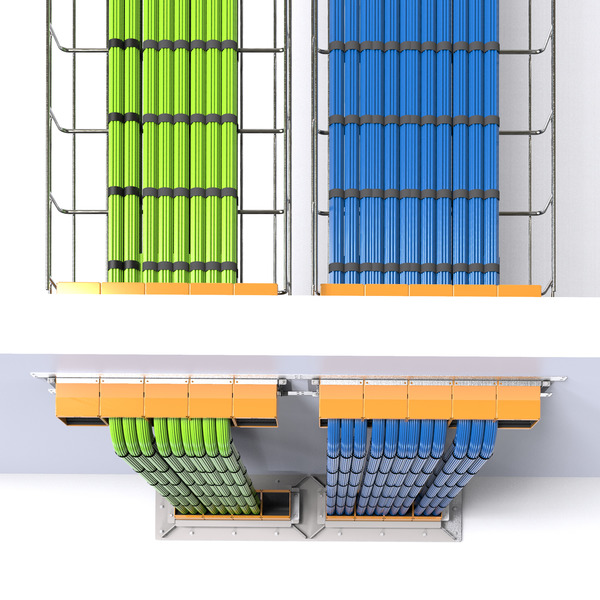

• Modular grid system for riser applications
• Greatest achievable cable density of any solution on the market

Standards and Certifications

• ASTM E814
• UL 1479
• CAN/ULC S115
• ASTM E814 (UL1479)
• CAN/ULC-S115
• FM Approved: Yes
• UL Certified Firestop: Yes
• FBC System Compatible: No

Applications

• Cables

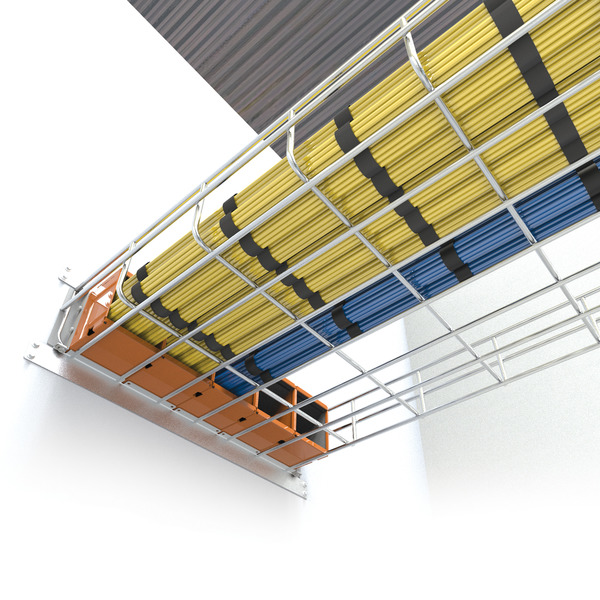

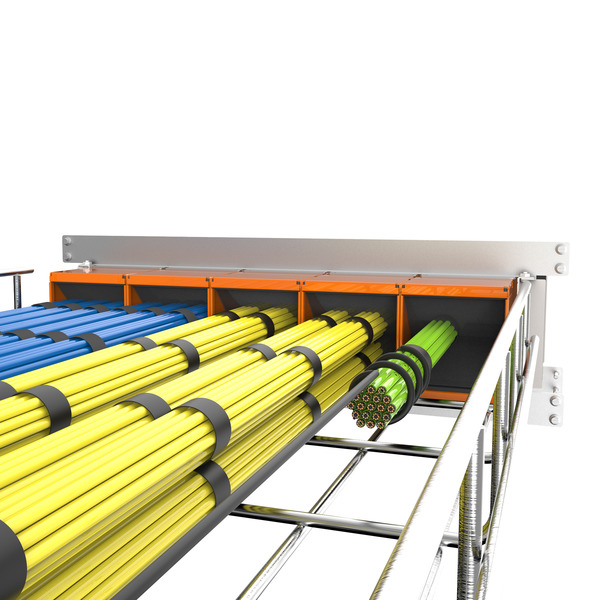

• Cable Tray

Properties

• Finished Product
• Intumescent
• Low VOC
• No Expiration Paintable Re-enterable
• Sound Barrier
• Zero Maintenance.

Construction Type

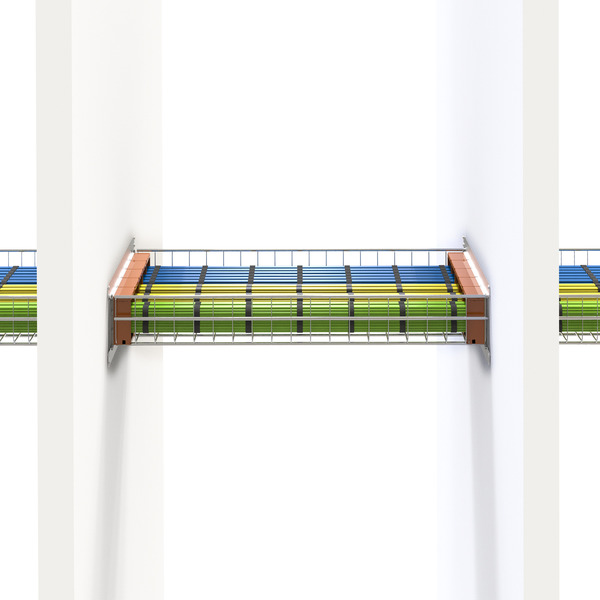

• EZ Path Series 44 Fire Rated Pathway is designed for easy installation in floors and walls all types of construction.

Industry

• Residential
• Commercial
• Industrial
• Construction
• Government

Recommended Use

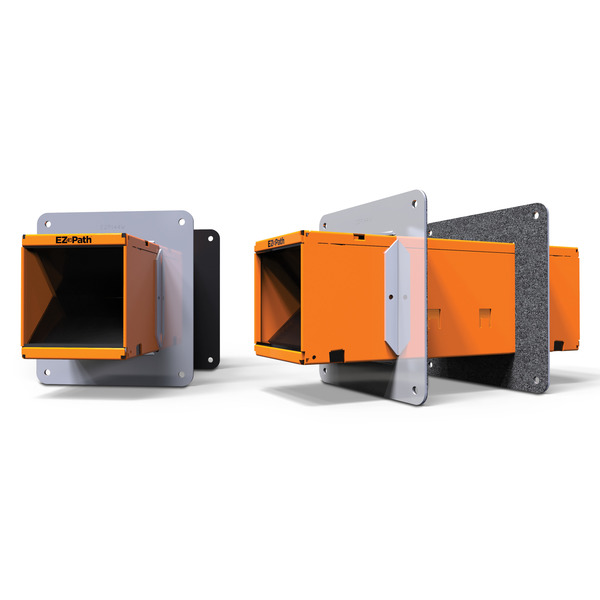

• EZ Path Series 44+ Fire Rated Pathway is designed for easy installation in floors and walls. Tested and approved cable capacities range from 0 to 100% visual fill. EZ Path Series 44+ Fire Rated Pathway when installed with available single wall plates is designed for new cable installations. In these installations, the device does not require mechanical attachment to either the wall or the wall framing and must be installed after the wallboard has been installed. Split floor plates and multi-gang wall and floor brackets permit installation around previously installed cables if so desired. These installations require mechanical attachment to the barrier.

Specifications

• Country of Origin: USA
• Weight: 26.59 lbs.
• Length: 29 in.
• Width: 10 in.
• Height: 4.25 in.
• Color: Silver
• Composition: Galvanized Steel, Intumescent
• Material: Galvanized Steel
• Firestop Device Type: Fire-Rated Pathway
