Features

• All data, video, and communications cable bundles shall utilize an enclosed fire-rated pathway device wherever said cables penetrate rated walls. The fire-rated pathway shall contain a built-in fire sealing system sufficient to maintain the hourly fire rating of the barrier being penetrated. The self-contained sealing system shall automatically adjust to the installed cable loading and shall permit cables to be installed, removed, or retrofitted without the need to remove or reinstall firestop materials. The pathway shall be UL Certified and/or FM Systems Approved and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115.
• Self Sealing design providing exceptional F&L Ratings., Designed for New and Existing conditions., Full Suite of plate configurations for any field scenario., Available in an array of colors for easy cable pathway management., Allows for easy Moves, Adds, and Changes.
• Self Sealing design providing exceptional F&L Ratings
• Designed for New and Existing conditions
• Full Suite of plate configurations for any field scenario
• Available in an array of colors for easy cable pathway management
• Allows for easy Moves, Adds, and Changes

Standards and Certifications

• ASTM E814
• UL 1479
• CAN/ULC S115
• ASTM E814 (UL1479)
• CAN/ULC-S115
• FM Approved: Yes
• UL Certified Firestop: Yes
• FBC System Compatible: No

Applications

• Cables

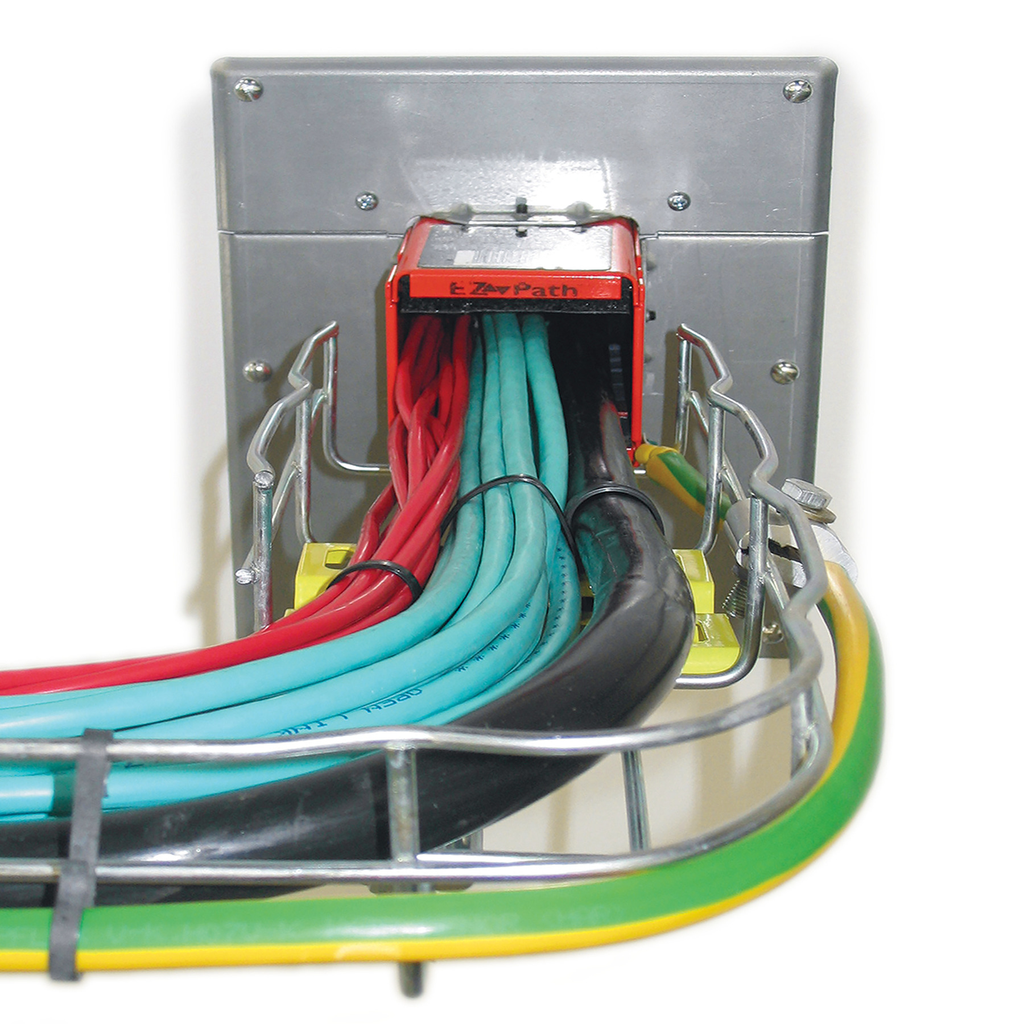

• Cable Tray

Properties

• Finished Product
• Intumescent
• Low VOC
• No Expiration Paintable Re-enterable
• Sound Barrier
• Zero Maintenance.

Construction Type

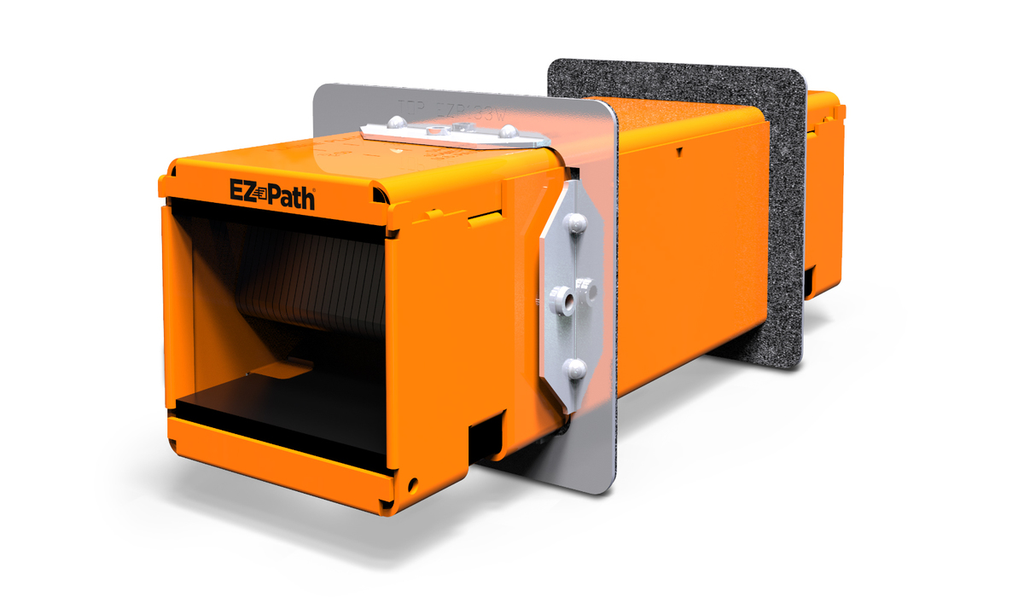

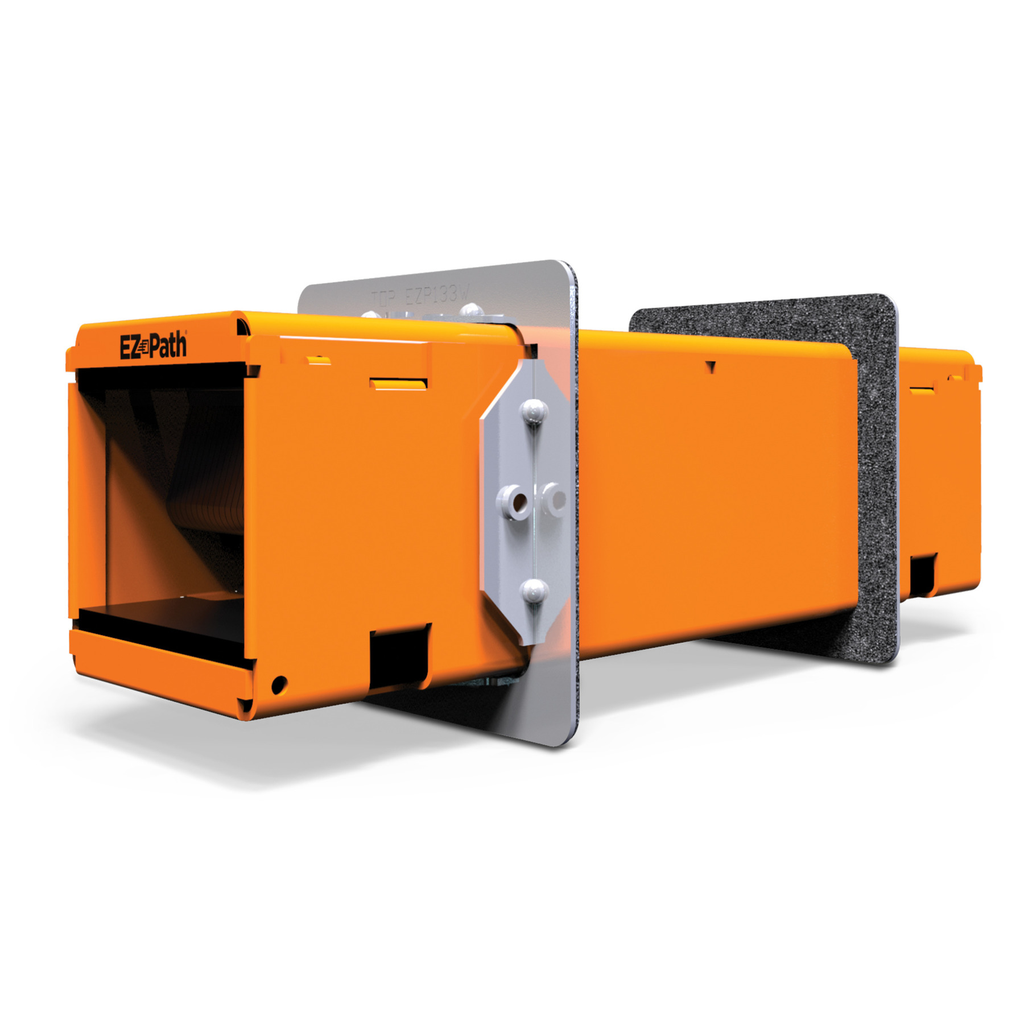

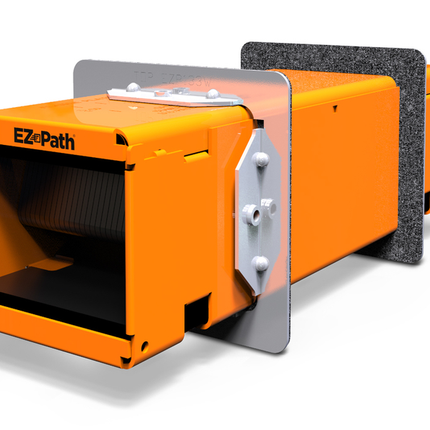

• EZ Path Series 33 Fire Rated Pathway is designed for easy installation in floors and walls in all types of construction.

Industry

• Residential
• Commercial
• Industrial
• Construction
• Government

Recommended Use

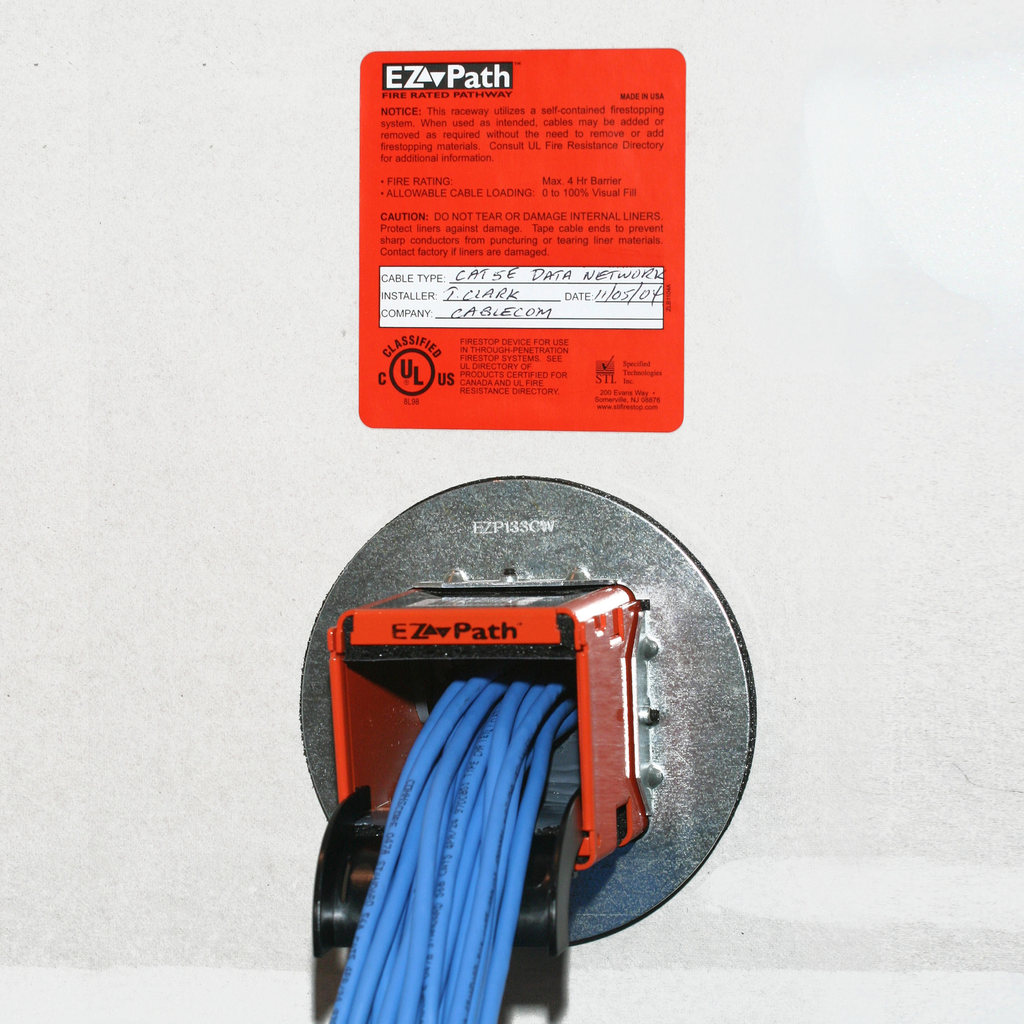

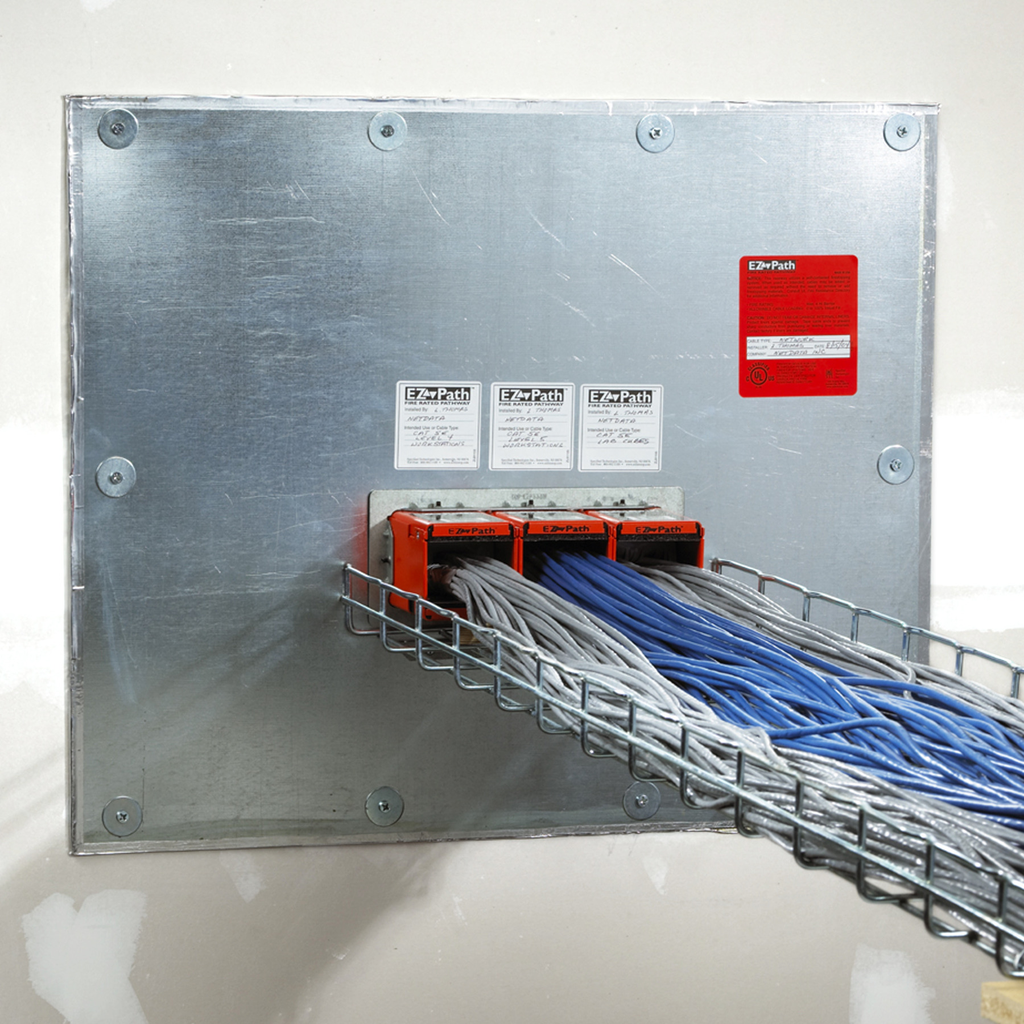

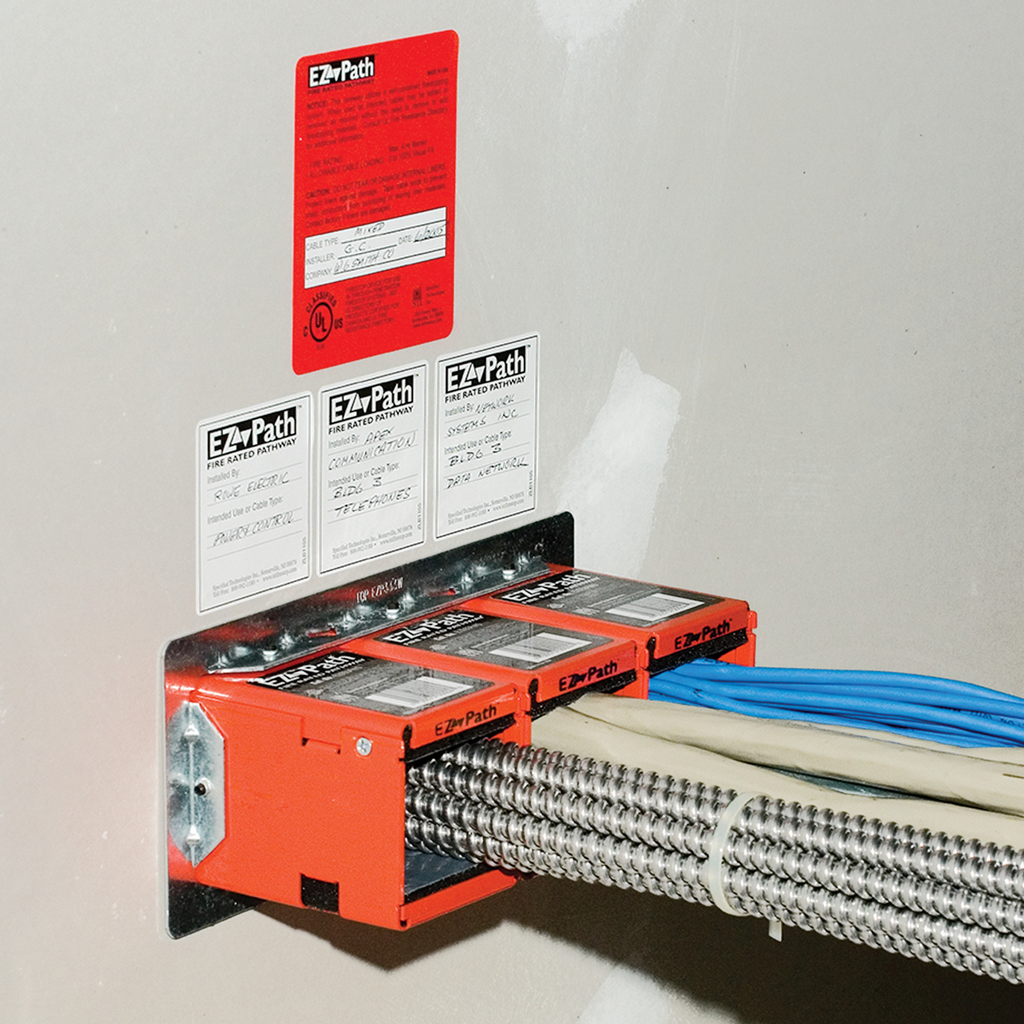

• EZ Path Series 33 Fire Rated Pathway is designed for easy installation in floors and walls. Tested and approved cable capacities range from 0 to 100% visual fill. EZ Path Series 33 Fire Rated Pathway when installed with available wall plates is designed for new cable installations. In these installations, the device does not require mechanical attachment to either the wall or the wall framing and may be installed after the wallboard has been installed. EZ Path’s split body design also allows the device to be easily disassembled and installed around previously installed cables in existing construction.

Specifications

• Country of Origin: USA
• Weight: 0.82 lbs.
• Length: 5.5 in.
• Width: 5.5 in.
• Height: 2 in.
• Color: Silver
• Composition: Galvanized Steel, Intumescent
• Material: Galvanized Steel
• Firestop Device Type: Fire-Rated Pathway
