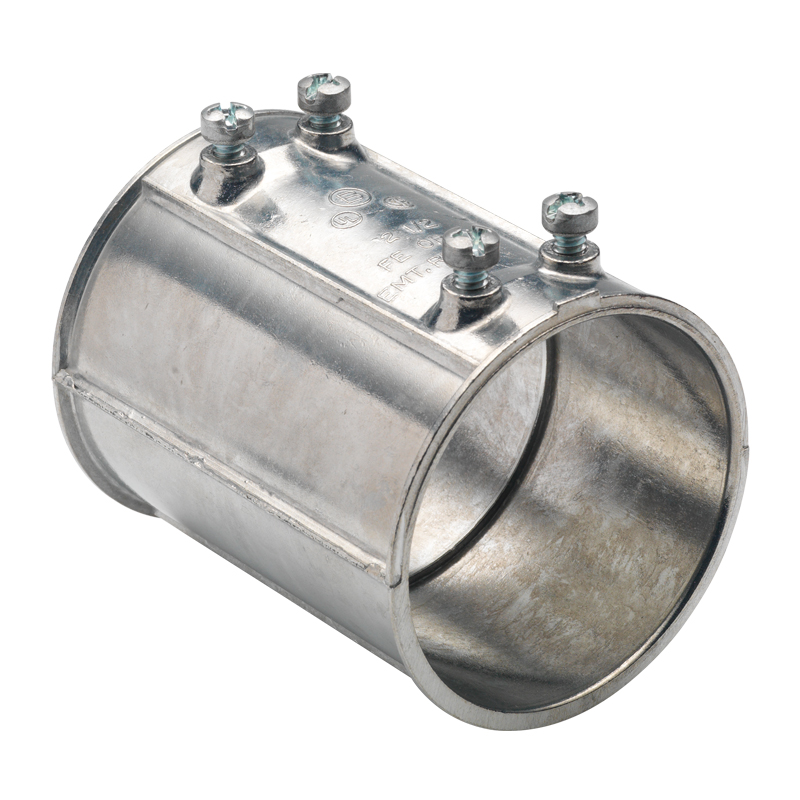

Features

• Die-Cast Zinc Body - The die-cast zinc body is naturally resistant to corrosion for long-term use in any environment
• Concrete Tight - The coupling is perfect for applications where concrete aggregate could abrade conductor insulation or effectively reduce the area inside the raceway
• Tri-Drive Set Screws - The coupling comes equipped with set screws to hold both ends of EMT conduit securely in place

Certifications and Standards

• UL-514B

Specifications

• Country of Origin: United States
• Length: 5.75 in
• Width: 3.5 in
• Weight: 165 lbs
• BPT Trade Size: 4"
• Field Application: Used to join two lengths of EMT. 1/2" through 1 1/4" Concrete-tight, 1 1/2" thru 4" concrete-tight when taped. 2" thru 4" suitable for use with aluminum or steel EMT.
• FINISH: Ball burnished, mirror smooth
• MATERIAL: Zinc Die Cast
• NEMA Rating: FB-1
• UL File #: E24001
