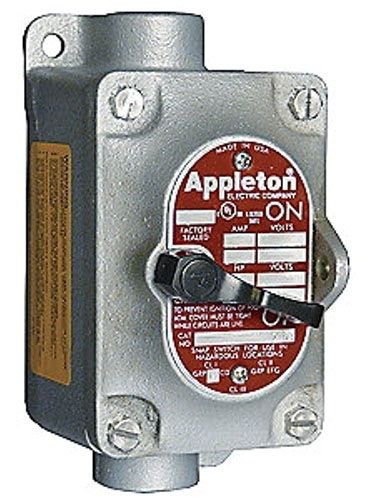

Features

• Explosionproof, Dust-Ignitionproof
• Ideal for Installation in Chemical and Petrochemical Plants, Refineries and Other Process Industries
• Enclosures have External Mounting Lugs for Ease of Mounting
• Smooth, Rounded Integral Bushing in Each Hub Protects Conductor Insulation
• Enclosures Furnished with Internal Ground Screw
• Smooth Ground Mating Surfaces Assure Flame Tight Joint Between Cover and Mounting Enclosure
• Stainless Steel Hex Head Cap Screws for Attaching Cover to Mounting Enclosure
• Choice of Front Operating or Side Rocker Arm Handle
• Each may be Locked in On/Off Position
• Each Handle has Close Tolerance Threaded Stainless Steel Shaft to Meet Explosionproof Requirements
• Factory Sealed Switches are Designed to UL Standard So that any Arcing Devices Contained within a Explosionproof Labyrinth Switch

Additional Information

• Application Chemical Plant, Petrochemical Plant, Refinery
• Power Rating 1 HP at 120 Volt AC, 2 HP at 240 Volt AC
• Overall Dimension 3.72 Inch Width x 5.31 Inch Depth x 6.81 Inch Height
• Includes Internal Ground Screw
• Application Lighting and Light Power Load, Chemical/Petrochemical Plant, Refinery
• Applicable Standard NEC/CEC

Specifications

• Type: Feed Through
• Constructional Feature: Explosionproof, Dust-Ignitionproof
• Voltage Rating: 120 to 277 Volt AC
• Current Rating: 20 Amp
• Contact Configuration: 1-Pole
• Operator Type: Front Operated Lever
• Box Type: 1-Gang
• Hub Size: 3/4 Inch
• Enclosure Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Actuator Material: Nylon 6/6
• Enclosure: Class I Div 2 Group B
• Approval: UL (Canada and US), CSA
• Series/Model: EDSC
