Features

• Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming.
• Provides over 250 lighting levels so you can create the perfect light for any activity
• Works with up to 150-Watt of dimmable LED/CFL bulbs or 600-Watt of incandescent/halogen bulbs
• Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
• Can be used in single-pole or 3-Way applications with a mechanical switch.
• Rocker switch turns lights on/off to favorite light level. Discreet slider dims and brightens the lights
• Installs in as little as 15 minutes in homes of all ages – NO NEUTRAL REQUIRED

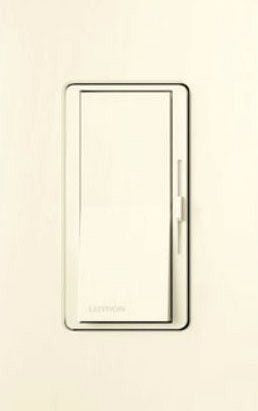

• Includes (1) Diva LED+ (formerly C.L) Dimmer Switch; coordinating wallplate sold separately
• Controls 150 W dimmable LED/CFL (screw-base), 600 W incandescent, or halogen loads
• Paddle turns on/off
• Slide up to brighten, down to dim
• Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.

Standards and Certifications

• UL
• CSA
• NOM

Specifications

• Application: Lighting Control
• Environmental Conditions: Indoor use only
• Frequency Rating, Maximum: 60.000000000000000 Hz
• Number of Poles: 1
• Type: Dimmer, 3-way/single-pole
• Voltage Rating: 120
• Wattage: 600.000000000000000 W
• Actuator: Paddle switch
• Color: Biscuit
• Connection: Wire Leads
• Enclosure: Plastic
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Wallbox
• Operating Temperature: 32 to 104 F
• Size: 4.69 x 2.94 in
