Specifications

• Length: 11.950 IN
• Height: 4.500 IN
• Country of Origin: TW
• Width: 8.100 IN
• Volume: 2.335 LB
• Volume: 435.5775 CI
• Amperage Measurement: 600, 6000μA; 60, 600mA; 6, 10A
• Temperature Rating: K Type, -58 To 1832°F (-50 To 1000°C)
• Measurement Category: CAT IV, 1000 V
• Standard: CAT IV, C/UL US Listed, TRUE RMS, CE Listed
• Frequency Measurement: 15Hz- 50kHz Sine Wave, 5Hz - 1MHz Logic Level Square Wave
• Type: Digital

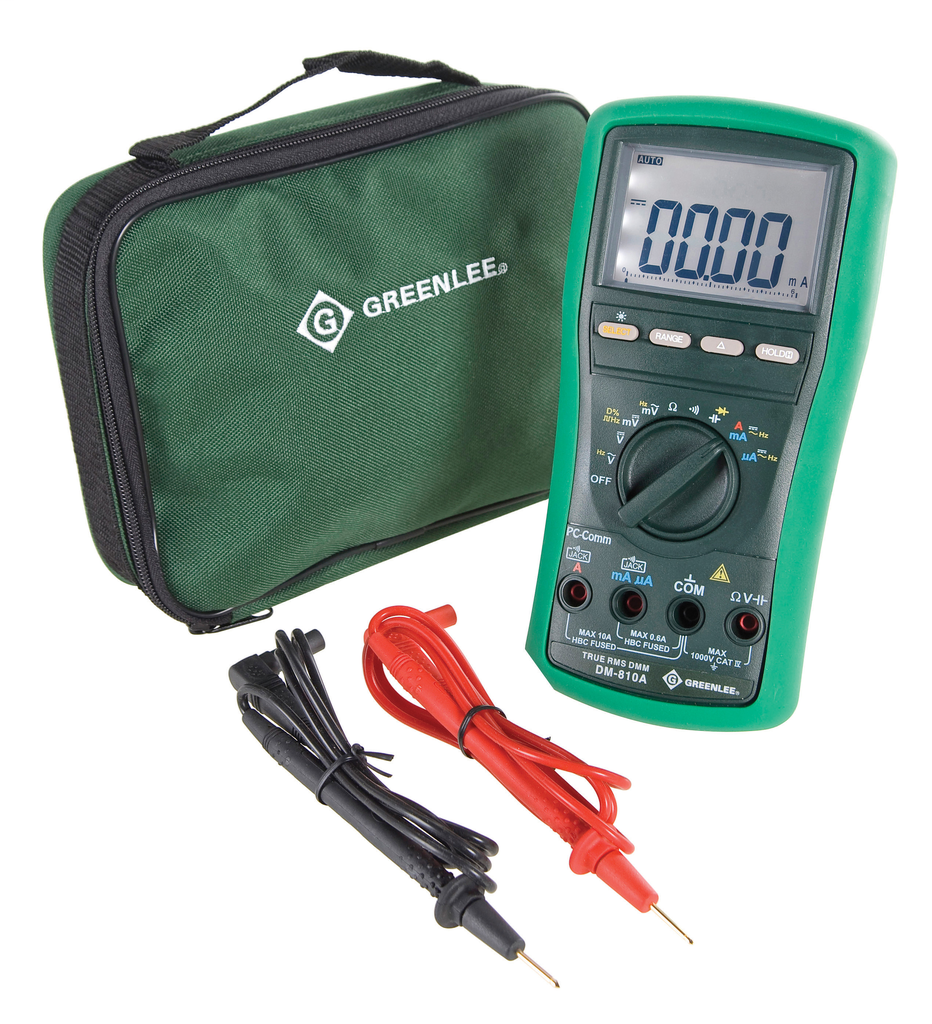

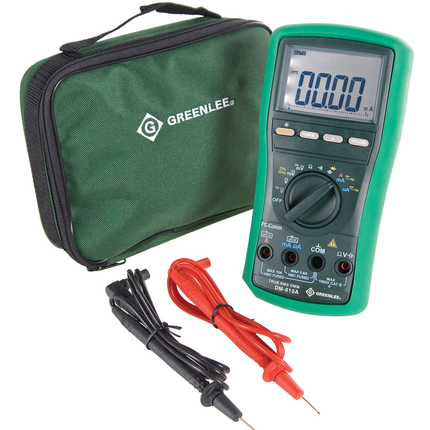

• Replacement Part: TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A)
• Resistance Measurement: 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ
• Includes: (1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400°F/204°C Max), Test Leads, Protective Boot, Carrying Case
• Display: Backlit LCD With Dual 10,000 Count
• Capacitance: 60, 600nF; 6, 60, 600μF; 6, 25 mF
• Conductance: 99.99 nS
• Voltage Measurement: 60, 600 mV, 9.999, 99.99, 999.9 V
• Battery: (1) 9 V
