Features

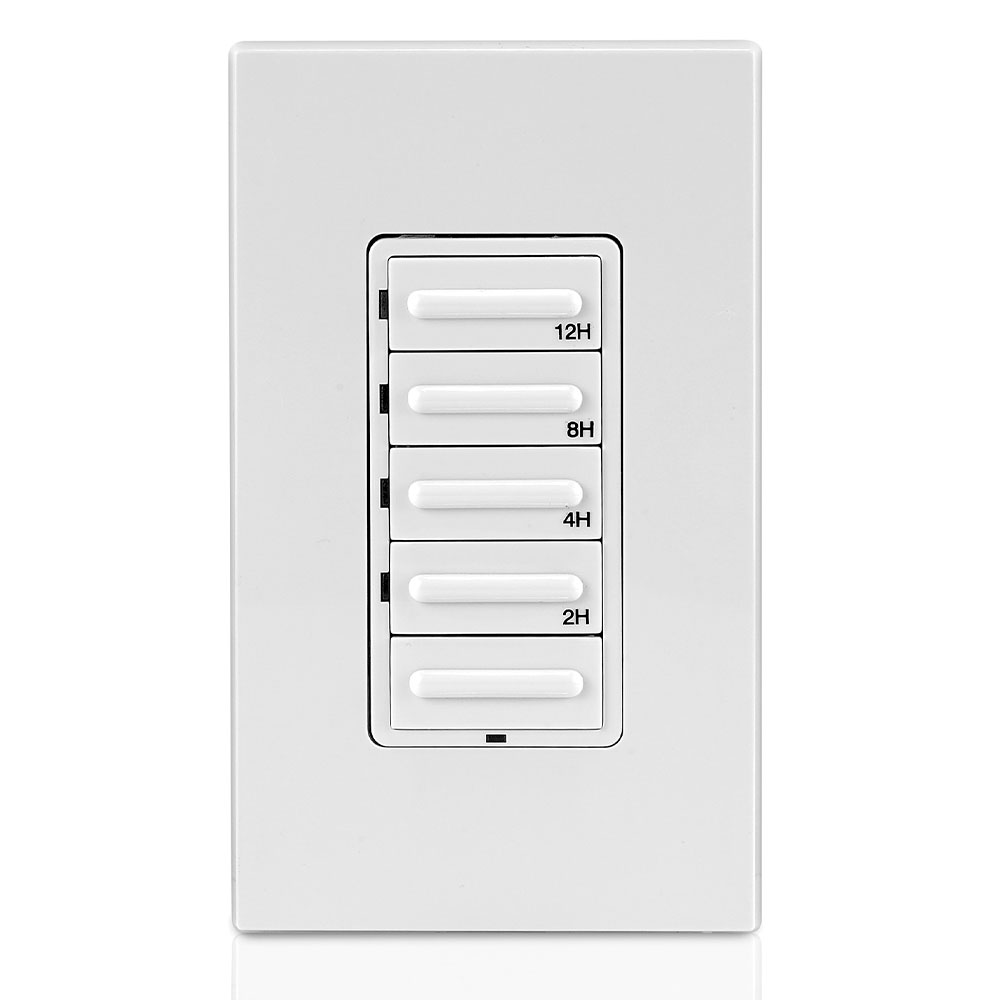

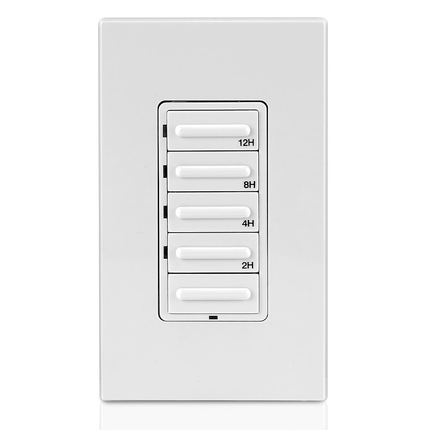

• The LTB12-1LZ, Leviton Decora Timer Switch offers advanced features, superior accuracy and contemporary aesthetics. It provides convenient timed control of lighting and motor loads in homes, offices, schools, libraries and other small commercial applications. It is ideal in automating control of heat lamps, hot tubs, attic and exhaust fans. This timer allows users to simply press and hold the top button to initiate override or press and hold two buttons to convert the 12-hour timer into other available time intervals. It has soothing green LED locator lights and offers three colors in one box, plus single pole or 3-way capability (with VP0SR).
• Easy operation with four preset buttons and one "OFF" button
• 1800Watt Incandescent, 600W CFL, 5A LED, 20Amp Resistive/Inductive, 1 Horsepower at 120 volts
• Simple press and hold override function
• Flexibility to convert the 12-hour timer to other available timer intervals
• Single pole and 3-way with a Vizia + Switch Remote (VP0SR)
• Three colors in one box: White, Ivory and Light Almond
• Soothing green LEDs
• Neutral wire required for installation

Color Variations

• White

Specifications

• Country of Origin: China
• RoHS Compliant: Yes

Product Features

• Color: White, Ivory, Light Almond
• Feature: Single-Pole and 3-Way with a Vizia + Switch Remote
• Ordering Notes: Wallplate Sold Separately
• Pole: 1
• Preset: Yes
• Type: Decora Preset Countdown Timer
• Voltage: 120 VAC

Warranty

• Warranty: 5-Year Limited
