CU TP 1HL LUG LNG BRL No6 No10B BLU
SKU: #57875
Part: #54904BE
UPC: 786210190228
CU TP 1HL LUG LNG BRL No6 No10B BLU
SKU: #57875
Part: #54904BE
UPC: 786210190228
Next day delivery
Description

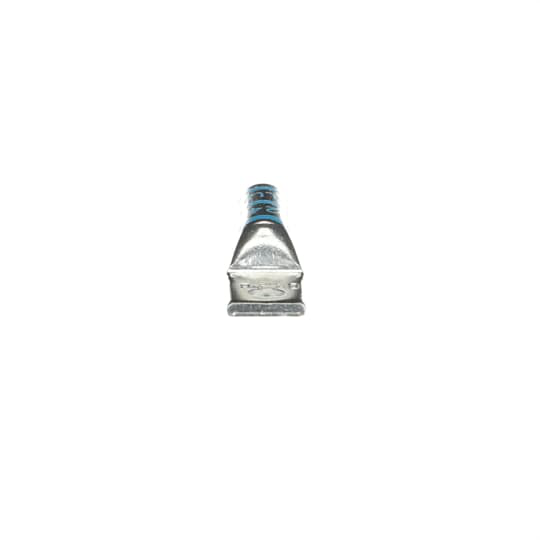

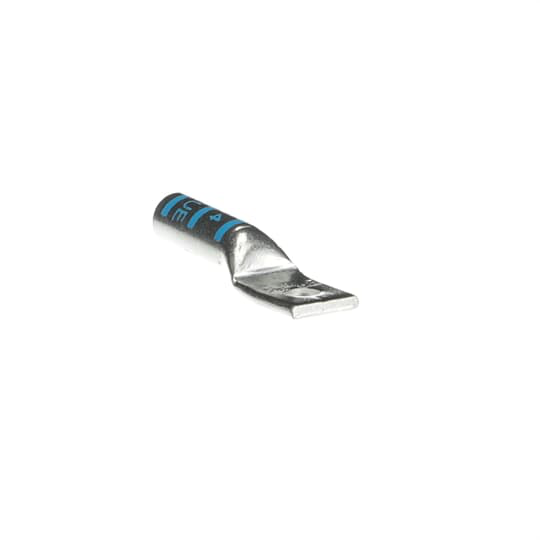

CU TP 1HL LUG LNG BRL No6 No10B BLU – Copper One-Hole Lug
The CU TP 1HL LUG LNG BRL No6 No10B BLU is a copper one-hole lug designed for secure electrical connections in wire and cable applications. This long barrel lug features a blind end and is tin plated for corrosion resistance, making it suitable for use by electrical distributors, lighting solutions providers, and switchgear suppliers. Rated for a maximum voltage of 35 kV, it is optimized for #6 AWG wire size and accommodates #10 bolt size connections. Its robust construction ensures reliable performance in electrical installations requiring high conductivity and durability.
- Material: Copper
- Finish: Electro tin plated
- Wire Size: #6 AWG
- Bolt Size: #10
- Number of Holes: 1
- Voltage Rating: 35 kV
- Die Code: 24
- Die Color Code: Blue
- Insulation: None
- Product Weight: 1.5 lbs
- Dimensions (L x W x H): Approx. 1.65 in x 0.65 in x 0.44 in (41.9 mm x 16.5 mm x 11.2 mm)
- Standards: UL E9809 certified
- Country of Origin: Mexico
Specifications
- High-conductivity wrought copper construction for optimal electrical performance
- Long barrel design for secure wire termination
- Tin plating enhances corrosion resistance and durability
- Color-coded die for easy identification and installation
- Blind end design prevents wire damage during installation
- Compatible with compression tools and dies per manufacturer guidelines
- Suitable for electrical distributors and lighting solution applications
- Recommended for use in wire management and connectivity systems
Features
- Technical Data Sheet 54904BE (PDF)
