Features

• Brass Construction - The highly versatile malleable brass is durable, tolerates high temperatures and resists corrosion

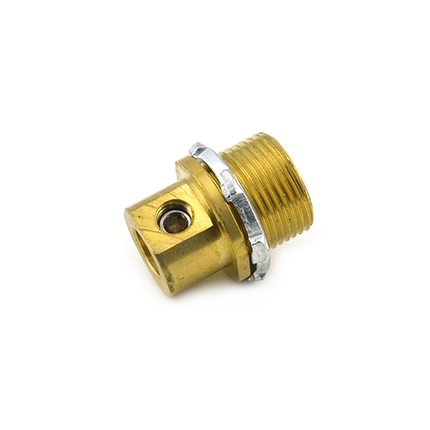

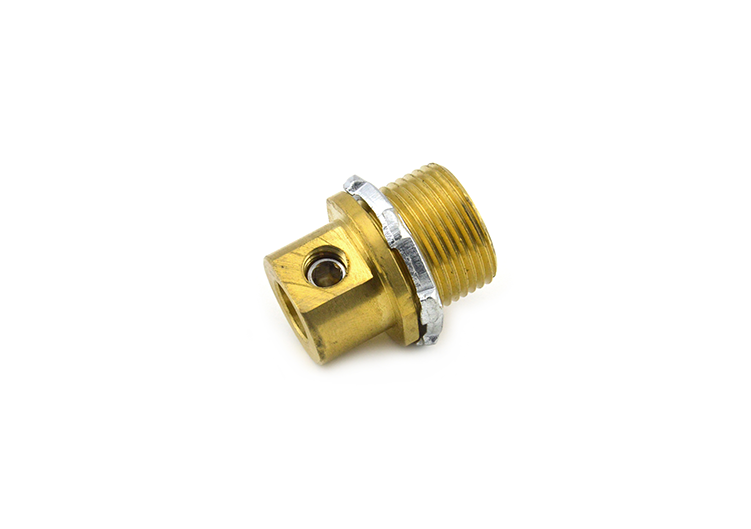

• Mighty-Bond® - The patented Mighty-Bond precision-machined brass body with stainless steel set screws is low-cost and easy to install
• Professional Performance - All Bridgeport fittings meet OSHA-recognized NRTL-listed electrical standards and the stringent bonding and grounding requirements of 514B or 467 cULus
• Conductor Range - Copper conductors - #4 to #2 AWG Solid, #4 to 3/0 AWG Stranded; Aluminum conductors - #2 to #3/0 AWG Stranded.

Certifications and Standards

• UL-467

Specifications

• Country of Origin: China
• Length: 1.25 in
• Width: 0.56 in
• Depth: 0.48 in
• Weight: 5.95 lbs
• BPT Trade Size: 3/4"
• Field Application: Low cost and easy to use coupling for use with rigid conduit and for securing grounding conductors at the enclosure in accordance with National Electrical Code (NEC) Article 250.8. Selection of conductor size to be made per NEC Article 250.66. Suitable for service entrance grounding. Product advantages include: • Precision machined brass body with zinc die cast locknut and stainless steel set screw • Professional installation • Serrated locknut removes residual paint from box • Use with rigid metallic or PVC rigid conduit • Low profile flange on inside of box clearly marked with application guideline for ease in AHJ inspection • UL Listed for grounding per UL467 Patented. US Patent D657,316; 7,927,157. Wire Capacity: Copper: 4 to 2 Solid, 4 to 3/0 Stranded Aluminum: 2 to 3/0 Stranded
• FINISH: Plain
• MATERIAL: Brass-Body, Stainless Steel 3/16 Allen Hex Screw, 3/4" Steel Locknut
• NEMA Rating: FB-1
• UL File #: E20412
• WARRANTY: 1 Year
