Specifications

General Information

• ANSI Code: M98-M143
• Lamp Type: 70W MH
• Number of Lamps: 1 piece/unit
• Circuit Type: R-HPF
• Ballast Type: Magnetic HID
• Base Model: 71A5237BP
• Core Size: 2 5/8 x 2 3/16
• Suitable For Outdoor Use: Yes
• Ignitor Catalog Number: INTEGRAL
• Ignitor Temperature Rating: 125°C
• Capacitor Value: 8 MFD
• Capacitor Catalog Number: 7C080L30RA
• Capacitor Requirements: 280V
• Capacitor Temperature Rating: 105°C
• Capacitor Diameter/Oval Dimensions: 1.25 in
• Capacitor Height: 2.75 in
• Automatic Restart: No

Operating and Electrical

• Input Voltage: 277 V
• Input Frequency: 60 Hz
• Input Current (Open Circuit): 0.8 A
• Input Current (Starting): 0.5 A
• Input Current (Short Circuit): 0.2-0.45 A
• Secondary Short Circuit Current: 0.85-1.25 A
• Constant Wattage Deviation: 10%
• Ballast Factor (Nom): 1
• Power Factor (Nom): 0.90
• Open Circuit Voltage: 277 V
• Input Current (Nom): 0.32 A A
• Input Power (Nom): 85 W
• Rated Lamp Power: 70 W

Wiring

• Wire Striplength: 0.5 mm
• Wire Length by Color: 12"
• Wire Type: Stranded
• Remote Wiring Configuration Allowed: Yes
• Max Ballast-Lamp Distance Remote Wiring: 2'
• Recommended Fuse Value: 2 A

Approval and Application

• Open Circuit Voltage Test (Volts): 260-290 V
• Approval Marks: ULR
• Temperature Marking: A
• UL Recognized: Yes
• Hipot Test (1 Minute): 2000 V
• Hipot Test (2 Seconds): 2500 V
• UL Insulation Class: H(180°C)
• UL Temperature Code: 1029A

Product Data

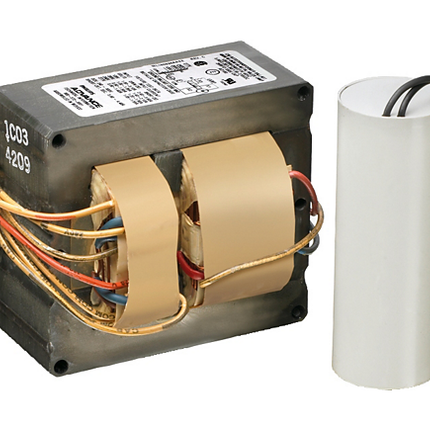

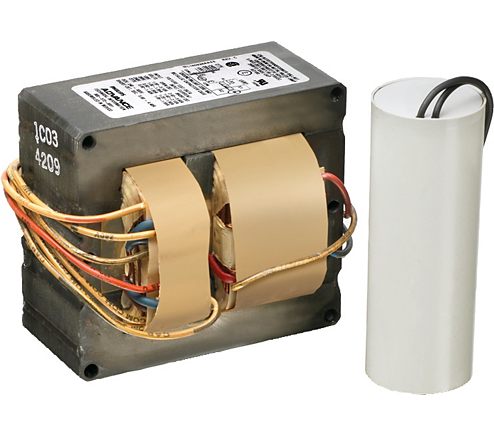

• Order product name: CORE & COIL HID 71A5237500DBP
• EAN/UPC - Product: 781087097526
• Order code: 913700566509
• Numerator - Quantity Per Pack: 1
• Numerator - Packs per outer box: 16
• Material Nr. (12NC): 913700566509
• Net Weight (Piece): 1.484 kg
