Features

• Segmented chuck provides high mechanical pullout performance, will not cut or damage cord jacket.
• Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC. Class I, Div 2; Class II, Div 1 & 2; Class III, Div 1 & 2; NEC 501-4(b), 502-4(a)(b), 503-3(a)(b)
• Meets Coast Guard CG293

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39121431 Cable gland connector
• IGCC: 4601 Cable gland connector
• Brand Name: T&B

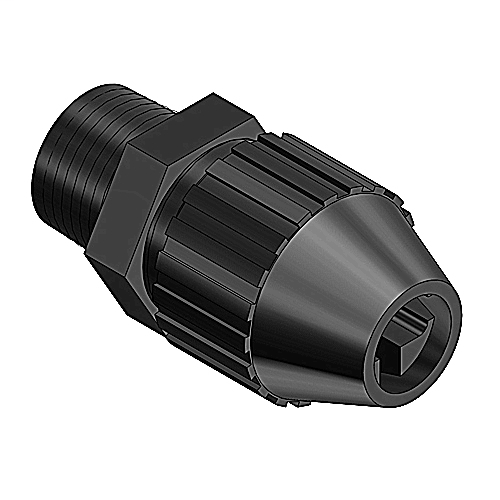

• Type: Cord Connectors-Straight
• Special Features: Hand Tightens, No Tools Needed for Assembly
• Application: To Connect Flexible Cord to a Box or Enclosure and Provide Adequate Strain Relief.
• Standard: UL E13938, CSA
• Size: 1/2 Inch
• Conductor Range: 0.400 to 0.560 Inch
• Material: Nylon
• Color: Black
• Temperature Rating: -34 to +105 Degrees C

European Specifications (ETIM)

• ETIM: EC000441 Cable screw gland
• Thread type: NPT
• Nominal thread size inch/gas pipe thread: 1/2 inch
• Thread length: 15.08mm
• Suitable for cable diameter: 10.16-14.224mm
• Material: Plastic
• Material quality: Polyamide (PA)
• Colour: Black
• Model: Straight
• Operating temperature: -34-+105°C

Packaging

• Inner Quantity: 25
• Inner Dimensions (inches): 6x5x4
• Outer Quantity: 100
• Outer Dimensions (inches): 12.7x9x5.8
• Weight Uom: 5.69 lbs. per 100
