Specifications

General

• Application: For Heavy Duty Applications And Used At Higher Voltages Up To 35 KV
• Color Code: Pink

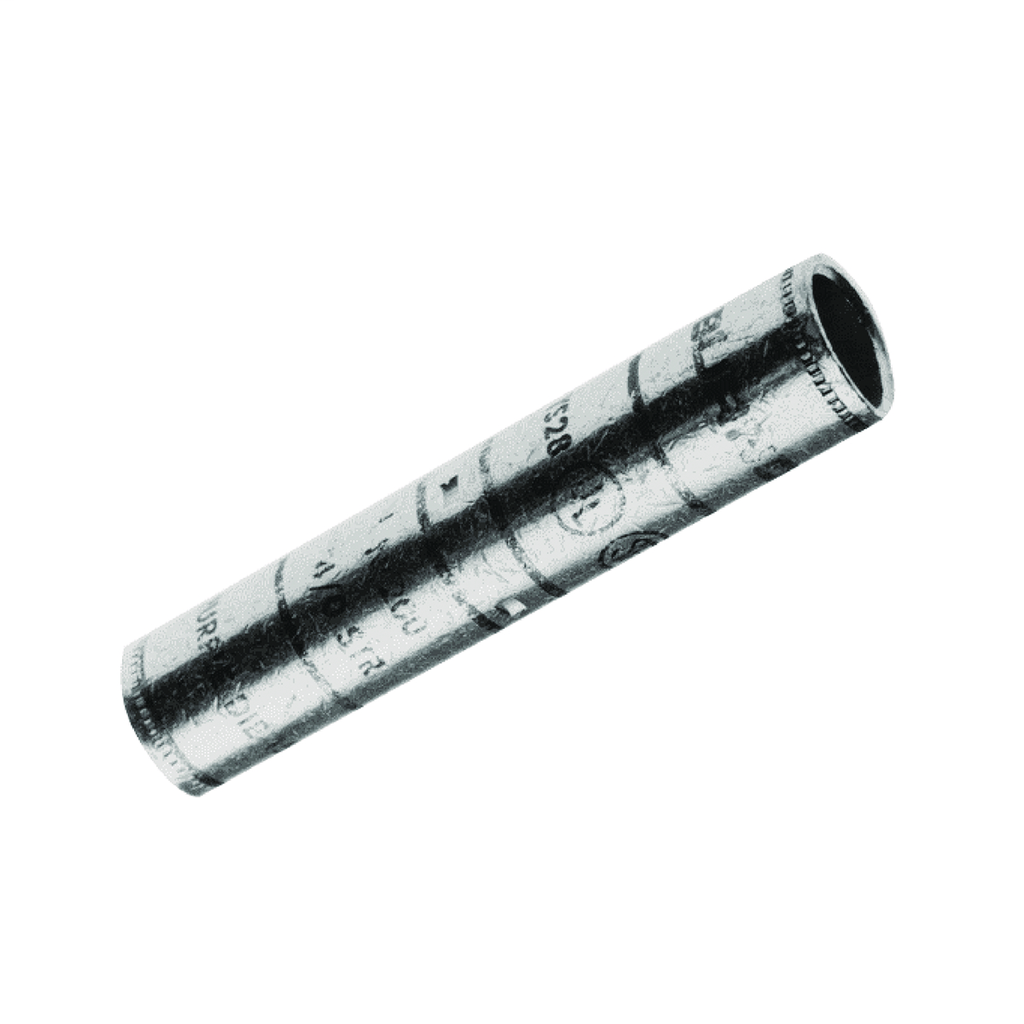

• Connector Type: Splice
• Feature - Barrel Style: Chamfered
• Feature - Barrel Type: Long
• Material: Copper
• Plated: Y
• Plating Type: Tin - Electro Plated
• Sub Brand: HYLINK
• Trade Name: HYLINK™
• Type: YS, Long Barrel
• UPC: 781810507506
• UPC 12 Digit: 7818105075066

Dimensions

• Dimension - B Length inch: 1.34 in
• Dimension - L Length Overall mm: 78 mm
• Dimension - Length Overall inch: 3.08 in
• Dimension - Strip Length inch: 1-7/16

Electrical Ratings

• Rating - KVA: 35 kV
• Rating - Minimum Voltage: 600
• Voltage - Maximum: 35000

Conductor Related

• Conductor - Copper Str Navy Size: 100 (61) Navy
• Conductor - Copper Str Size: 1/0

Certifications and Compliance

• Certification - CSA Approved: Yes
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): UL468A-468B
• Standards - Industry Standards Met: UL468A-468B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes

Logistics

• Minimum Pack Quantity: 1
