Features

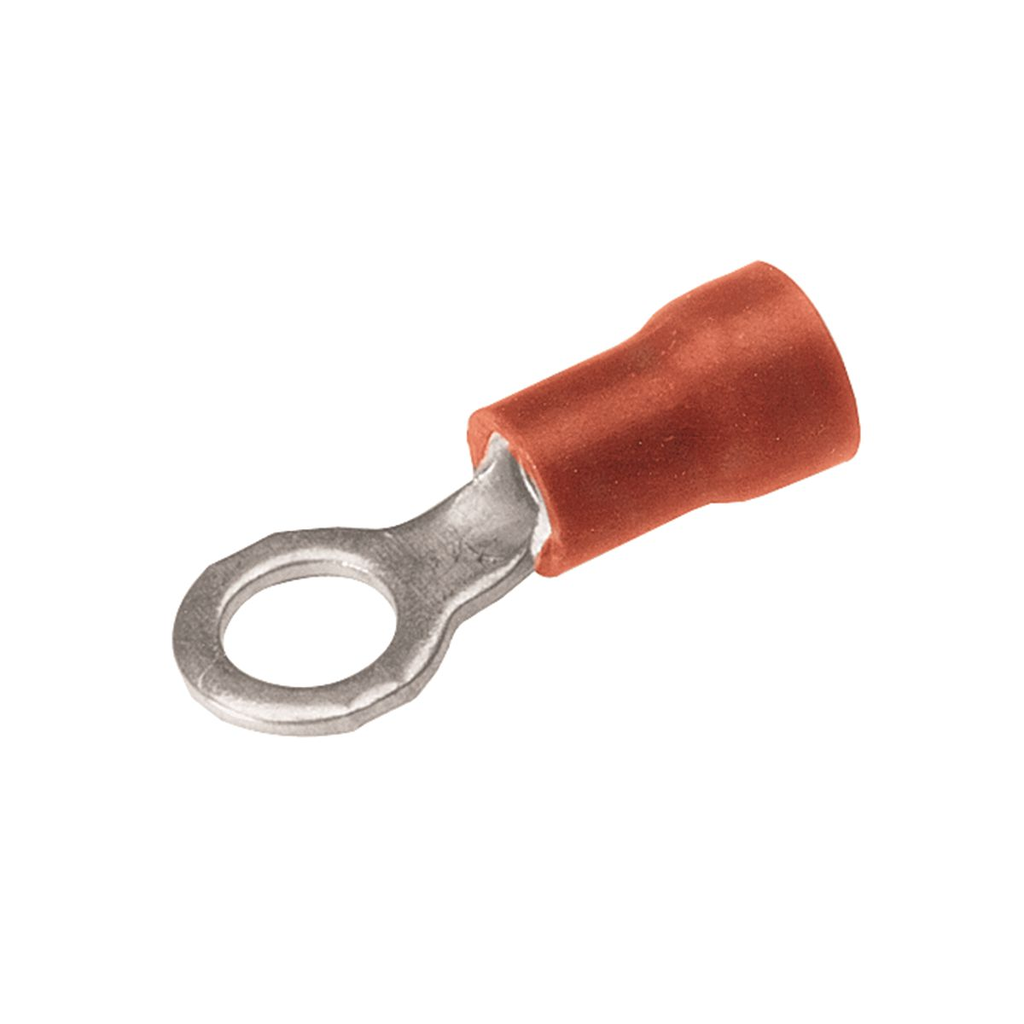

• VINYLUG Type TP Is Designed For Commercial And Light Duty Industrial Control And Power Circuit Applications, Supplied With An Expanded Polyvinyl Chloride (PVC) Insulation Shroud, Many Tongue Variations And Rated 600 V Makes TP Terminals Versatile And Economical, 105 DEG C Maximum, Expanded Insulation Support Accepts Standard And Large Wire Diameters: Lowers Inventory Requirements, Permits Greater Flexibility And Provides Insulation Support, Funnel Entry: Easy Wire Insertion, Manufactured Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Deep V Groove Serrations In The Inner Barrel: Provides Added Holding Strength And Better Conductivity, Electro-Tin Plated: Provides Durable Long-Lasting Corrosion Resistance, Insulation Diameter (maximum): 0.145 IN, Bulk Catalog Number: BA16E10, Temperature Rating: 105 DEG C Maximum, Installation Tool: Plier Type: Y10D, Y10-22 Tool, Ratchet: MR8-89-1, MR15, MR8-G96 Tool, Tape Mounted Catalog Number: BA16E10M, Color Code: Red, Wire Strip Length: 13/64 IN, Wire Insulation Grip: No, Finish: Electro-Tin Plated

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• ChannelSightWidgetId: 705
• Conductor - Copper Solid Size: 20 ;18 AWG;17 AWG;16 AWG
• Conductor - Copper Solid Size Range: 20 -16 AWG
• Conductor - Copper Str Size: 20 AWG;18 AWG;16 AWG
• Conductor - Copper Str Size Range: 20 AWG - 16 AWG
• Dimension - Bolt Size fraction: #8 - #10
• Dimension - Diameter Max Size inch: 0.15 in
• Dimension - L Length Overall mm: 22 mm
• Dimension - Length Overall inch: 0.85 in
• Dimension - Pad Width inch: 0.31 in
• Dimension - Strip Length inch: 13/64
• Dimension - Stud Size inch: #8;#10
• Dimension - Z inch: 0.26 in
• Width: 0.31 in
• Each - Width: 0.31 in
• Feature - Barrel Style: Shrouded
• Industry Standard(s): UL467
• Insulation Type: Vinyl
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Ring
• Plated: Y
• Plating Type: Tin
• Product Type: TERMINAL
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• Trade Name: VINYLUG™
• Application: For Commercial And Light Duty Industrial Control And Power Circuit Applications
• Insulation: Y
• Special Features: Features: VINYLUG Type TP Is Designed For Commercial And Light Duty Industrial Control And Power Circuit Applications, Supplied With An Expanded Polyvinyl Chloride (PVC) Insulation Shroud, Many Tongue Variations And Rated 600 V Makes TP Terminals Versatile And Economical, 105 DEG C Maximum, Expanded Insulation Support Accepts Standard And Large Wire Diameters: Lowers Inventory Requirements, Permits Greater Flexibility And Provides Insulation Support, Funnel Entry: Easy Wire Insertion, Manufactured Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Deep V Groove Serrations In The Inner Barrel: Provides Added Holding Strength And Better Conductivity, Electro-Tin Plated: Provides Durable Long-Lasting Corrosion Resistance, Insulation Diameter (maximum): 0.145 IN, Bulk Catalog Number: BA16E10, Temperature Rating: 105 DEG C Maximum, Installation Tool: Plier Type: Y10D, Y10-22 Tool, Ratchet: MR8-89-1, MR15, MR8-G96 Tool, Tape Mounted Catalog Number: BA16E10M, Color Code: Red, Wire Strip Length: 13/64 IN, Wire Insulation Grip: No, Finish: Electro-Tin Plated
• Standard: UL467
• Sub Brand: VINYLUG
• Type: Ring Tongue
• Conductor Size: 22 - 16 AWG
• Conductor Type: CU C Str-Size;CU C Solid-Size
• Connector Type: Ring Terminal
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B57
• Description - Invoice: RING- 22- 16 AWG- VINYL, 10 STUD
• Freight Class Code: 16027000
• Harmonization Code: 8536904000
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 100 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B57BKJF
• Cable Insulation Diameter Maximum: 0.145 in
• UL Listed: Yes
• Color Code: Red
• Material: Copper
• Voltage - Maximum: 600 V
• Base Unit of Measure: EA
• BOX SIZE: 0.000x0.000x0.000 (in)
• Carton - Gross Weight per Pack: 0.000 lb.
• Carton - Number of Sub Packs: 1200
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810714843
• Carton - Total Units: 1200 EA
• Case - Number of Sub Packs: 12
• Case - Pack Description: Case (ISO code = 'CA' for HEP)
• Case - SCC-14 Next Lower Level Sub Pack: 30781810714844
• Case - Total Units: 1200 EA
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 0.2 lb.
• Package - GTIN - Package: 30781810714844
• Package - Number of Sub Packs: 100
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810714843
• Package - Total Units: 100 EA
• Package Height: 4.25 in
• Package Length: 2.06 in
• Package Quantity: 100 EA
• Package Weight: 0.2 lb.
• Package Width: 2.06 in
• Pallet - GTIN - Package: 70781810714842
• Pallet Height: 44.750 in
• Pallet Length: 48.000 in
• Pallet Weight: 623.400 lb.
• Pallet Width: 40.000 in
• Standard Package Quantity: 100

Certifications

• CSA Approved: Yes
• cULus: No
• ETL: No
• UL Recognized: No
• EU RoHS Indicator: Yes
