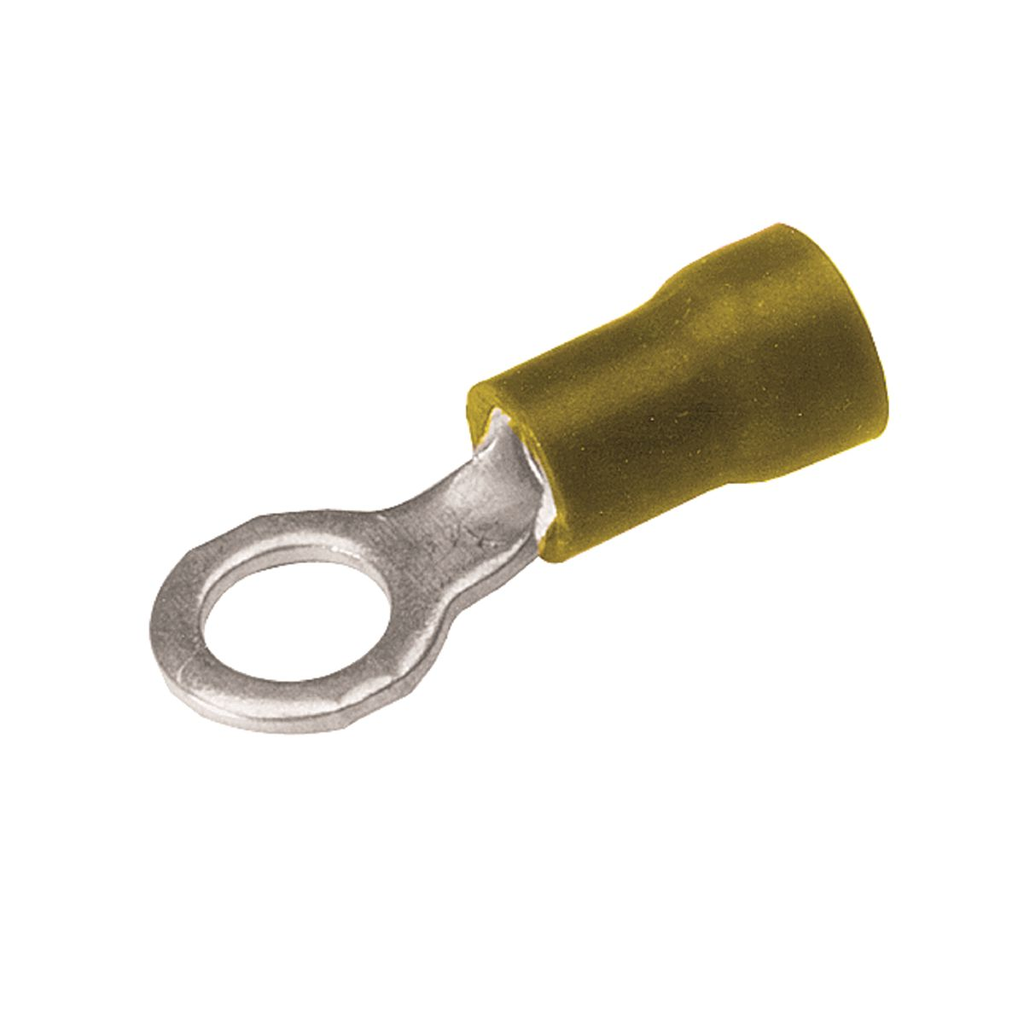

Features

• Expanded Insulation Support Accepts Standard And Large Wire Diameters, Lowers Inventory Requirements, Permits Greater Flexibility And Provides Insulation Support, Funnel Entry, Easy Wire Insertion, Manufactured Of Pure Electrolytic Copper, Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Deep V Groove Serrations In The Inner Barrel, Provides Added Holding Strength And Better Conductivity, Electro-Tin Plated, Provides Durable Long-Lasting Corrosion Resistance, VINYLUG Type TP Is Designed For Commercial And Light Duty Industrial Control And Power Circuit Applications. Supplied With An Expanded Polyvinyl Chloride (PVC) Insulation Shroud, Many Tongue Variations And Rated 600V Makes TP Terminals Versatile And Economical, Wire Strip Length: 19/64 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Plier Type: Y10-22, Y10D Or Ratchet Tool: MR8-89-1, MR15, M8ND With N10HET-23, TFM Tool With DFM1D5 Die, Wire Insulation Grip: No, Temperature Rating: 105 DEG C Maximum, Die Index: Hand Tools Element A

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• ChannelSightWidgetId: 705
• Dimension - B Length fraction: 17/50 in
• Dimension - B Length inch: 0.34 in
• Dimension - Bolt Size fraction: #8
• Dimension - Diameter Max Size inch: 0.28 in
• Dimension - Hole Size fraction: 8/47
• Dimension - Hole Size inch: 0.17 in
• Dimension - L Length Overall mm: 26 mm
• Dimension - Length Overall inch: 1.03 in
• Dimension - Pad Width inch: 0.35 in
• Dimension - Strip Length inch: 19/64 in
• Dimension - Stud Size inch: #8
• Dimension - Z inch: 0.26 in
• Width: 0.36 in
• Each - Width: 0.36 in
• Feature - Barrel Style: Shrouded
• Industry Standard(s): UL467
• Insulation Type: Vinyl
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Ring
• Plated: Y
• Plating Type: Tin
• Product Type: TERMINAL
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• Trade Name: VINYLUG™
• Application: For Commercial And Light Duty Industrial Control And Power Circuit Applications
• Insulation: Y
• Special Features: Features: Expanded Insulation Support Accepts Standard And Large Wire Diameters, Lowers Inventory Requirements, Permits Greater Flexibility And Provides Insulation Support, Funnel Entry, Easy Wire Insertion, Manufactured Of Pure Electrolytic Copper, Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Deep V Groove Serrations In The Inner Barrel, Provides Added Holding Strength And Better Conductivity, Electro-Tin Plated, Provides Durable Long-Lasting Corrosion Resistance, VINYLUG Type TP Is Designed For Commercial And Light Duty Industrial Control And Power Circuit Applications. Supplied With An Expanded Polyvinyl Chloride (PVC) Insulation Shroud, Many Tongue Variations And Rated 600V Makes TP Terminals Versatile And Economical, Wire Strip Length: 19/64 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Plier Type: Y10-22, Y10D Or Ratchet Tool: MR8-89-1, MR15, M8ND With N10HET-23, TFM Tool With DFM1D5 Die, Wire Insulation Grip: No, Temperature Rating: 105 DEG C Maximum, Die Index: Hand Tools Element A
• Standard: UL467
• Sub Brand: VINYLUG
• Type: Ring Tongue
• Conductor Range: #12 AWG to #10 AWG
• Conductor Size: 12 - 10 AWG
• Conductor Type: CU C Str-Size
• Connector Type: Ring Terminal
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B57
• Description - Invoice: RING- 12- 10 AWG- VINYL,0.772 IN L
• Freight Class Code: 16027000
• Harmonization Code: 8536904000
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 50 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B57BKJF
• Cable Insulation Diameter Maximum: 0.260 in
• UL Listed: Yes
• Color Code: Yellow
• Material: Copper
• Voltage - Maximum: 600 V
• Base Unit of Measure: EA
• BOX SIZE: 0.000x0.000x0.000 (in)
• Carton - Gross Weight per Pack: 0.000 lb.
• Carton - Number of Sub Packs: 600
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810710647
• Carton - Total Units: 600 EA
• Case - Number of Sub Packs: 12
• Case - Pack Description: Case (ISO code = 'CA' for HEP)
• Case - SCC-14 Next Lower Level Sub Pack: 30781810710648
• Case - Total Units: 600 EA
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 0.2 lb.
• Package - GTIN - Package: 30781810710648
• Package - Number of Sub Packs: 50
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810710647
• Package - Total Units: 50 EA
• Package Height: 4.25 in
• Package Length: 2.06 in
• Package Quantity: 50 EA
• Package Weight: 0.2 lb.
• Package Width: 2.06 in
• Pallet - GTIN - Package: 70781810710646
• Pallet Height: 44.750 in
• Pallet Length: 48.000 in
• Pallet Weight: 620.040 lb.
• Pallet Width: 40.000 in
• Standard Package Quantity: 50

Certifications

• CSA Approved: Yes
• cULus: No
• ETL: No
• UL Recognized: No
• EU RoHS Indicator: Yes
