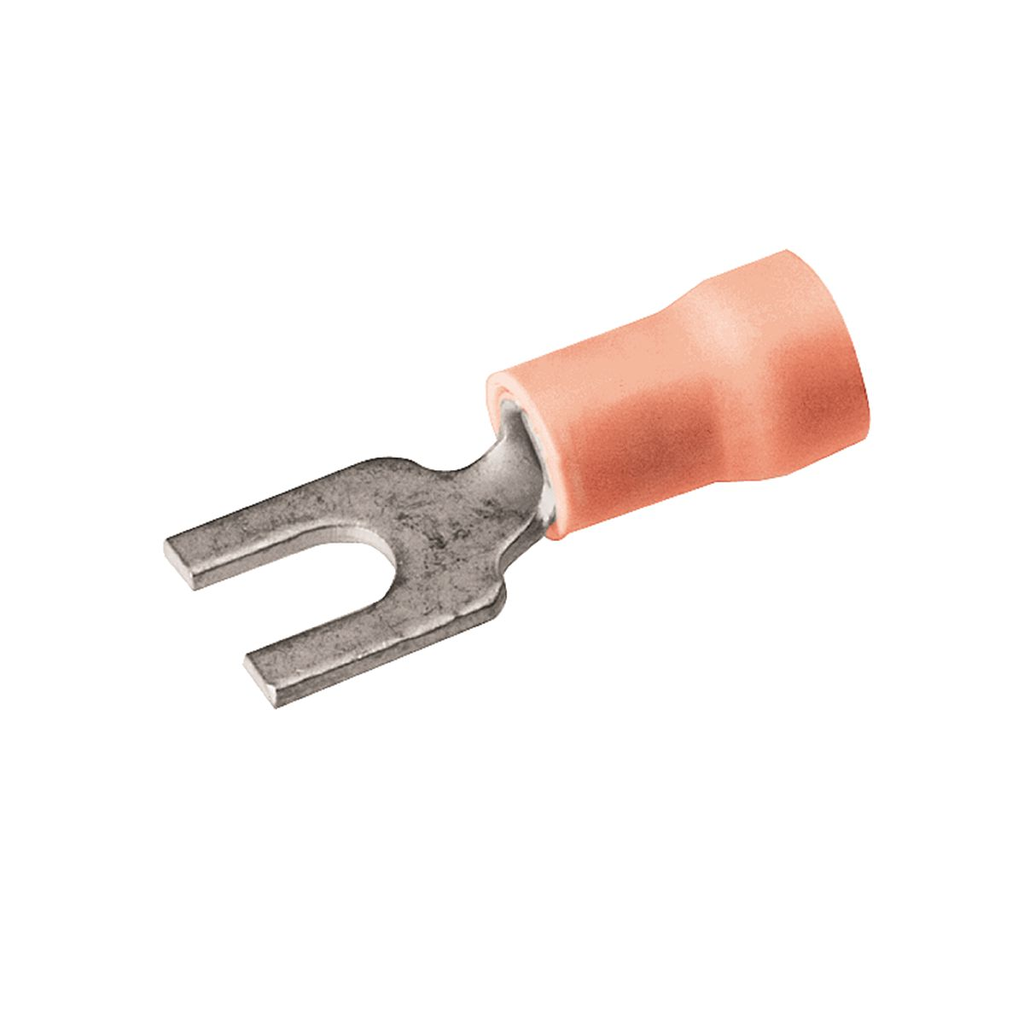

Features

• Fork terminals are constructed of pure electrolytic copper
• Long brazed seam barrel with deep V groove inner serations for optimum conductivity, reliability and holding power after crimping
• Fork tongue design for faster installation - screw only needs to be loosened for termination
• Two or more terminals can be stacked on a common stud
• Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
• Electro-tin plating for durable, long lasting corrosion resistance
• Inspection hole/skive provides an easy visual check of proper wire insertion
• 600 Volts maximum, 105°C maximum

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• ChannelSightWidgetId: 705
• Dimension - Bolt Size fraction: #6
• Dimension - Hole Size fraction: 3/20
• Dimension - Hole Size inch: 0.15 in
• Dimension - L Length Overall mm: 20 mm
• Dimension - Length Overall inch: 0.80 in
• Dimension - Pad Width inch: 0.28 in
• Dimension - Strip Length inch: 1/4 in
• Dimension - Stud Size inch: #6
• Dimension - Z inch: 0.23 in
• Width: 0.28 in
• Each - Width: 0.28 in
• Feature - Barrel Style: Shrouded
• Insulation Type: Vinyl
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Fork
• Plated: Y
• Plating Type: Tin
• Product Type: TERMINAL
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• Trade Name: VINYLUG™
• Application: For Commercial And Light Duty Industrial Control And Power Circuit Applications
• Insulation: Y
• Sub Brand: VINYLUG
• Type: TP-F
• Conductor Range: #20 AWG to #22 AWG; 16 AWG to 18 AWG
• Conductor Size: 22 - 16 AWG
• Conductor Type: CU C Solid-Size;CU C Str-Size
• Connector Type: Fork Terminal
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B57
• Description - Invoice: FORK- 22- 16 AWG- VINYL, 0.80 IN L
• Freight Class Code: 16027000
• Harmonization Code: 8536904000
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 100 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B57BKMF
• Cable Insulation Diameter Maximum: 0.145 in
• UL Listed: Yes
• Color Code: Red
• Material: Copper
• Voltage - Maximum: 600 V
• Base Unit of Measure: EA
• BOX SIZE: 0.000x0.000x0.000 (in)
• Carton - Gross Weight per Pack: 0.000 lb.
• Carton - Number of Sub Packs: 1200
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810714485
• Carton - Total Units: 1200 EA
• Case - Number of Sub Packs: 12
• Case - Pack Description: Case (ISO code = 'CA' for HEP)
• Case - SCC-14 Next Lower Level Sub Pack: 30781810714486
• Case - Total Units: 1200 EA
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 0.2 lb.
• Package - GTIN - Package: 30781810714486
• Package - Number of Sub Packs: 100
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810714485
• Package - Total Units: 100 EA
• Package Height: 4.25 in
• Package Length: 2.06 in
• Package Quantity: 100 EA
• Package Weight: 0.2 lb.
• Package Width: 2.06 in
• Pallet - GTIN - Package: 70781810714484
• Pallet Height: 44.750 in
• Pallet Length: 48.000 in
• Pallet Weight: 623.400 lb.
• Pallet Width: 40.000 in
• Standard Package Quantity: 100

Certifications

• CSA Approved: Yes
• cULus: No
• ETL: No
• UL Recognized: No
• EU RoHS Indicator: Yes
