Features

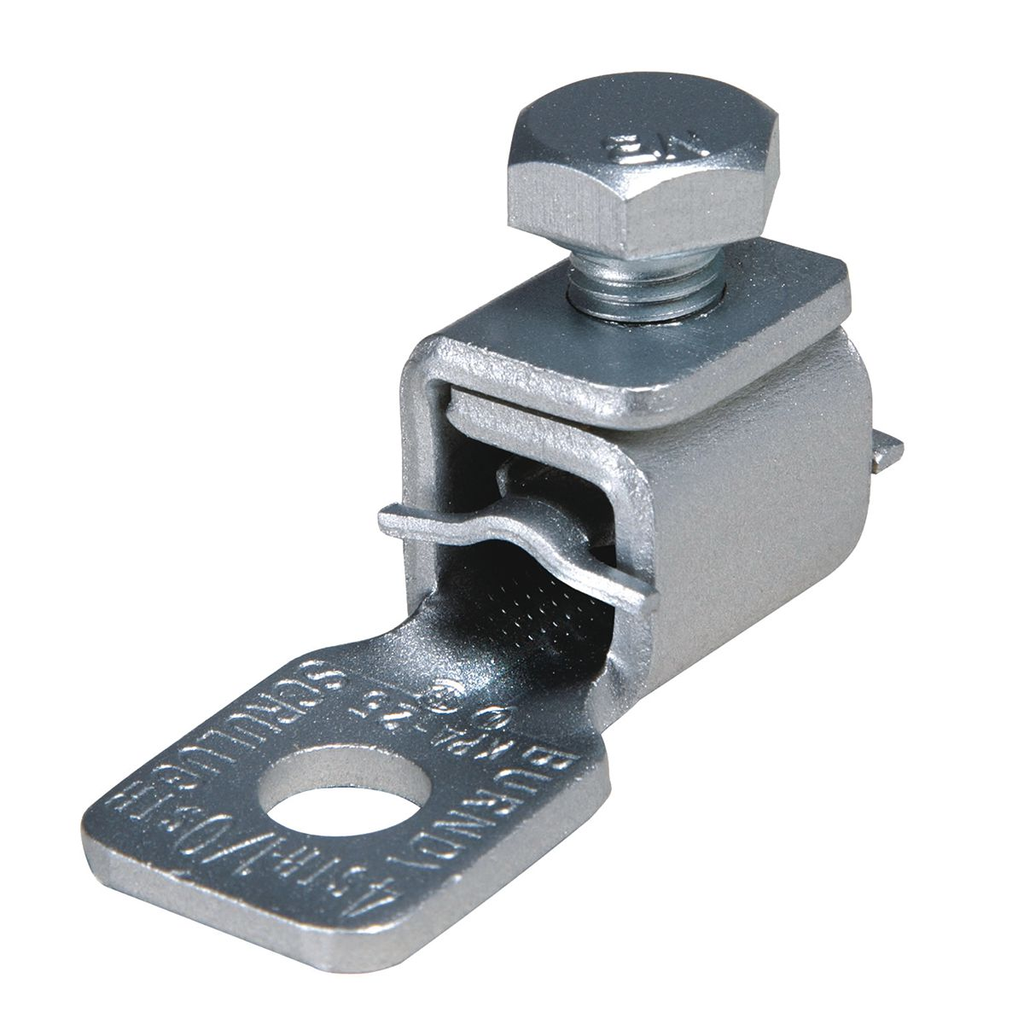

• High copper alloy terminal (tin-plated) for joining a wide range of cable to equipment pads or terminal blocks
• Tongue and body are 1-piece design, pressure bar equalizes pressure over the conductor and prevents the screw from cutting into the cable
• High Copper Alloy Tin-Plated Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications, The Tongue And Body Are A One-Piece Design, The Pressure Bar Equalizes Pressure Over The Conductor And Prevents The Screw From Cutting Into The Cable, Dimension K: 0.21 IN, Stud/bolt Hole Size: #10, Dimension D: 0.47 IN, Dimension N: 0.22 IN, Dimension T: 06 IN, Set Screw Type: Slot Robertson, Tongue Width: 0.38 IN, Installation Torque: 35 IN-LB, Length: 0.95 IN, Height: 0.72 IN

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• ChannelSightWidgetId: 705
• Conductor - Copper Solid Size: 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG
• Conductor - Copper Solid Size Range: 14 AWG-8 AWG
• Conductor - Copper Str Navy Size: 4 (1) Navy;4 (7) Navy;4 (19) Navy;4 (41) Navy;6 (7) Navy;6 (19) Navy;9 (7) Navy;9 (37) Navy;14 (7) Navy;14 (140) Navy
• Conductor - Copper Str Navy Size Range: 4 (1) Navy-14 (140) Navy
• Conductor - Copper Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG
• Conductor - Copper Str Size Range: 14 AWG-8 AWG
• Description - Slang: SCRULUG KPA
• Dimension - Bolt Size fraction: #10
• Dimension - D inch: 0.47 in
• Dimension - Height fraction: 18/25 in
• Dimension - Height inch: 0.72 in
• Dimension - Hole Size inch: 0.21 in
• Dimension - Hole Size mm: 5 mm
• Dimension - L Length Overall mm: 25 mm
• Dimension - Length Overall inch: 0.97 in
• Dimension - N inch: 0.22 in
• Dimension - Pad Width inch: 0.38 in
• Dimension - Stud Size inch: #10
• Dimension - Width inch: 0.38 in
• Dimension - Width mm: 10 mm
• Width: 0.38 in
• Each - Width: 0.38 in
• Industry Standard(s): UL 486A-486B
• Installation Torque Recommended in-lb: 25 LBS/in
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Number of Screws: 1
• Physical Attribute - Screw Type: Slot
• Plated: Y
• Plating Type: Tin
• Product Type: TERMINAL
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: CM
• Trade Name: SCRULUG™
• Application: For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks
• Special Features: Features: High Copper Alloy Tin-Plated Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications, The Tongue And Body Are A One-Piece Design, The Pressure Bar Equalizes Pressure Over The Conductor And Prevents The Screw From Cutting Into The Cable, Dimension K: 0.21 IN, Stud/bolt Hole Size: #10, Dimension D: 0.47 IN, Dimension N: 0.22 IN, Dimension T: 06 IN, Set Screw Type: Slot Robertson, Tongue Width: 0.38 IN, Installation Torque: 35 IN-LB, Length: 0.95 IN, Height: 0.72 IN
• Standard: UL 486A-486B
• Sub Brand: SCRULUG
• Type: Bolted Lugs & Terminals
• Conductor Size: 14-8 AWG
• Conductor Type: CU C Str-Size;CU C Solid-Size
• Connector Type: Pressure Bar
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B51
• Description - Invoice: SCRULUG,#8 Str-#14 Sol
• Freight Class Code: 16027000
• Harmonization Code: 8535908020
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B51BG6F
• UL Listed: Yes
• Material: Copper
• Base Unit of Measure: EA
• BOX SIZE: 3.250x2.440x2.940 (in)
• Carton - Gross Weight per Pack: 1.800 lb.
• Carton - Number of Sub Packs: 100
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810353455
• Carton - Total Units: 100
• Case - SCC-14 Next Lower Level Sub Pack: 30781810353456
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 1 lb.
• Package - GTIN - Package: 30781810353456
• Package - Number of Sub Packs: 100
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810353455
• Package - Total Units: 100 EA
• Package Height: 3.13 in
• Package Length: 2.88 in
• Package Quantity: 100 EA
• Package Weight: 1 lb.
• Package Width: 2.38 in
• Standard Package Quantity: 100

Certifications

• CSA Approved: Yes
• cULus: No
• ETL: No
• UL Listed Direct Burial: No
• UL Recognized: No
• EU RoHS Indicator: Yes
