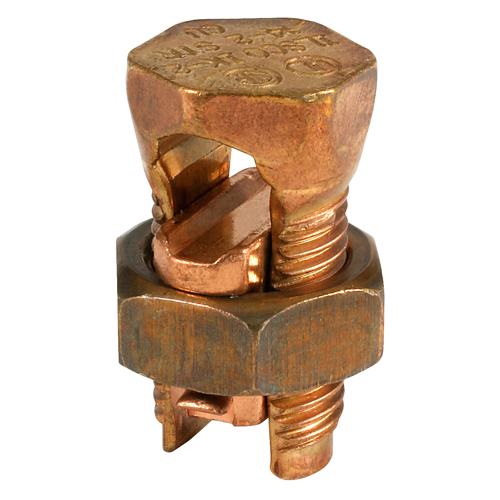

Copper Split Bolt, Conductor Range for Equal Main & Tap 8-16, UL, CSA – Mechanical Wire Connector

This Copper Split Bolt connector is designed for mechanical connections of solid copper conductors in electrical distribution and lighting solutions. It supports conductor ranges for equal main and tap wires from sizes 8 to 16, making it suitable for wire and cable splicing and tapping applications. The connector is UL and CSA listed, rated for direct burial, and manufactured by ILSCO, a recognized switchgear supplier.

Specifications

• Manufacturer Part #: IK-8
• Material: Copper
• Color: Copper
• Conductor Type: Solid
• Conductor Material: Copper
• Connection Type: Mechanical
• Direct Burial: Yes
• Number of Conductors: 1
• Dimensions (L x W x H): 0.84 in x 0.58 in x 0.5 in
• Product Weight: 0.0421 lbs
• Carton Quantity: 100
• UPC: 783669470024

Features

• UL and CSA listed for safety and compliance
• Supports conductor range for equal main and tap from 8 to 16 AWG
• Suitable for direct burial applications
• Solid copper construction ensures reliable conductivity and corrosion resistance
• Mechanical connection type for secure and stable wire splicing
• Compact size facilitates installation in confined electrical enclosures

Downloads & Links

• IK technical drawing
• Form 165
• Spec Sheet
