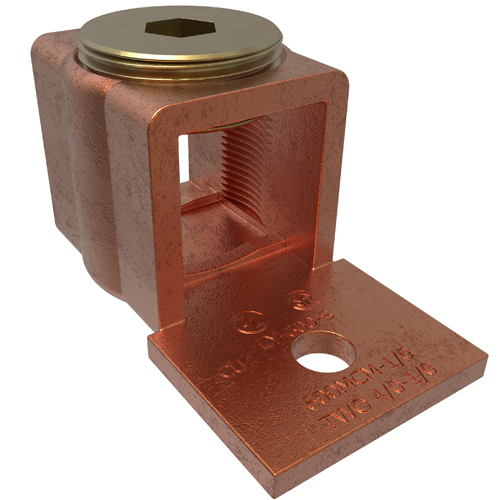

Specifications

• Height: 1.5 in | 38.1 mm
• Length: 2.591 in | 65.8114 mm
• Weight: 0.506 lbs
• Width: 1.388 in | 35.2552 mm

Additional Class Attributes

• Connection: Mechanical
• Contains DE-OX®: No
• Mounting Hole Type: Thru
• Number of Conductors: 1, 2
• Number of Mounting Holes: 1
• Number of Poles: 1
• Number of Ports / Wireways: 1

Additional Technical Specifications

• Conductor Type: Stranded

Dimensions

• Dimension G (IN): 0.5
• Drive Size Main: 3/8
• Drive Type Main: Internal Hex
• Height BX (IN): 2
• Height (mm): 38.1
• Length (mm): 65.8114
• Mounting Hole Diameter (IN): 0.323
• Mounting Hole Diameter (mm): 8.2042
• Tang Length (IN): 1.123
• Tang Length (mm): 28.5242
• Tang Thickness (IN): 0.156
• Tang Thickness (mm): 3.9624
• Tang Width (IN): 1.388
• Tang Width (mm): 35.2552
• Weight BX (LB): 5.2131
• Width BX (IN): 6.1875
• Width (mm): 35.2552

Material and Finish

• Conductor Material: Copper
• Material: Copper
• Wire Binding Hardware Finish: Bright Dip
• Wire Binding Hardware Material: Brass

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 5/16
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: #10
• Wire Binding Torque: 375

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range CU Stranded (Primary, run, main, line): 600 kcmil - 1/0 Str
• Wire Combinations: (2) 1/0 Str, (2) 4/0 Str, (2) 3/0 Str, (2) 2/0 Str

Color

• Color: Copper

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• ROHS Indicator: IND
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 10
• Direct Burial: No
• Dual Rated: No
• NEMA Code: S-588-3
• UPC Code: 78366959465
