Features

• Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations, All (B/B, B/I, I/B, I/I) Combinations Acceptable: Each Connector Has Many Copper Cable Combination Applications Allowing Maximum Flexibility For The Design And Installation Of A System, Tap Grooves Function Independently Of Each Other, Use Of One Tap Is Required, Balance May Be Used Or Left Empty: Provides Maximum Design And Installation Flexibility, Color Code On The Connector Matches Installation Die: Provides Matched System For Fast And Easy Installation, Die Index Embossed On Connector After Completion Of Crimp: Permanent Inspectability Of Installed Connectors To Insure Consistently Reliable And Dependable Connections, Recommended Flame Retardant Type CFFR Insulating Covers Meet Oxygen Index 28 And UL94 V-O Requirements: A Complete Insulated UL Listed Installation Is Provided, Third Hand Constrains Conductors While Installer Completes Crimp, Included With Each Connector, Simplifies Installation, Reducing Installed Cost, Use PUADP-1 Adaptor With U Dies In Y46, Wire Strip Length: 1-1/8 IN, Flame Retardant Cover: CFN-FR, Cover Packaged With Connector: Yes, Tools, Die Set Catalog Number, And (number Of Crimps): Y750 Tool, U1104M Die, (1), U1104 Die, (2), Y46 Tool, U1104M Die With PUADP-1 Adapter, (1), P1104 Die, (1), Die Index: 1104 Element A, Color Code: Brown, Conductor Size (run - Range): 4/0 AWG - 500 KCMIL, Conductor Type: Run: Commercial Stranded Copper, Flexible Copper, Tap: Commercial Stranded Copper, Flexible Copper, Shape: H, Conductor Size (tap Range): 1/0 AWG - 250 KCMIL

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• Conductor - Copper Flex G Run: 4/0;250;300;350;400;450;500
• Conductor - Copper Flex G Tap: 1/0;2/0;3/0;4/0;250
• Conductor - Copper Flex H Tap: 1/0;2/0;3/0;4/0;250
• Conductor - Copper Flex I Run: 350 KCMIL-4/0 AWG
• Conductor - Copper Flex I Tap: 1/0;2/0;3/0;4/0;250
• Conductor - Copper Flex I Tap Range: 4/0 AWG-1/0 AWG
• Conductor - Copper Flex K Run: 4/0;250;300;350;400;450;500
• Conductor - Copper Flex K Tap: 1/0;2/0;3/0;4/0;250
• Conductor - Copper Flex K Tap Range: 4/0 AWG
• Conductor - Copper Flex M Run: 4/0;250;300;350;400;450;500
• Conductor - Copper Flex M Tap: 1/0;2/0;3/0;4/0;250
• Conductor - Copper Str Run: 4/0;250;300;350;400;450;500
• Conductor - Copper Str Run Range: 500 KCMIL-4/0 AWG
• Conductor - Copper Str Tap: 1/0;2/0;3/0;4/0;250
• Conductor - Copper Str Tap Range: 250 KCMIL-1/0 AWG
• Conductor - Material: COPPER
• Description - Slang: H TAP WITH CF-FR COVER
• Dimension - L Length Overall mm: 25 mm
• Dimension - Length Overall inch: 1.00 in
• Dimension - Strip Length inch: 1-1/8
• Dimension - Width inch: 2.23 in
• Width: 1.31 in
• Each - Width: 1.31 in
• Industry Standard(s): UL 486A-486B
• Plated: Y
• Plating Type: Tin - Electro Plated
• Product Type: RUN/TAP
• Standards - RoHS Compliance Status: CM
• Trade Name: CRIMPIT™
• Application: Wire Tap
• Finish: Tin-Plated
• Special Features: Features: Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations, All (B/B, B/I, I/B, I/I) Combinations Acceptable: Each Connector Has Many Copper Cable Combination Applications Allowing Maximum Flexibility For The Design And Installation Of A System, Tap Grooves Function Independently Of Each Other, Use Of One Tap Is Required, Balance May Be Used Or Left Empty: Provides Maximum Design And Installation Flexibility, Color Code On The Connector Matches Installation Die: Provides Matched System For Fast And Easy Installation, Die Index Embossed On Connector After Completion Of Crimp: Permanent Inspectability Of Installed Connectors To Insure Consistently Reliable And Dependable Connections, Recommended Flame Retardant Type CFFR Insulating Covers Meet Oxygen Index 28 And UL94 V-O Requirements: A Complete Insulated UL Listed Installation Is Provided, Third Hand Constrains Conductors While Installer Completes Crimp, Included With Each Connector, Simplifies Installation, Reducing Installed Cost, Use PUADP-1 Adaptor With U Dies In Y46, Wire Strip Length: 1-1/8 IN, Flame Retardant Cover: CFN-FR, Cover Packaged With Connector: Yes, Tools, Die Set Catalog Number, And (number Of Crimps): Y750 Tool, U1104M Die, (1), U1104 Die, (2), Y46 Tool, U1104M Die With PUADP-1 Adapter, (1), P1104 Die, (1), Die Index: 1104 Element A, Color Code: Brown, Conductor Size (run - Range): 4/0 AWG - 500 KCMIL, Conductor Type: Run: Commercial Stranded Copper, Flexible Copper, Tap: Commercial Stranded Copper, Flexible Copper, Shape: H, Conductor Size (tap Range): 1/0 AWG - 250 KCMIL
• Standard: UL 486A-486B
• Sub Brand: CRIMPIT
• Temperature Rating: 194
• Type: Compression Taps
• Voltage Rating: 35 kV
• Conductor Type: CODE/FLEX

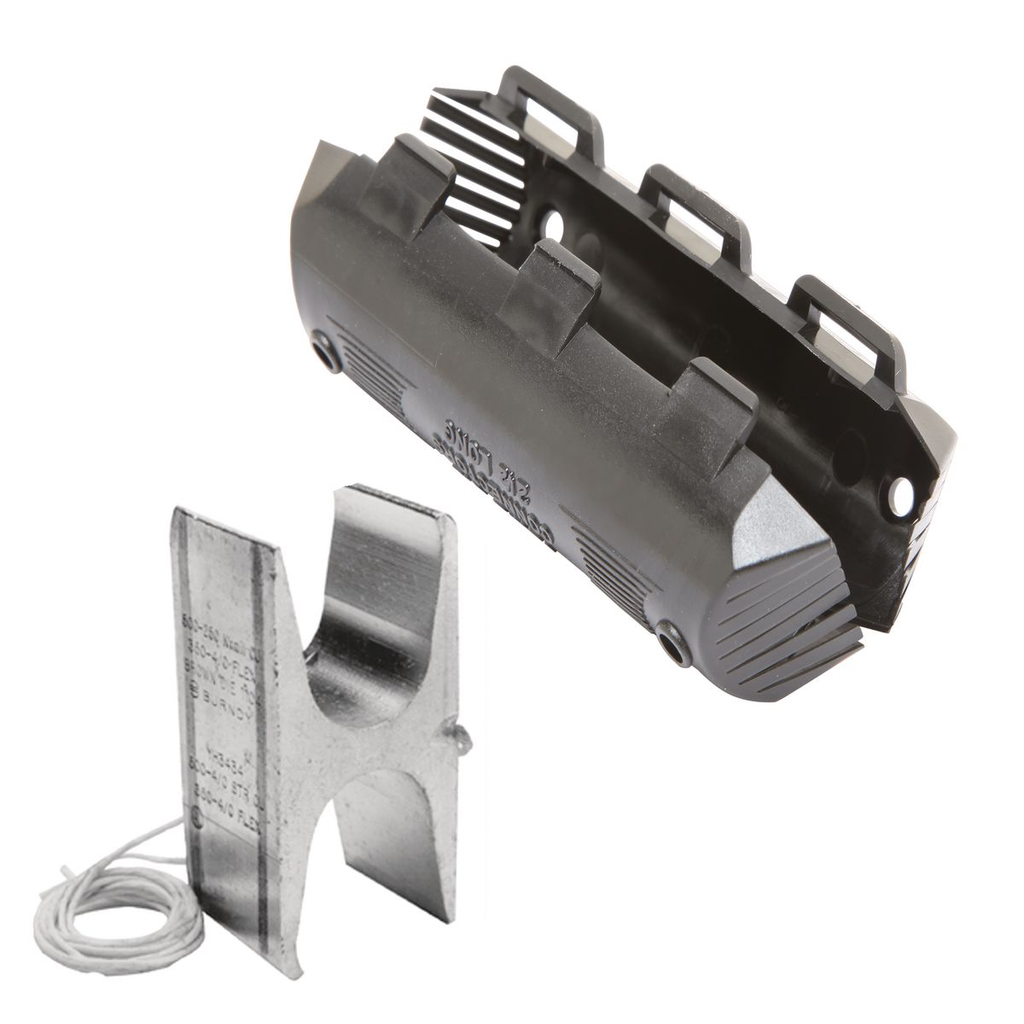

• Connector Type: H-TAP W/BLK COVER
• Finish Type: Tin-Plated
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B55
• Description - Invoice: CU H-TAP 500-250 W/COVER
• Freight Class Code: 16027000
• Harmonization Code: 8535908040
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B55BI2F
• Die Index: 1104
• UL Listed: Yes
• Color Code: Brown
• Material: COPPER
• Voltage - Maximum: 35000
• Base Unit of Measure: EA
• BOX SIZE: 6.750x9.688x7.753 (in)
• Carton - Gross Weight per Pack: 5.200 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810000274
• Carton - Total Units: 10
• Case - SCC-14 Next Lower Level Sub Pack: 30781810000275
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 5.2 lb.
• Package - GTIN - Package: 30781810000275
• Package - Number of Sub Packs: 10
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810000274
• Package - Total Units: 10 EA
• Package Height: 6.13 in
• Package Length: 9.38 in
• Package Quantity: 10 EA
• Package Weight: 5.2 lb.
• Package Width: 7.44 in
• Pallet - GTIN - Package: 70781810000273
• Pallet Height: 46.250 in
• Pallet Length: 48.000 in
• Pallet Weight: 793.800 lb.
• Pallet Width: 40.000 in
• Standard Package Quantity: 10

Certifications

• CSA Approved: Yes
• cULus: No
• ETL: No
• UL Recognized: No
• EU RoHS Indicator: Yes
