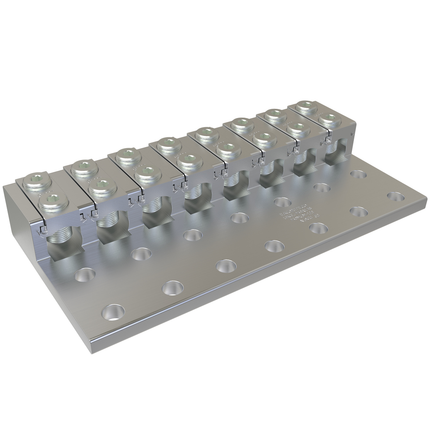

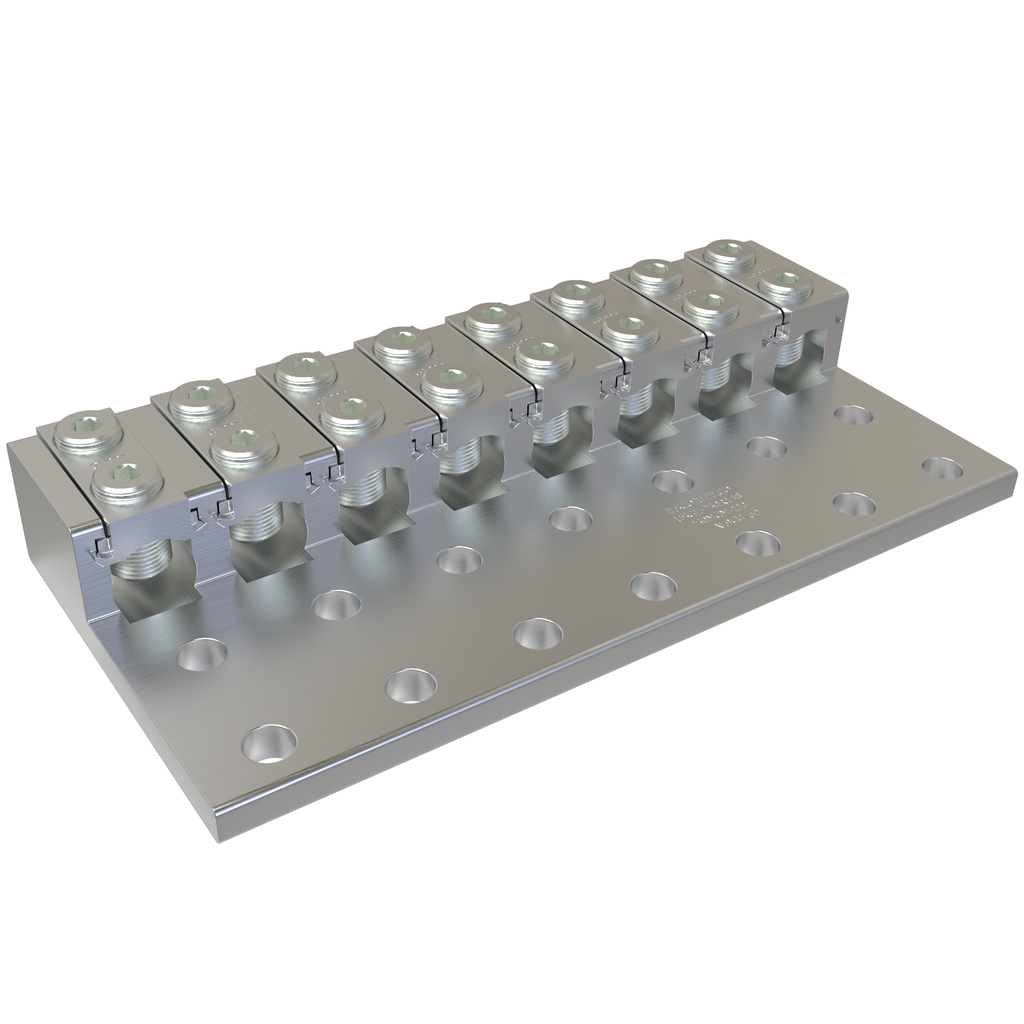

Specifications

• Height: 1.858 in | 47.1932 mm
• Length: 6.125 in | 155.575 mm
• Weight: 5.848 lbs
• Width: 12.3 in

Additional Class Attributes

• Connection: Mechanical
• Contains DE-OX®: No
• Mounting Hole Type: Thru
• Number of Conductors: 8
• Number of Mounting Holes: 14
• Number of Poles: 1
• Number of Ports / Wireways: 8
• Wire Orientation: Perpendicular

Additional Technical Specifications

• Conductor Type: Stranded

Dimensions

• Dimension G (IN): 0.625
• Dimension G (mm): 15.875
• Drive Size Main: 5/16
• Drive Type Main: Internal Hex
• Height BX (IN): 6.5
• Height (mm): 47.1932
• Length (mm): 155.575
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (IN): 1.75
• Mounting Hole Spacing (mm): 44.45
• Tang Length (IN): 3.625
• Tang Length (mm): 92.075
• Tang Thickness (IN): 0.5
• Tang Thickness (mm): 12.7
• Tang Width (IN): 12.3
• Tang Width (mm): 312.42
• Weight BX (LB): 24.0921
• Width BX (IN): 12.75

Material and Finish

• Conductor Material: Aluminum, Copper
• Connector Finish: Clear
• Material: Aluminum
• Wire Binding Hardware Finish: Tin
• Wire Binding Hardware Material: Aluminum

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/2
• Number of Wire Binding Screws per Port: 2
• Wire Binding Screw Size: 13/16
• Wire Binding Torque: 500

Environment and Temperature

• Temperature Rating: 90°C

Testing Standards

• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line): 750 kcmil - 1/0 Str
• Conductor Range CU Stranded (Primary, run, main, line): 750 kcmil - 1/0 Str

Color

• Color: Silver

Voltage

• Voltage Rating: 35 kV

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 4
• Dual Rated: Yes
• NEMA Code: S-569-1
• UPC Code: 78366900317
