Features

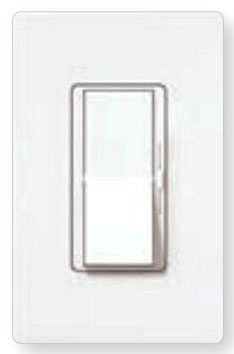

• Includes (1) Single-pole rocker switch with Locator Light; Gloss finish
• Locator light glows in off position
• Designed for single pole applications
• Features intuitive paddle for general purpose on/off switching of any light or fan motor
• Use with any 15 Amp load
• Matches existing Lutron dimmers and switches
• Available in 4 gloss colors and 2 satin colors (SC-1PSNL-xx)
• Pairs perfectly with Lutron Claro wall plates (sold separately)
• Rated for 15 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or general purpose fans and motor loads
• Paddle turns on/off
• Use with any 15 A load
• General purpose switching of all light sources and motor loads.

Standards and Certifications

• UL
• CSA
• NOM
• cUL

Specifications

• Actuator: Paddle switch
• Amperage Rating: 15 A
• Application: Lighting Control
• Color: White
• Contact Configuration: Screw terminal
• Contact Rating: 15 A
• Enclosure: Plastic
• Material: Plastic/metal
• Mounting: Wallbox
• Number Of Poles: 1
• Size: 4.69 x 2.94 in
• Type: Mechanical switch, with locator light, single-pole
• Voltage Rating: 120/277 VAC
• Wattage: 1800/4155 W
