Features

• Works with 0.74 to 0.86-Inch (18.80 to 21.84 mm) cable diameter range
• Round inside jaw contour for weatherproof coated wire
• Notches in jaw provide firm grip on insulation
• Max Safe Load of 8000-Pound (3629 kg)
• Made in USA
• Weatherproof

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.

Note

• Due to various types of weatherproof coatings available, selection of proper grips is determined by outside diameter of cable

Specifications

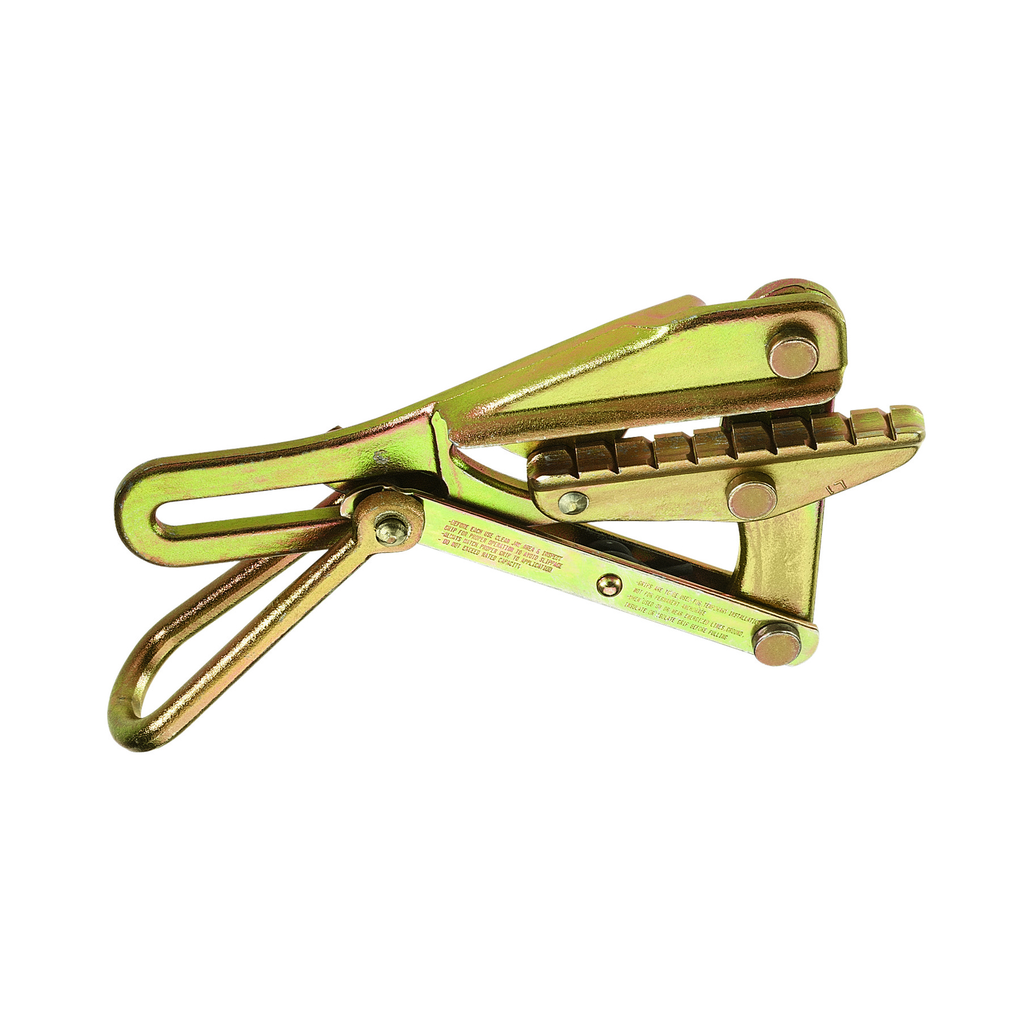

• Type: Chicago Grip
• Maximum Safe Load: 8000 lb (3629 kg)
• Cable Diameter: 0.74" to 0.86" (18.8 to 21.84 mm)
• Cable Type: Copper, ACSR, AAC
• Jaw Type: Notched
• Jaw Length: 5.688" (14.5 cm)
• Locking Handle: Yes
• Hot Latch: No
• Spring: Yes
• Swing Latch: No
• Height: 1.5840 in
• Width: 4.9500 in
• Depth: 9.9000 in
• Weight: 7.4250 lbs
