Features

• Round, smooth inside jaw contour on this series of grips is ideal for bare ACSR, aluminum, and stranded-copper cables
• Smooth jaws grip with maximum contact and are less likely to damage conductors
• Jaw design helps reduce slippage to make pulling cables easier
• Manufactured from drop-forged, heat-treated steel for excellent durability
• Made in USA

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

• Cable Type: ACSR, AAC, Copper
• Jaw Type: Round
• Cable Diameter: 0.74" to 0.86" (18.8 to 21.84 mm)

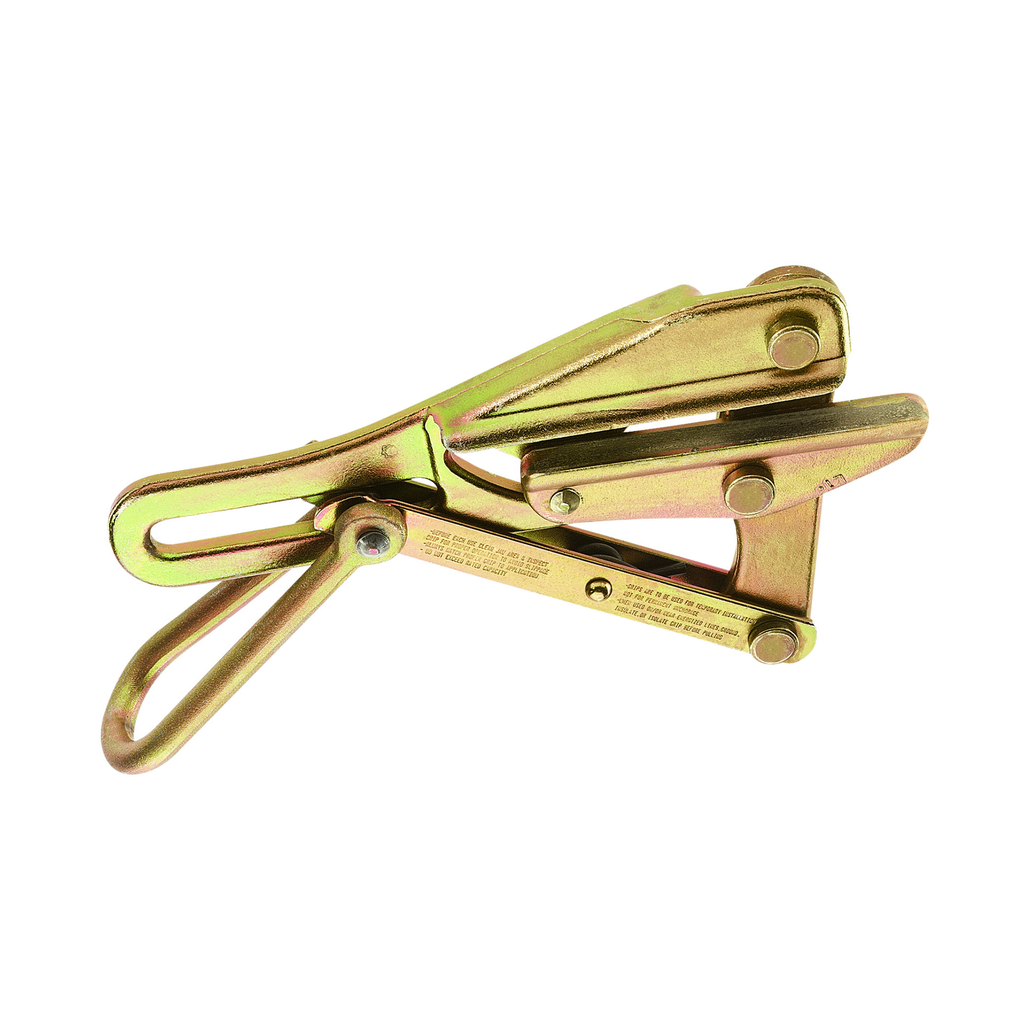

• Type: Chicago Grip
• Application: Bare ACSR, Aluminum and Stranded-Copper Cables
• Maximum Safe Load: 8000 lb (3629 kg)
• Jaw Length: 5.5" (14 cm)
• Locking Handle: Yes
• Hot Latch: No
• Spring: No
• Swing Latch: No
• Height: 1.8000 in
• Width: 4.5000 in
• Depth: 9.9000 in
• Weight: 7.4700 lbs
