Features

• The firestop system shall be a single component, molded plastic sleeve supplied with a fully encapsulated, tamper-proof integral firestop system and smoke sealing gasket. The device shall be installed in accordance with the manufacturer’s written instructions. The device shall also be certified by Underwriters Laboratories Inc. (UL) as a through-penetration firestop device when tested to ASTM E814 (UL1479) and CAN/ULC-S115 for up to a three hour rating.
• Tested for combustible and non-combustible penetrants., Variety of accessories available for any field condition., Incorporates built in smoke and water resistant seal., Usable in concrete floors as thin as 2-1/2 in.
• Saves money by eliminating core drilling
• Saves time. No firestopping step required
• Provides pre-installed fire and smoke sealing
• Provides added protection against transient water
• Adapts to a wide variety of construction conditions
• Pipes can be installed from top or bottom

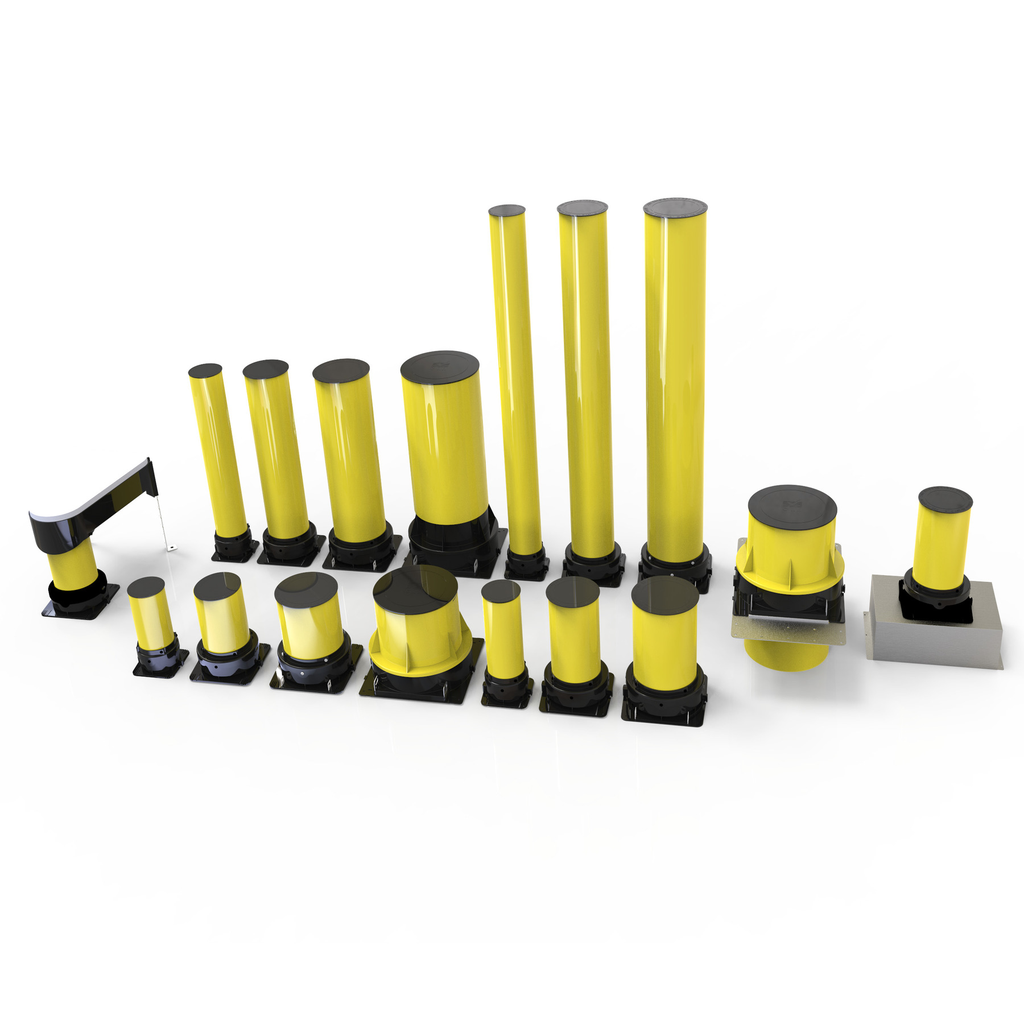

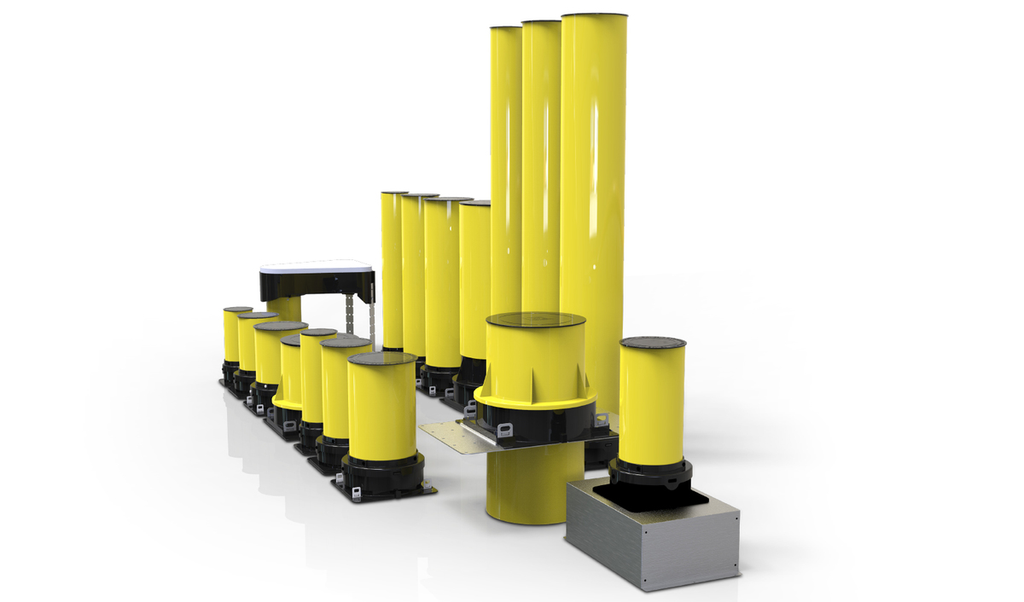

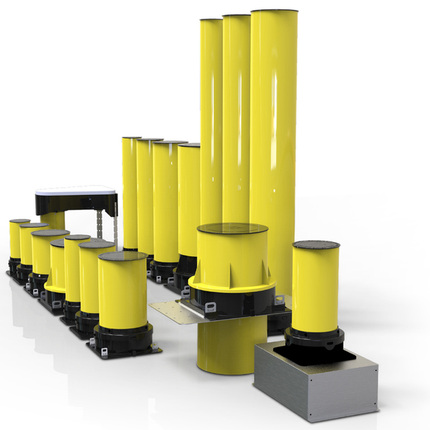

• Four heights for a greater range of concrete depth

Standards and Certifications

• ASTM E814 (UL1479)
• CAN/ULC-S115
• FM Approved: No
• UL Certified Firestop: UL Certified
• FBC System Compatible: Yes

Applications

• Blank Openings
• Cables Duct
• Metal Pipe. Multi Penetration
• Plastic Pipe

Properties

• Finished Product
• Intumescent Low VOC
• No Expiration
• Smoke Barrier
• Water Resistant

Construction Type

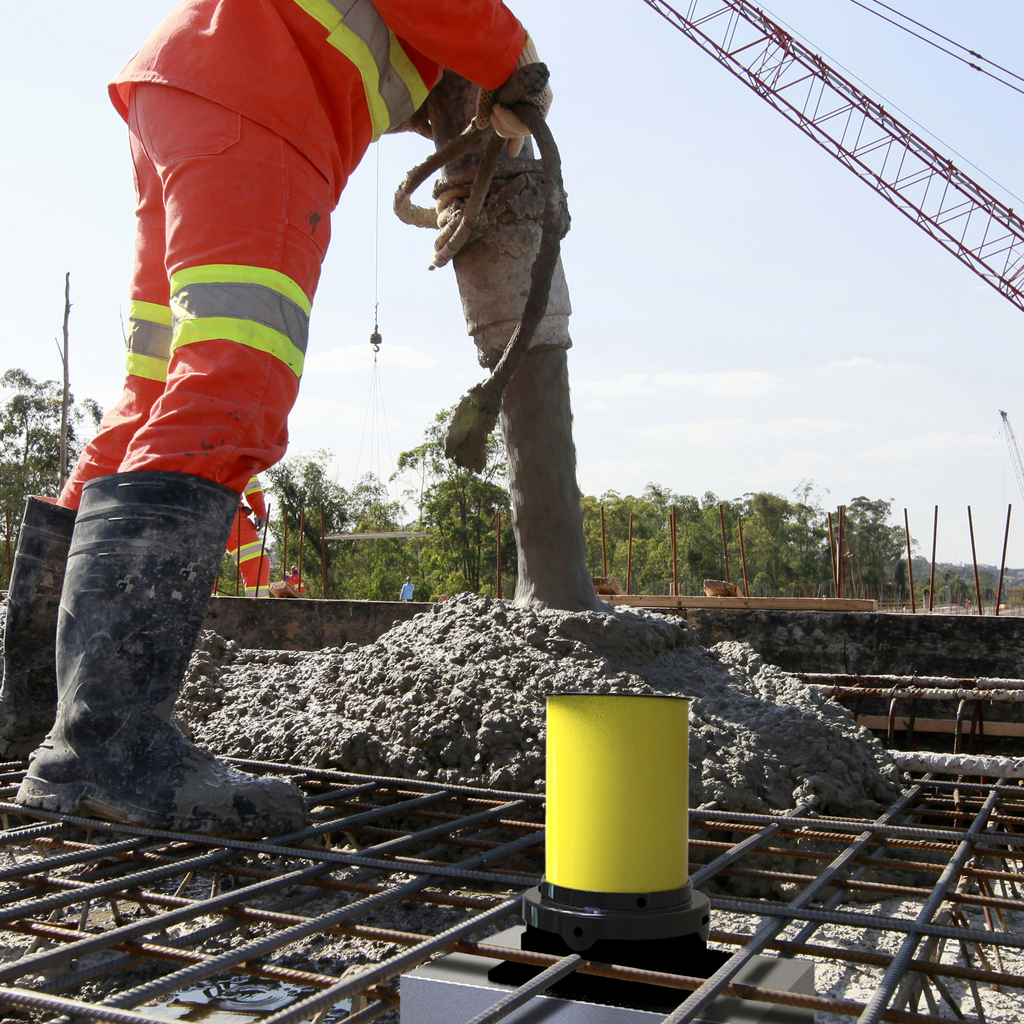

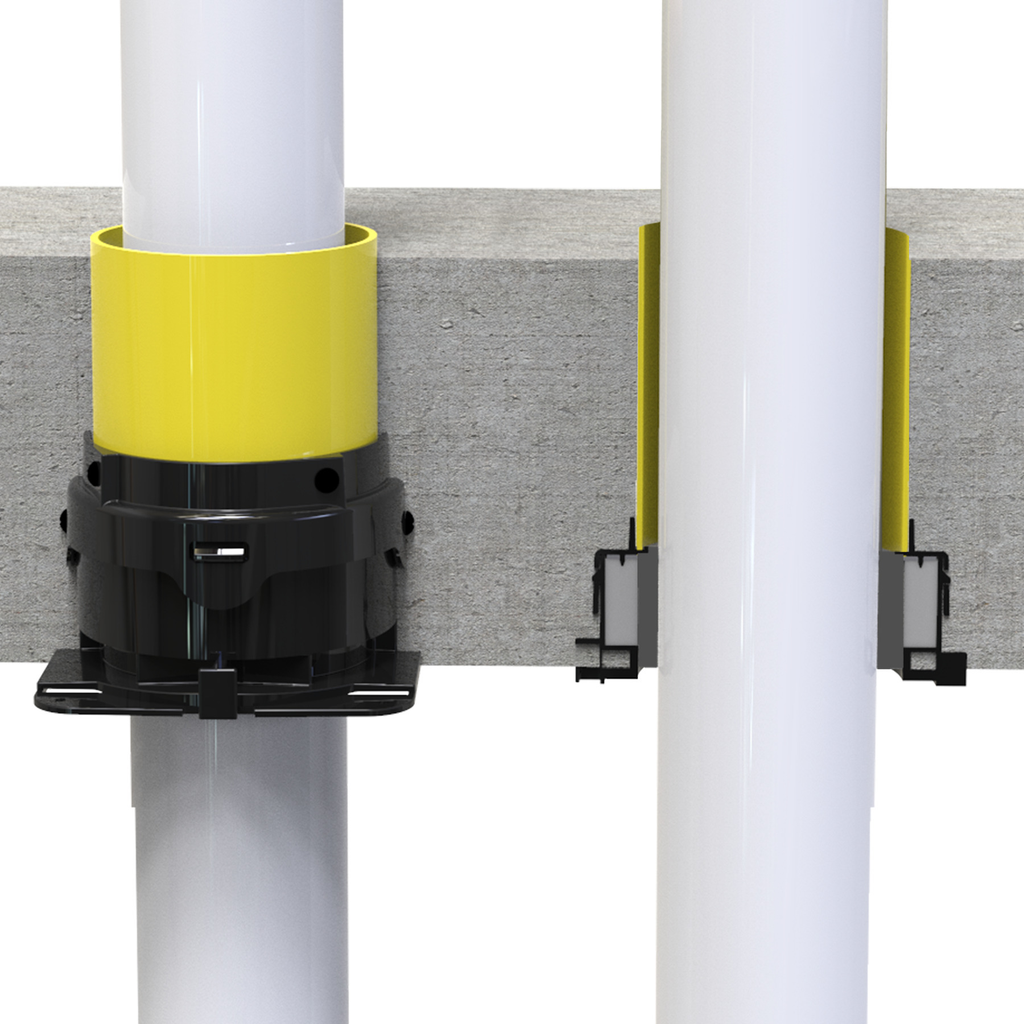

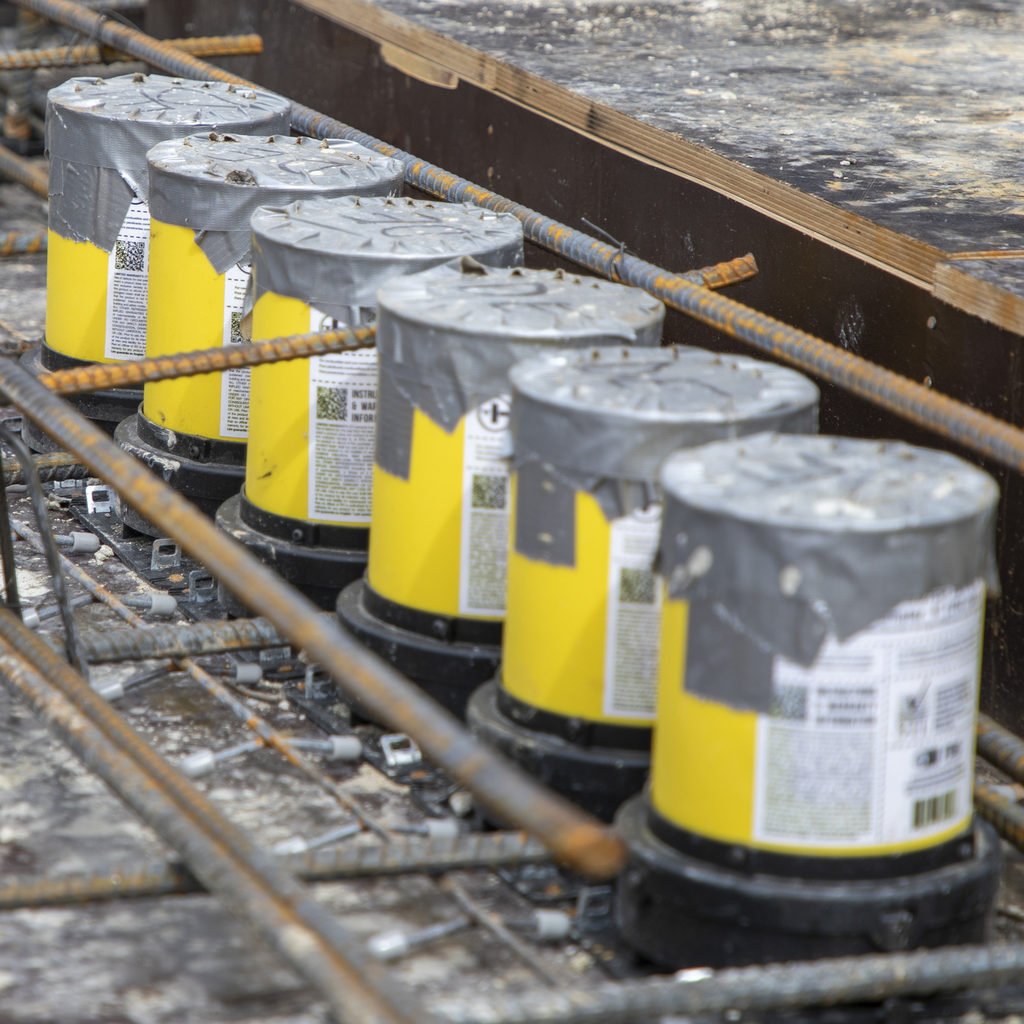

• SpecSeal Cast-In Firestop Devices are engineered for use in concrete floors to form firestopped openings for various through penetrating items including plastic or metal pipes, cables, and insulated pipes. Used in Concrete Constructions

Industry

• Residential
• Commercial
• Industrial
• Construction
• Government

Recommended Use

• SpecSeal Cast-In Firestop Devices are engineered for use in concrete floors to form firestopped openings for various through penetrating items including plastic or metal pipes, cables, and insulated pipes.

Specifications

• Country of Origin: USA
• Weight: 0.95 lbs.
• Length: 6 in.
• Width: 13 in.
• Height: 18 in.
• Color: Yellow; Black
• Composition: Polypropylene, Polyethylene, Intumescent
• Material: Polypropylene/Polyethylene
• Firestop Device Type: Sleeve Device
