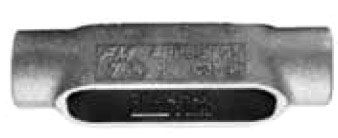

Features

• Smooth, Rounded Integral Bushings in Hubs Protect Conductor Insulation
• Accurately Tapered Threads for Tight, Rigid Joints and Excellent Ground Continuity
• Flat Back Design Provides Greater Cubic Content for Easier Wire Pulling and More Room for Splicing
• Fits Flush and Snug Against Flat Surfaces for More Stable Installation
• Serve as Pulling Fitting
• Make Bends in Conduit System
• Provide Openings for Splicing
• Connect and Change Direction of Conduit Runs
• Allow Connections for Branch Runs
• Permit Access to Conductors for Maintenance
• Hub Size, Body Style, Compliance Data, Maximum Wire Number/Size and Cubic Capacity Molded into Body

Additional Information

• Capacity 11 Cubic Inch
• Applicable Standard NEMA FB-1

Specifications

• Access Opening: Side
• Configuration: C
• Cover Type: Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron
• Hub Location: Straight
• Number of Hubs: 2
• Hub Size: 1 Inch
• Size: 7 Inch Length x 1.75 Inch Width x 1.88 Inch Height
• Installation: Threaded
• Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron (Body), Neoprene (Gasket), Stainless Steel Cover (Screw)
• Form Type: Form 7
• Approval: UL 514A/514B, CSA C22.2
• Used On: Rigid/IMC Conduit
