Features

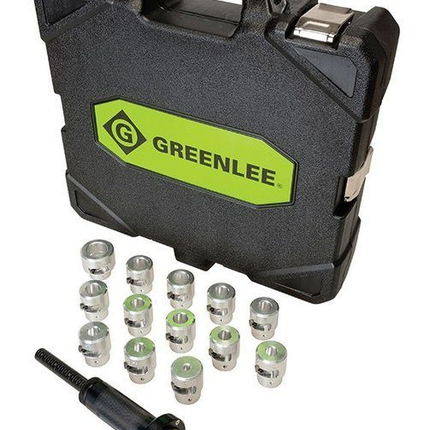

• 13 bushing kit ranging from #6 AWG - 500 MCM THHN/XHHN aluminum conductor
• One way ratchet handle – allows user to maintain control of the cutback throughout the stripping process, ensuring blade does not come into contact with the conductor
• Tension grip depth stop –Self contained 4” laser etched depth stop for precise articulation of cut back depth, no additional tools needed for depth stop set up
• Spring loaded retention pin – Quick attachment method of cable specific bushings, no additional tools needed for bushing attachment
• Safety factor – Replaces the need to use blades when stripping cable. Blade lacerations comprise approximately 40% of all recordable injuries on the jobsite.

Application

• THHN/XHHN Aluminum Cable End Stripping

Specifications

• Country of Origin: United States
• Weight: 5 lbs
• Handle Type: Knurled one way bearing
• Capacity: THHN/XHHN Aluminum Conductor #6 AWG - 750 MCM
• Finish: Black Anodized
• Material: Aluminum, Steel
• Overall Length: '6.5'''' with bushing''
• Replacement Part: GTS-RDS - Replacement Depth Stop
• Short Description: GTS-THXH
