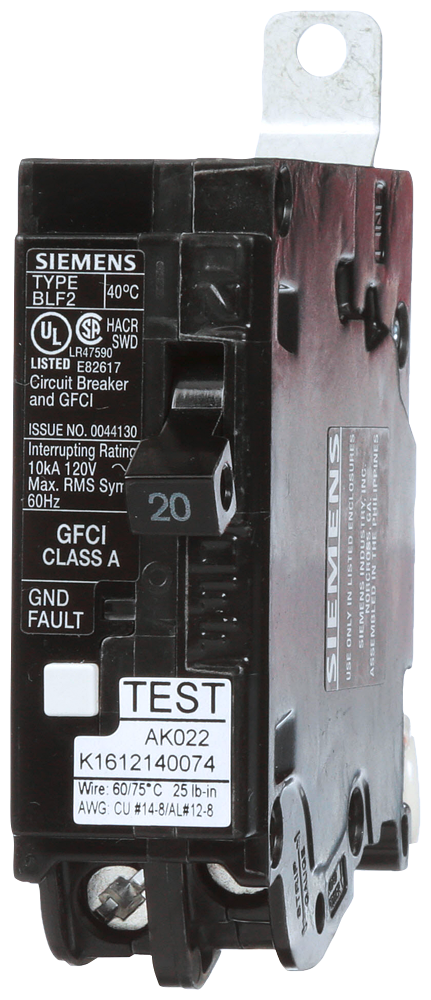

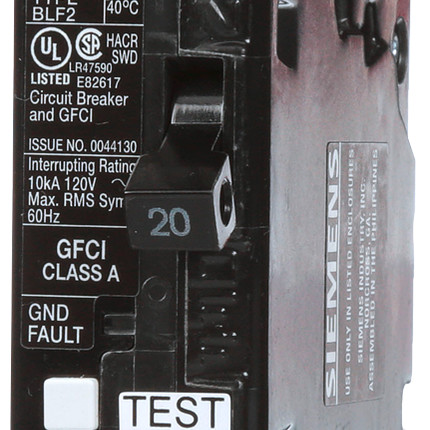

BRKR BLF2 GFCI 5mA 1P 120V 20A 10KA – Molded Case Circuit Breaker

The Siemens BRKR BLF2 GFCI 5mA 1P 120V 20A 10KA is a low voltage molded case circuit breaker designed for panelboard mounting. It provides reliable ground fault circuit interruption for electrical distribution systems, making it suitable for use by electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers. This 1-pole breaker offers 20 ampere protection at 120 volts AC with a 10kA interrupting rating, ensuring safety and compliance in residential, commercial, and light industrial applications.

Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: BF120A
• Type: BLF2 GFCI Circuit Breaker
• Poles: 1
• Voltage Rating: 120 VAC
• Current Rating: 20 Amps
• Interrupting Rating: 10 kAIC
• Ground Fault Sensitivity: 5 mA
• Dimensions (H x W x L): 3.3 in x 1.4 in x 5.3 in
• Weight: 0.34 lbs
• Country of Origin: Philippines
• UL Listed: Yes (UL E82617)
• Operating Temperature: 40°C

Features

• Ground Fault Circuit Interrupter (GFCI) for personnel protection
• Compact design for easy panelboard mounting
• Class A GFCI with 5 mA trip sensitivity
• High interrupting capacity of 10kA ensures system protection
• Test button for easy verification of GFCI functionality
• Compatible with copper and aluminum wiring (AWG #14-8 CU / #12-8 AL)
• Suitable for use in lighting solutions and electrical distribution systems
