Features

• UGR - 26.97
• SDCM - 464
• Hi pot - DC-1550V
• Edge-lit - Yes

Installation Notes

• Surface mount

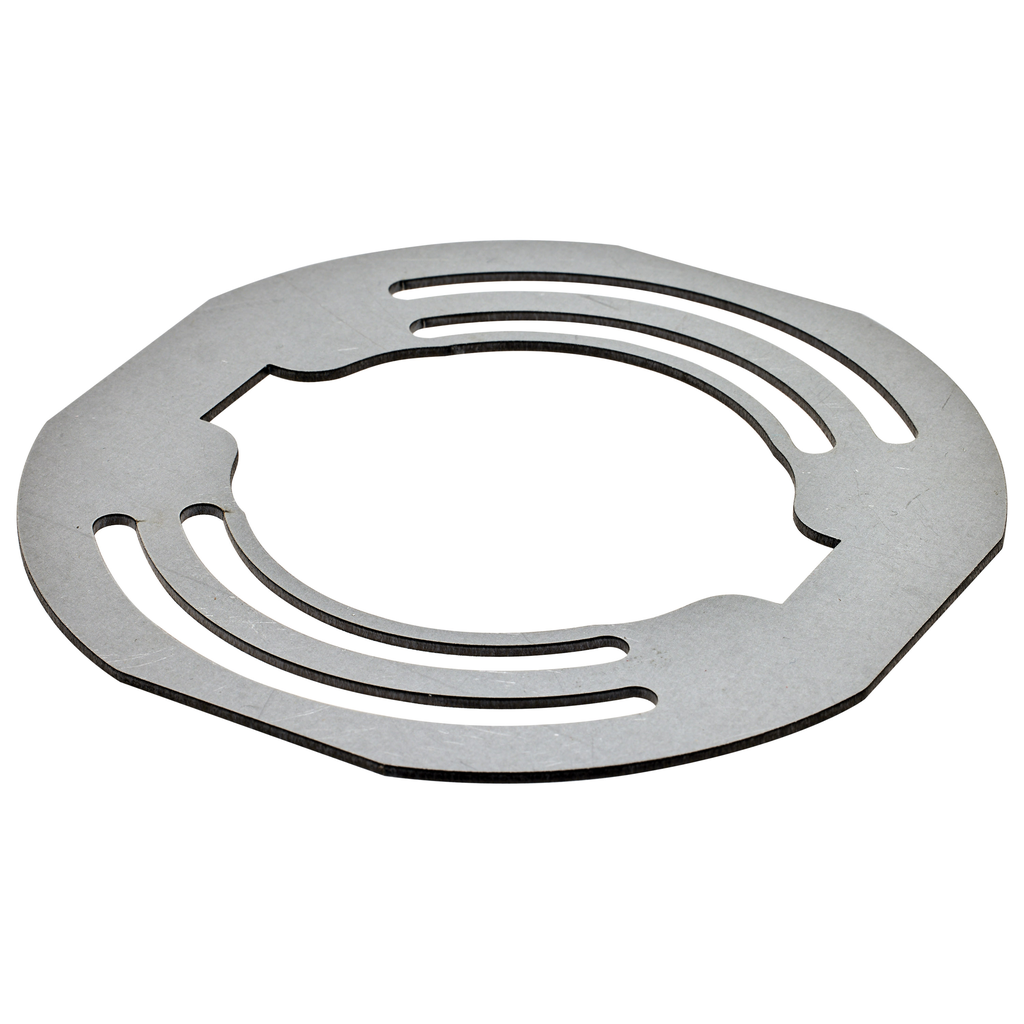

• Compatible with 3"&4" J-box and pancake J-box with additional accessory

Specifications

• Country of Origin: Thailand

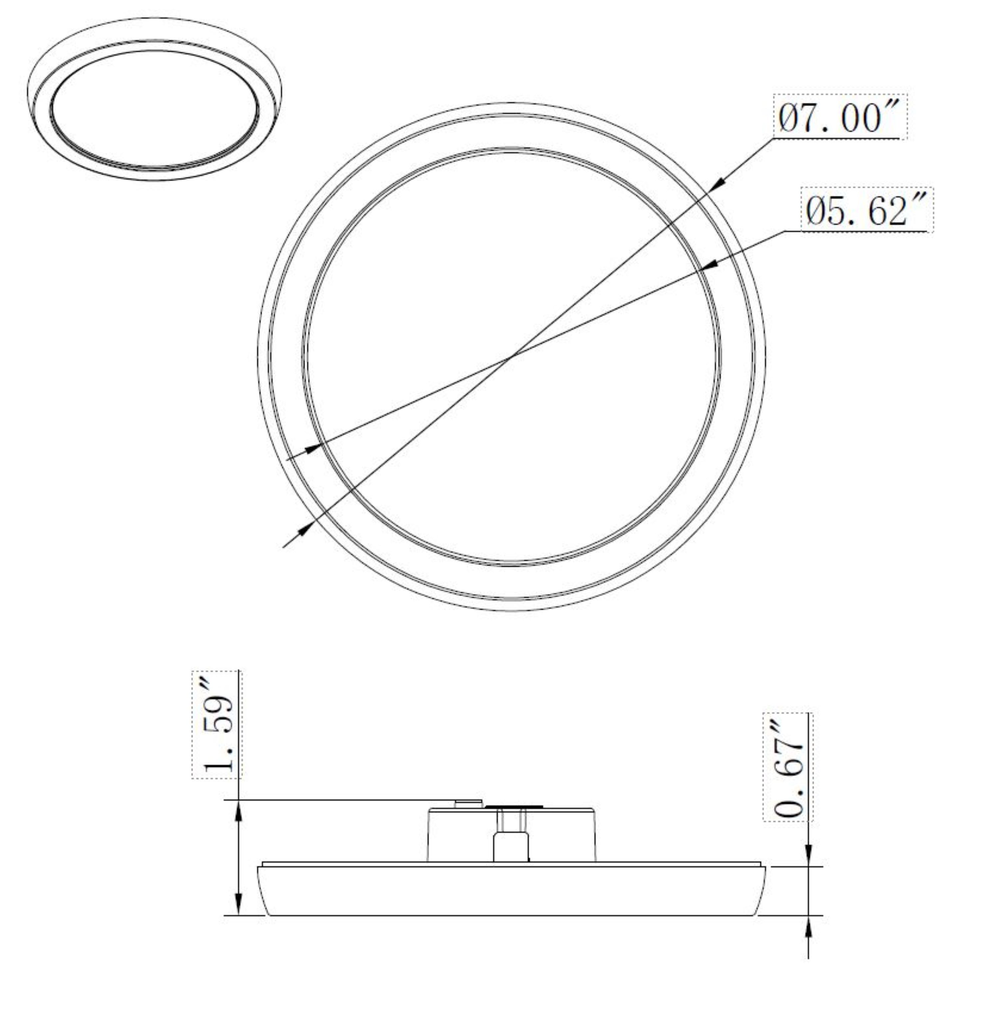

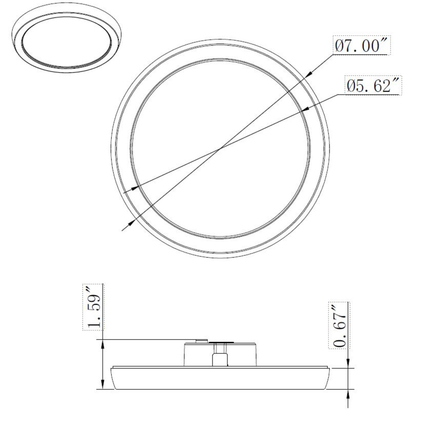

• Width: 7 In.
• Height: 0.67 In.
• Weight: 0.88 Lbs.
• Warranty: 5 Year Limited - Fixtures
• ANSI Base: Integrated
• Beam Spread: 100
• Bulb Included: Integrated

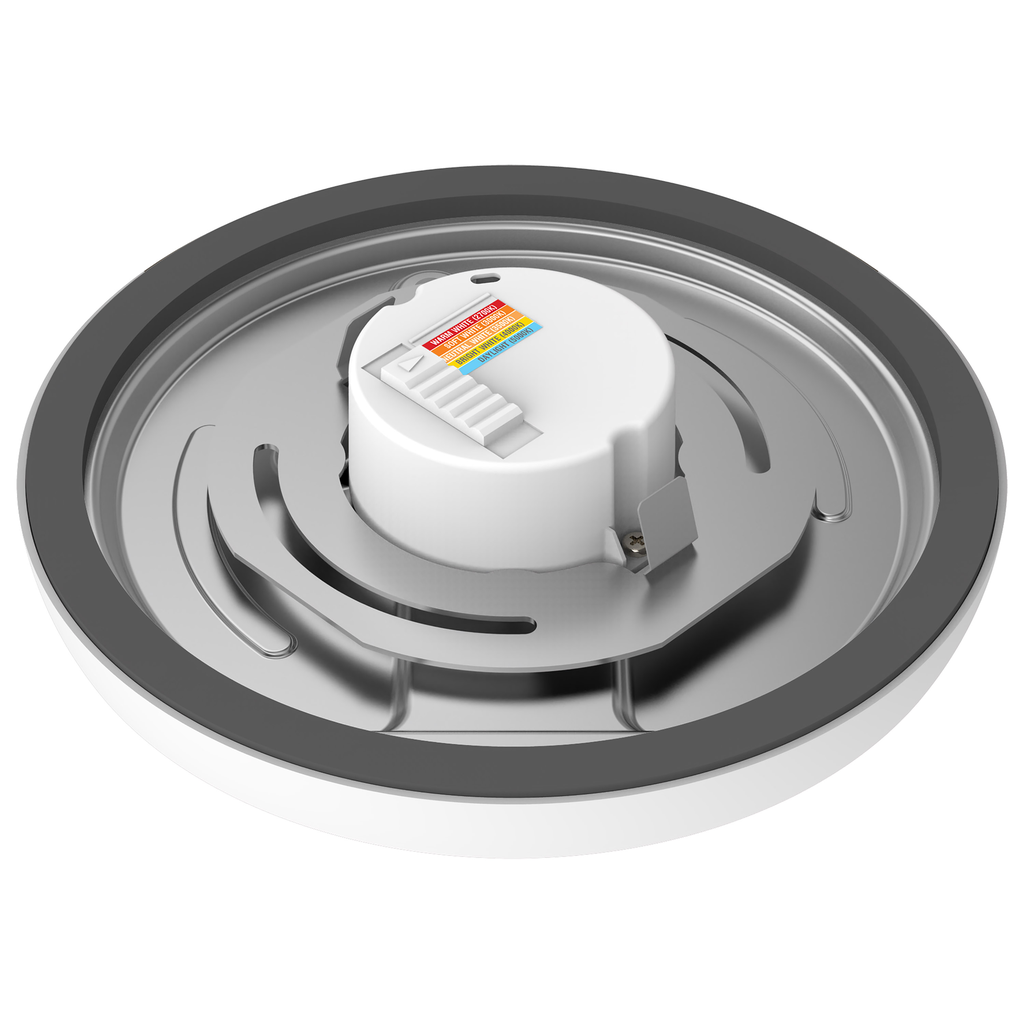

• CCT Selectable: Yes
• Closet Rated: Yes
• Color Temp: Warm to Cool White
• CRI: 90
• Diameter: 7 in.
• Dimmable: Yes-Dimmable
• Dimmable Function: 120V only
• ENERGY STAR: Yes
• ES Unique ID: ESID-2402973
• ES Category: Downlight Surface Mount
• FCC Compliant: Yes
• Finish: White
• Finish Family: White
• Fixture shape: Round
• Product Type: Flush Mount
• Flicker Free: No
• Avg Rated Hours: 50000
• Indoor Outdoor: Indoor
• Lamp Base: Integrated
• Lamp Shape: Integrated LED
• Lens Material: Poly methyl methacrylate (PMMA)
• Lumens: 980L-1050L
• Material: Die Cast Aluminum
• NEC Compliance: Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
• Operating Frequency: 60 Hz
• Operating Temp: -20C (-4F) to +40C (+104F)
• Replaceable Light Source: No
• RoHS Compliant: Yes
• Safety Listing: cETLus
• Location Rating: Wet
• Style: Utility
• Surge Protection: Built-in surge protection - 2.5KV
• Technology: LED

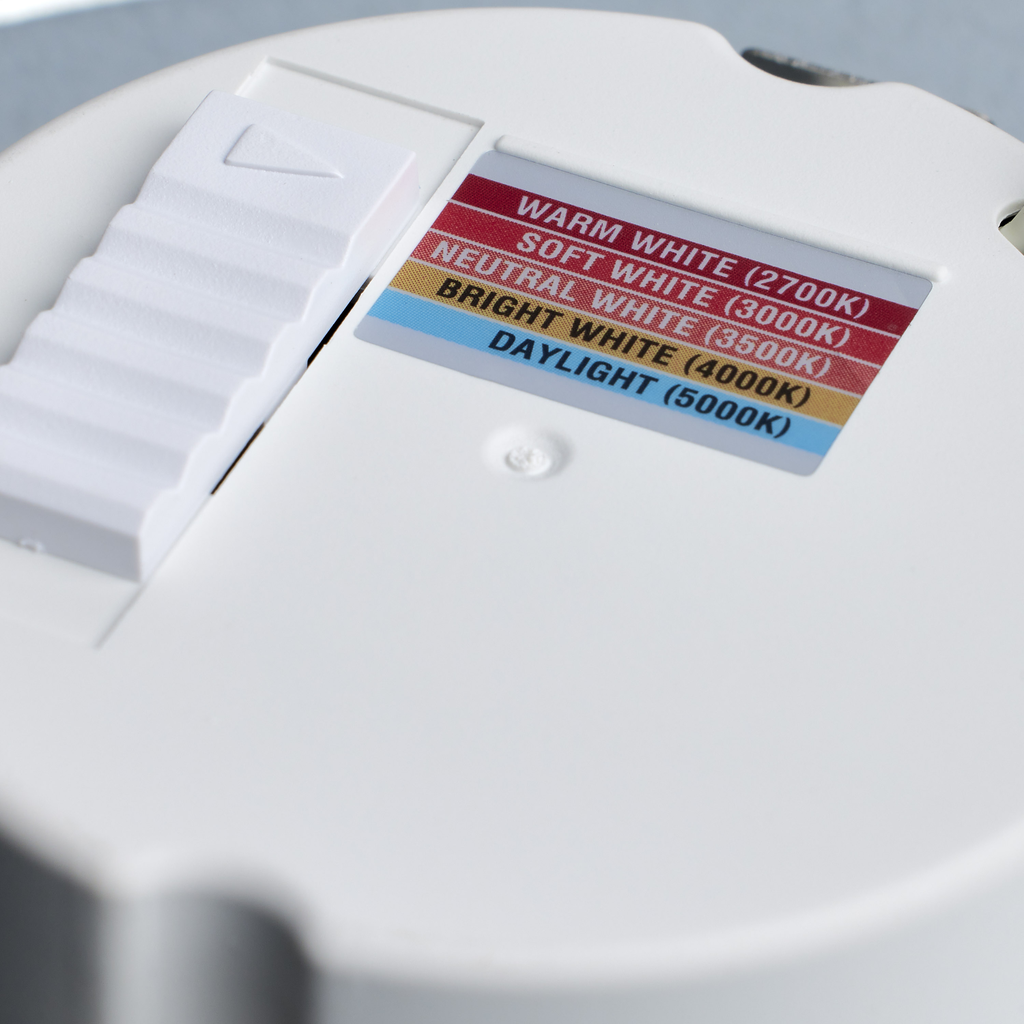

• Temperature (CCT): 2700K/3000K/3500K/4000K/5000K
• Volts: 120V
• Watts: 11W
