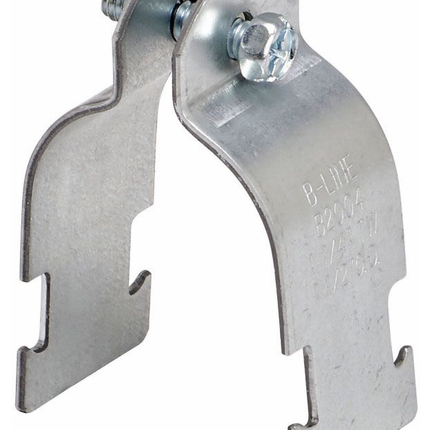

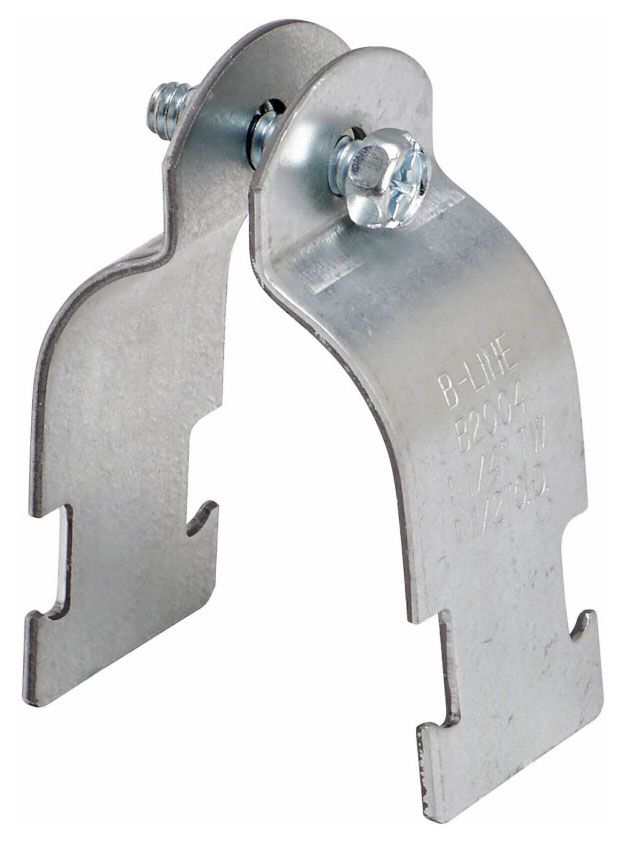

B2009PA-ZN Pipe/Conduit Clamp – Electrical Distributor and Lighting Solutions Component

The B2009PA-ZN Pipe/Conduit Clamp by B-Line is a robust support solution designed for securing pipes and conduits in electrical distribution and lighting applications. Manufactured from carbon steel with a zinc electroplated finish, this clamp provides durable and corrosion-resistant support ideal for wiring and cable installations. It is suitable for use in switchgear assemblies and other electrical infrastructure requiring reliable pipe or conduit fastening without welding or drilling.

Specifications

• Manufacturer: B-Line
• Manufacturer Part Number: B2009PA-ZN
• Material: Carbon Steel
• Finish: Zinc Electroplated (ASTM B633 SC3 Type III or ASTM A653)
• Product Weight: 0.15 lbs (approx. 68 grams)
• Design Load (Typical for 3/4" Clamp Size): 600 lbs Ultimate Load with Safety Factor of 5
• Includes combination recess hex head machine screw and square nut
• Compliance: Meets ASTM standards for material strength and finish
• Safety Factor: 5.0 (ratio of ultimate load to design load)

Features

• Pre-assembled clamp option available with "PA" suffix for ease of installation
• Corrosion-resistant zinc electroplated finish suitable for indoor electrical environments
• Designed for use with conduit, pipe, and tubing in electrical distribution, lighting solutions, and wire and cable management
• Compatible with B-Line strut systems and supports for flexible mounting configurations
• Eliminates the need for drilling or welding during installation, reducing labor time
• Includes hardware for secure fastening to electrical infrastructure

Downloads and Links

• B-Line Series Strut Systems Catalog (PDF)
• Installation Instructions (PDF)
