Description
Features

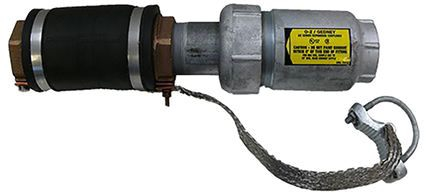

- Fitting Assembly Can be Used Embedded in Concrete as Shown or Can be Used in Exposed Location
- Fitting Include Standard Type DX and AX Fitting, Bonding Jumper, Insulating Bushing and Short Nipple
Additional Information
- Application Allow for a Deflection of 30 Deg from Normal Alignment in any Direction, Designed to withstand Occasional Vibration Transmitted to Conduit by Rotating Equipment or Vehicular Traffic
Specifications
- Trade Size: 2-1/2 Inch
- Diameter: 4-1/2 Inch
- Length: 18 Inch
- Maximum Movement: 4 Inch
- Material: Bronze End Coupling, Neoprene Sleeve, Stainless Steel Band, Tinned Copper Braid Bonding Jumper
- Approval: UL 514B, CSA C22.2
- Used On: Rigid Metal Conduit/IMC
- Series/Model: ADAX
Downloads
CatalogBrochure
Other 1
More Information
Manufacturer Catalog Number
AXDX-250
Weight
17.2
Length
18
Material
Bronze End Coupling
Diameter
4-1/2 inches
