Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39121419 Flex connectors
• IGCC: 4573 Flex connectors
• Brand Name: T&B Industrial Fitting

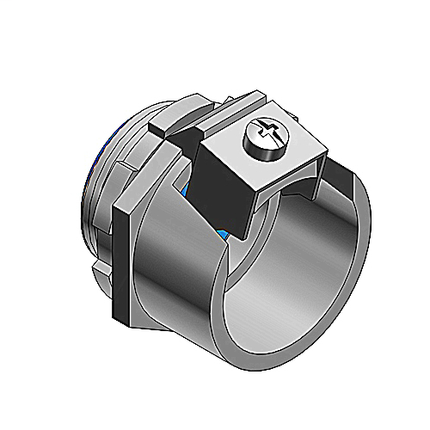

• Type: Armoured Cable and Flexible Metal Conduit Fittings
• Special Features: UL Listed for Armoured Cable Only
• Application: To Connect and Effectively Bond Armoured Cable or Flexible Metal Conduit to a Box or an Enclosure
• Standard: CSA, UL
• Size: 1/2 Inch
• Connection: Straight
• Conductor Range: 0.470 to 0.660 Inch
• Material: Steel
• Finish: Zinc Plated
• Color: Metallic
• Insulation: Nylon

European Specifications (ETIM)

• ETIM: EC001180 Screw connection for protective metallic hose
• Nominal size in inch: 1/2 inch
• Model: Straight
• Revolving thread: N
• Construction type: External thread
• Connection type screw connection to housing: Other
• Material housing: Other
• Total length: 11.11mm

Packaging

• Inner Quantity: 50
• Outer Quantity: 500
• Weight Uom: 5.69 lbs. per 100
