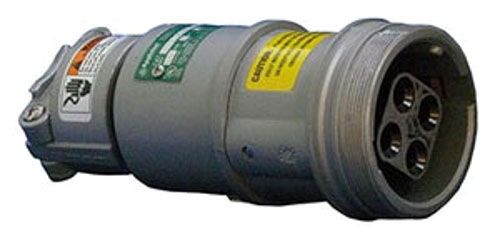

Features

• Circuit Breaking - In 60 Amp Units, any Arcing Created as Line and Load Terminal Disengage is Safely Confined Deep within Terminal Cavities
• Plugs May be Withdrawn in an Emergency Under Full Rated Loads without Separate Disconnect Switch
• Locking Screw and Slot Prevents Plug Cable Collar from "Backing Off"
• Controlled Length Contacts Ensure that Ground Makes First and Breaks Last for Added Safety
• Contacts Exert Constant Pressure Along Entire Contact Surface and Provide Electrical Continuity
• Insulating Blocks Provide Greatest Dielectric and Mechanical Strength and Lowest Arc Tracking
• Neoprene Bushing Compressed by Cable Collar Prevents Entrance of Water
• Bushing is Highly Resistant to Hydrocarbon Deterioration and is Self-Extinguishing
• 60 Amp Powertite™ Plugs also Suitable for Classified Locations When Used with Appleton EBR, EBRH, JBR, MD2SR or DBR Explosionproof Interlocking Receptacles
• Neoprene Bushing Compressed by Cable Collar Prevents Entrance of Water
• Bushing is Highly Resistant to Hydrocarbon Deterioration and is Self-Extinguishing
• Locking Screw and Slot Prevents Plug Cable Collar from Backing Off
• Contacts Exert Constant Pressure Along Entire Contact Surface and Provide Electrical Continuity
• Insulating Blocks Provide Greatest Di-Electric and Mechanical Strength and Lowest Arc Tracking

Additional Information

• Wire Size 6 AWG to 2 AWG
• Temperature Rating -13 to 104 Deg F
• Enclosure Rating NEMA 3/4/4X
• Wire Recess Diameter 0.312 Inch
• Insulating Block Material Fiberglass Reinforced Polyester
• Applicable Standard NEC/CEC

Specifications

• Type: Circuit Breaking
• Voltage Rating: 600 Volt AC, 250 Volt DC, 50 to 400 Hertz
• Current Rating: 60 Amp
• Number of Poles: 4
• Number of Wires: 4
• Grounding Style: 1, Shell
• Minimum Cable Outer Diameter: 0.5 Inch
• Maximum Cable Outer Diameter: 1.375 Inch
• Material: Epoxy Powder Coated Aluminum
• Approval: UL (Canada and US), UL, CSA
• Constructional Feature: Weatherproof
