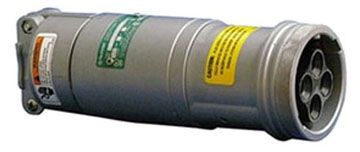

Features

• Circuit Breaking - In 100 Amp Units, any Arcing Created as Line and Load Terminal Disengage is Safely Confined Deep within Terminal Cavities
• Plugs May be Withdrawn in an Emergency Under Full Rated Loads without Separate Disconnect Switch
• Locking Screw and Slot Prevents Plug Cable Collar from "Backing Off"
• Controlled Length Contacts Ensure that Ground Makes First and Breaks Last for Added Safety
• Contacts Exert Constant Pressure Along Entire Contact Surface and Provide Electrical Continuity
• Insulating Blocks Provide Greatest Dielectric and Mechanical Strength and Lowest Arc Tracking
• Neoprene Bushing Compressed by Cable Collar Prevents Entrance of Water
• Bushing is Highly Resistant to Hydrocarbon Deterioration and is Self-Extinguishing
• 100 Amp Powertite™ Plugs also Suitable for Classified Locations When Used with Appleton EBR, EBRH, JBR, MD2SR or DBR Explosionproof Interlocking Receptacles
• Neoprene Bushing Compressed by Cable Collar Prevents Entrance of Water
• Bushing is Highly Resistant to Hydrocarbon Deterioration and is Self-Extinguishing
• Locking Screw and Slot Prevents Plug Cable Collar from Backing Off
• Contacts Exert Constant Pressure Along Entire Contact Surface and Provide Electrical Continuity
• Insulating Blocks Provide Greatest Di-Electric and Mechanical Strength and Lowest Arc Tracking

Additional Information

• Enclosure Type NEMA 3/3R/4/4X
• Temperature Rating -40 to 225 Deg F
• Applicable Standard NEC/CEC
• Wire Recess Diameter 0.391 Inch
• Contact Material Copper
• Insulating Block Material Fiberglass Reinforced Polyester
• Enclosure Rating NEMA 3/4/4X

Specifications

• Type: Compressor, Motor Generator Unit, Pump, Welding
• Constructional Feature: Weatherproof, Rain Tight
• Voltage Rating: 600 Volt AC at 50 to 400 Hertz, 250 Volt DC
• Current Rating: 100 Amp
• Number of Poles: 4
• Number of Wires: 3
• Grounding Style: 2-Shell/Extra Pole
• Minimum Cable Outer Diameter: 0.875 Inch
• Maximum Cable Outer Diameter: 1.906 Inch
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Approval: UL, CSA
• Series/Model: ARC
