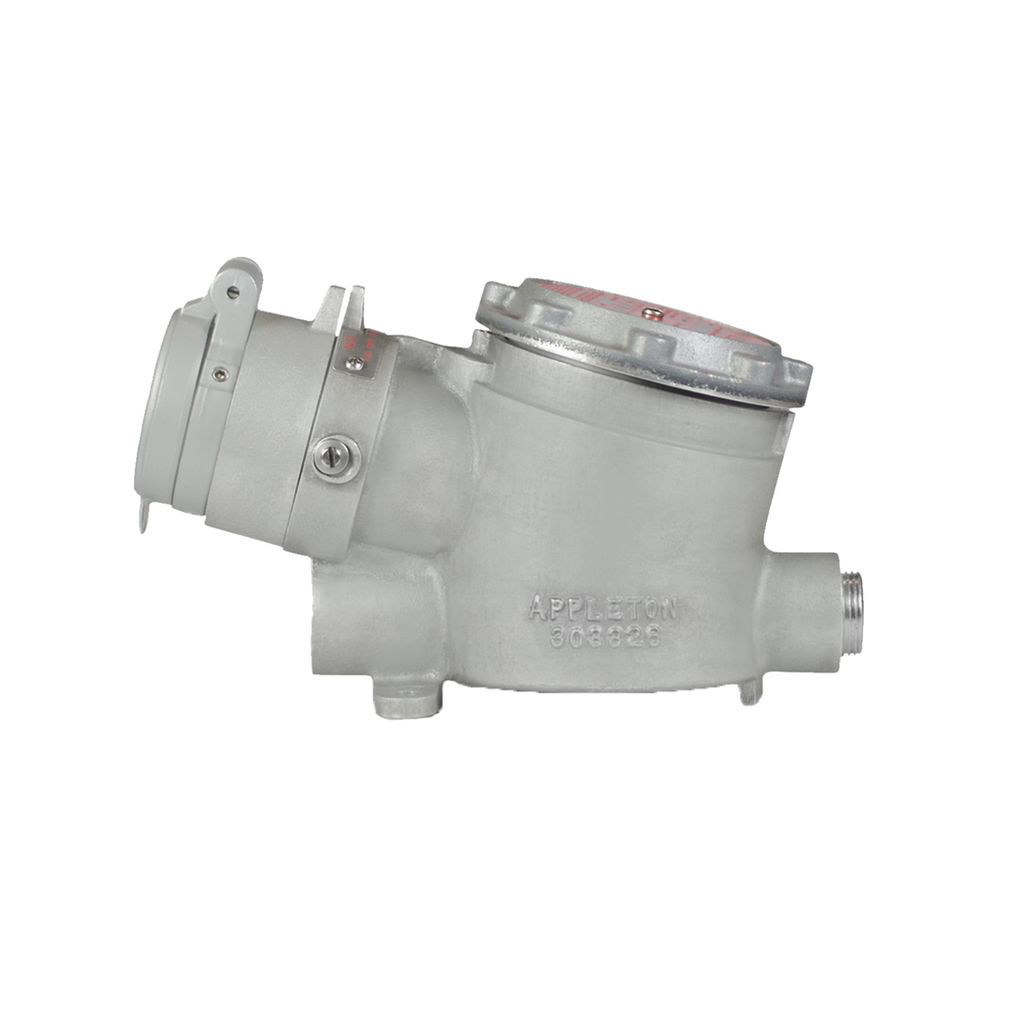

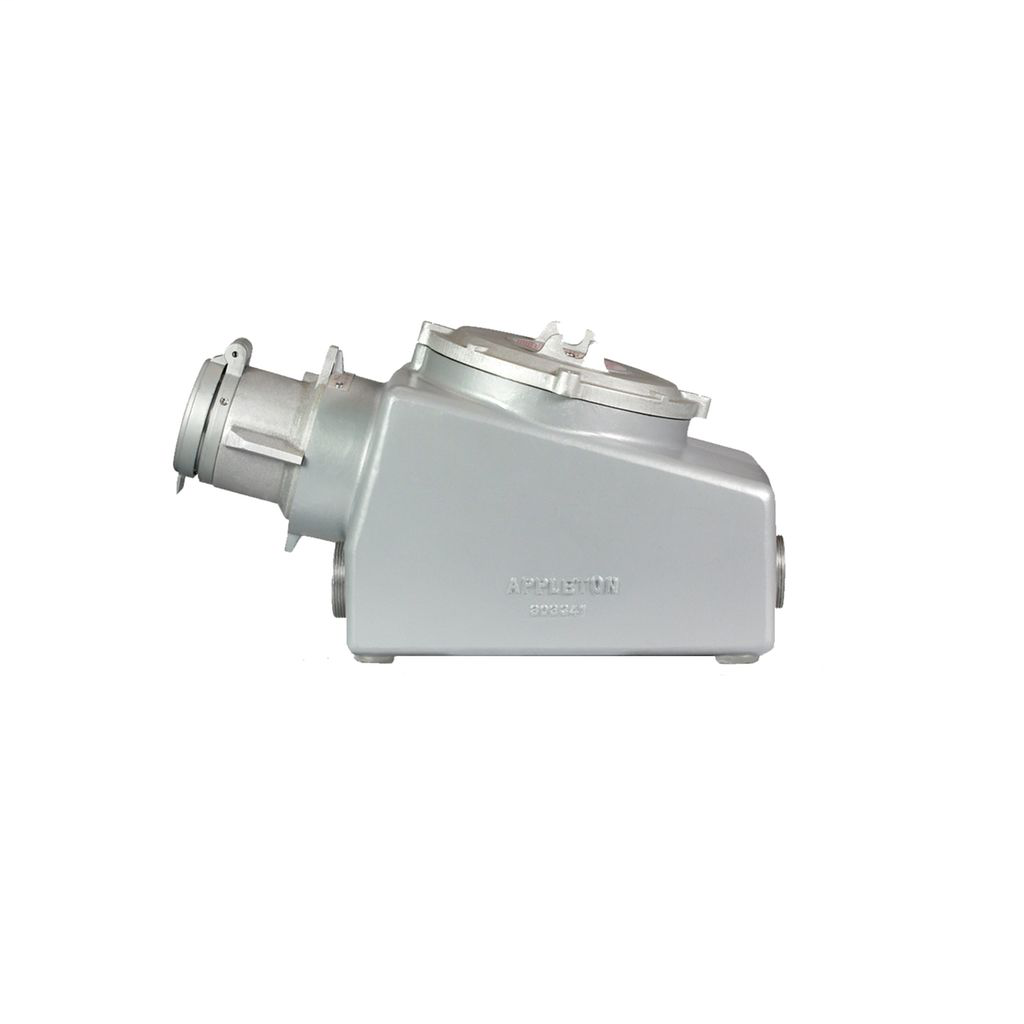

Features

• Interlocked disconnect switch provides safe connect and disconnect operation at 30, 60 or 100 Amp, 600 Vac maximum, three pole, non-fused motor circuit switch
• To operate, insert the plug and turn receptacle collar to the ON position. To remove the plug, turn the plug to the OFF position and pull the plug out
• Style 2 (shell and extra pole) grounding
• Spring door keeps dust out of receptacle when plug is not in use. Screw cover also supplied free of charge for NEMA 4 applications.
• Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
• Insulators provide superior dielectric and mechanical strength and lowest arc tracking
• Contacts have beryllium copper wire springs
• Tapped NPT conduit openings at top and bottom: 30 Amp 3/4#8221;, 60 Amp 1-1/2#8221;, 100 Amp 2#8221;
• Large housing provides ample wiring room
• Powertite™ Series plug fits hazardous location FSQC receptacles

Specifications

• Hazardous Area Classification: Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III; NEMA 3, 3R, 4, 4X, 7CD, 9FG
• Amperage: 30, 60 or 100
• Voltage: 120 Vac, 240 Vac, 480 Vac or 600 Vac
• Number of Poles: 4
• Number of Wires: 3
• Plug Cable Diameter: 30 Amp: 0.500 to 1.125#8221;, 60 Amp: 0.500 to 1.375#8221;, 100 Amp: 0.875#8221; to 1.906#8221;
• Wire Range: 30 Amp: #10-#8, 60 Amp: #6-#4, 100 Amp: #2-1/0
• Mounting Box Entries: Feed-Thru
• Materials and Finishes: Receptacles, mounting box, covers and plug housings are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Insulating blocks are fiber glass reinforced polyester.
