Features

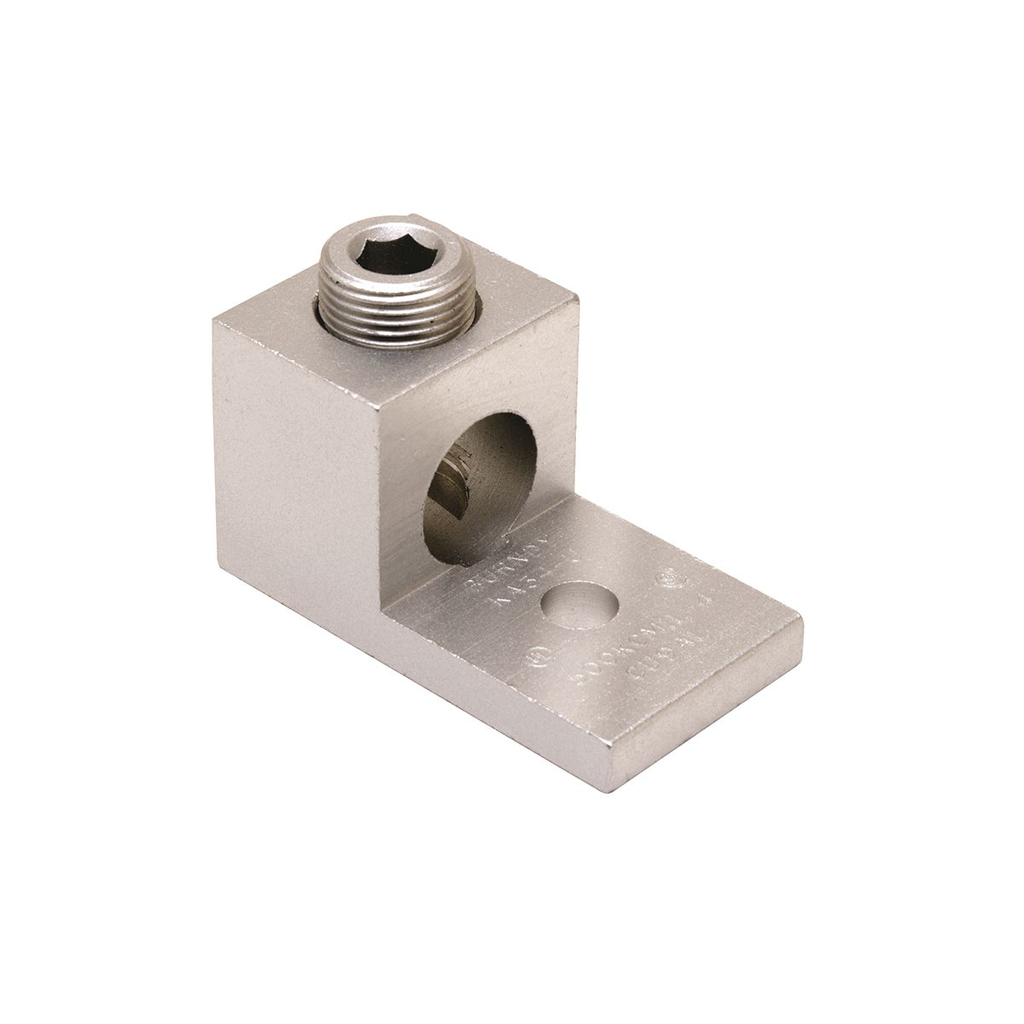

• Dual rated panelboard lugs constructed from high strength extruded aluminum alloy , electro tin-plated to provide low contact resistance
• These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Stud/bolt Hole Size: 3/8 IN, Dimension D: 13 IN, Dimension N: 0.88 IN, Number Of Screws: 1, Dimension T: 0.25 IN, Set Screw Type: Allen Key, Installation Torque: 375 IN-LB, Length: 2.25 IN, Height: 1.12 IN, Width: 1.13 IN

Specifications

• Country of Origin: Mexico
• Buy American Compliant: Yes
• ChannelSightWidgetId: 705
• Conductor - AL Str Size: 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
• Conductor - AL Str Size Range: 6 AWG-350 kcmil
• Conductor - Copper Str Size: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
• Conductor - Copper Str Size Range: 6 AWG-350 kcmil
• Description - Slang: 1 Cable to Flat
• Dimension - Bolt Hole Size inch: 0.38 in
• Dimension - Bolt Size fraction: 3/8
• Dimension - D inch: 1.03 in
• Dimension - Height fraction: 1.2702702702702702 in
• Dimension - Height inch: 1.27 in
• Dimension - Hole Size inch: 0.42 in
• Dimension - Hole Size mm: 11 mm
• Dimension - L Length Overall mm: 57 mm
• Dimension - Length Overall inch: 2.25 in
• Dimension - N inch: 0.52 in
• Dimension - Pad Width inch: 1.14 in
• Dimension - Stud Size inch: 3/8
• Dimension - Width fraction: 1-13/100 in
• Dimension - Width inch: 1.13 in
• Dimension - Width mm: 29 mm
• Width: 1.14 in
• Each - Width: 1.14 in
• Industry Standard(s): UL 486A-486B
• Installation Torque Recommended in-lb: 275 LBS/in
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Number of Screws: 1
• Physical Attribute - Screw Type: Allen
• Plated: Y
• Plating Type: Tin
• Product Type: TERMINAL
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: EX
• Application: For Aluminum And Copper Conductors
• Number of Conductors: 1
• Number of Conductors/Ports (Main/Primary): 1
• Special Features: Features: These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Stud/bolt Hole Size: 3/8 IN, Dimension D: 13 IN, Dimension N: 0.88 IN, Number Of Screws: 1, Dimension T: 0.25 IN, Set Screw Type: Allen Key, Installation Torque: 375 IN-LB, Length: 2.25 IN, Height: 1.12 IN, Width: 1.13 IN
• Standard: UL 486A-486B
• Sub Brand: UNIVERSAL TERM
• Temperature Rating: 194
• Type: Bolted Lugs & Terminals
• Conductor Size: 6 AWG-350 KCMIL
• Conductor Type: CU C Str-Size;AL C Str-Size
• Connector Type: Terminal
• Number Of Conductors: 1
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B51
• Description - Invoice: 6STR-350 DUAL RATED
• Freight Class Code: 16027000
• Harmonization Code: 8535908020
• Image Actual Or Representative: A
• Lead Time: 10 wk
• MSDS Flag: No
• Order Multiple: 25 EA
• Stock Indicator: N - Non-stock
• Sub Class Code: B51BGEF
• UL Listed: Yes
• Material: Aluminum
• Material - Hardware: Aluminum
• Base Unit of Measure: EA
• BOX SIZE: 0.000x0.000x0.000 (in)
• Carton - Gross Weight per Pack: 0.000 lb.
• Carton - Number of Sub Packs: 300
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810370209
• Carton - Total Units: 300 EA
• Case - SCC-14 Next Lower Level Sub Pack: 30781810370200
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 3.5 lb.
• Package - GTIN - Package: 30781810370200
• Package - Number of Sub Packs: 25
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810370209
• Package - Total Units: 25 EA
• Package Height: 8.875 in
• Package Length: 2.12 in
• Package Quantity: 25 EA
• Package Weight: 3.5 lb.
• Package Width: 5.375 in
• Standard Package Quantity: 25
