Features

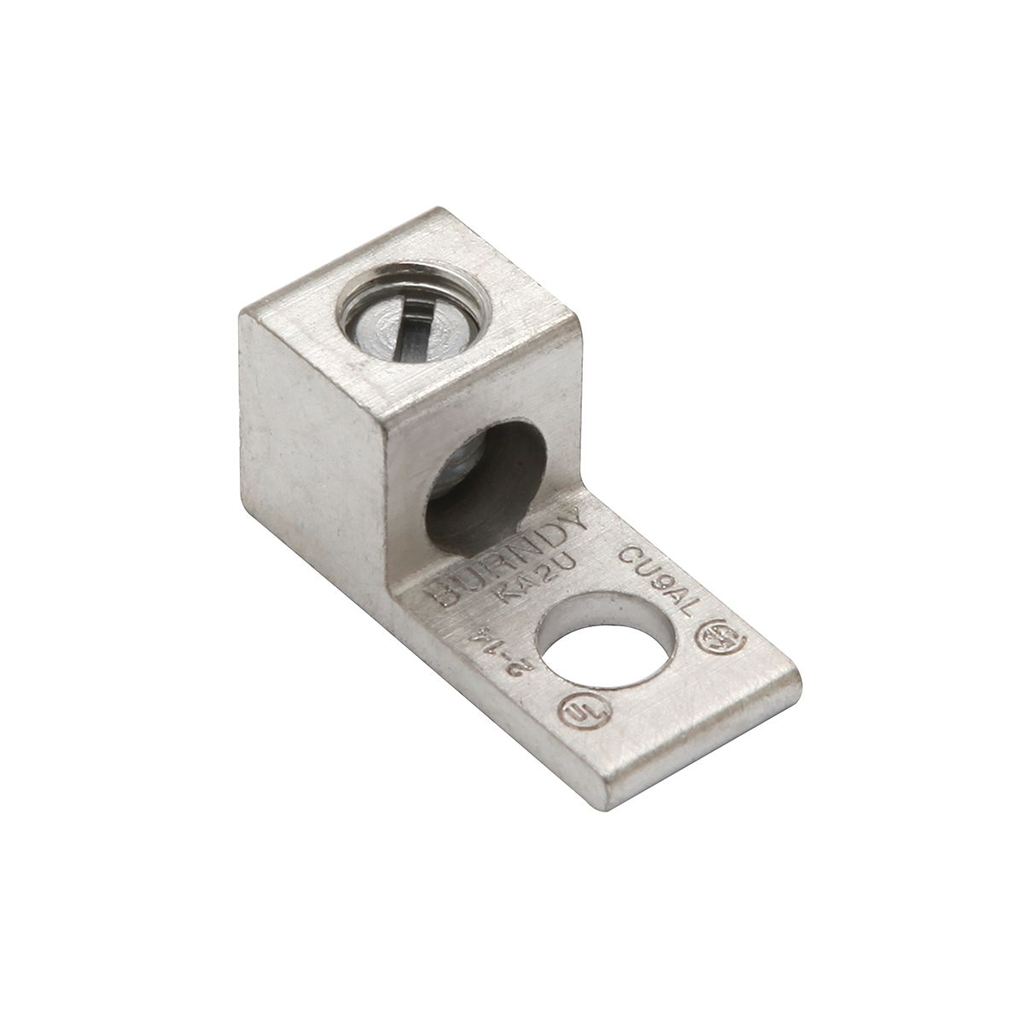

• Dual rated panelboard lugs constructed from high strength extruded aluminum alloy , electro tin-plated to provide low contact resistance
• These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Number Of Screws: 1, Dimension T: 09 IN, Stud/bolt Hole Size: 1/4 IN, Dimension N: 0.25 IN, Dimension D: 0.63 IN, Set Screw Type: Slot, Installation Torque: 45 IN-LB, Height: 0.5 IN, Width: 1/2 IN, Length: 16 IN

Specifications

• Country of Origin: Mexico
• Buy American Compliant: Yes
• ChannelSightWidgetId: 705
• Conductor - AL Str Size: 8 AWG;6 AWG
• Conductor - AL Str Size Range: 8 AWG-6 AWG
• Conductor - Copper Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG
• Conductor - Copper Str Size Range: 14 AWG-6 AWG
• Conductor - Nominal Diameter: 0.072, 0.091, 0.116, 0.130, 0.146, 0.164, 0.184, 0.184, 0.184
• Description - Slang: 1 Cable to Flat
• Dimension - Bolt Hole Size inch: 0.25 in
• Dimension - Bolt Size fraction: 1/4
• Dimension - D inch: 0.63 in
• Dimension - Height inch: 0.51 in
• Dimension - Hole Size inch: 0.27 in
• Dimension - Hole Size mm: 7 mm
• Dimension - L Length Overall mm: 27 mm
• Dimension - Length Overall inch: 1.06 in
• Dimension - N inch: 0.25 in
• Dimension - Pad Width inch: 0.50 in
• Dimension - Stud Size inch: 1/4
• Dimension - Width fraction: 1/2 in
• Dimension - Width inch: 0.50 in
• Dimension - Width mm: 13 mm
• Width: 0.5 in
• Each - Width: 0.5 in
• Industry Standard(s): UL 486A-486B
• Installation Torque Recommended in-lb: 35
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Number of Screws: 1
• Physical Attribute - Screw Type: Slot
• Plated: Y
• Plating Type: Tin
• Product Type: TERMINAL
• Rating - Minimum Voltage: 600
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: EX
• Application: For Aluminum And Copper Conductors
• Number of Conductors: 1
• Number of Conductors/Ports (Main/Primary): 1
• Special Features: Features: These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Number Of Screws: 1, Dimension T: 09 IN, Stud/bolt Hole Size: 1/4 IN, Dimension N: 0.25 IN, Dimension D: 0.63 IN, Set Screw Type: Slot, Installation Torque: 45 IN-LB, Height: 0.5 IN, Width: 1/2 IN, Length: 16 IN
• Standard: UL 486A-486B
• Sub Brand: UNIVERSAL TERM
• Type: Bolted Lugs & Terminals
• Conductor Size: 14-6 AWG
• Conductor Type: CU C Str-Size;CU C Solid-Size
• Connector Type: Terminal
• Number Of Conductors: 1
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B51
• Description - Invoice: 14STR-6STR DUAL RATED
• Freight Class Code: 16027000
• Harmonization Code: 8535908020
• Image Actual Or Representative: A
• Lead Time: 10 wk
• MSDS Flag: No
• Order Multiple: 100 EA
• Stock Indicator: N - Non-stock
• Sub Class Code: B51BGEF
• UL Listed: Yes
• Material: Aluminum
• Material - Hardware: Steel
• Base Unit of Measure: EA
• BOX SIZE: 0.000x0.000x0.000 (in)
• Carton - Gross Weight per Pack: 0.000 lb.
• Carton - Number of Sub Packs: 2400
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810370179
• Carton - Total Units: 2400 EA
• Case - SCC-14 Next Lower Level Sub Pack: 30781810370170
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 1.6 lb.
• Package - GTIN - Package: 30781810370170
• Package - Number of Sub Packs: 100
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810370179
• Package - Total Units: 100 EA
• Package Height: 4 in
• Package Length: 3 in
• Package Quantity: 100 EA
• Package Weight: 1.6 lb.
• Package Width: 3.25 in
• Standard Package Quantity: 100
