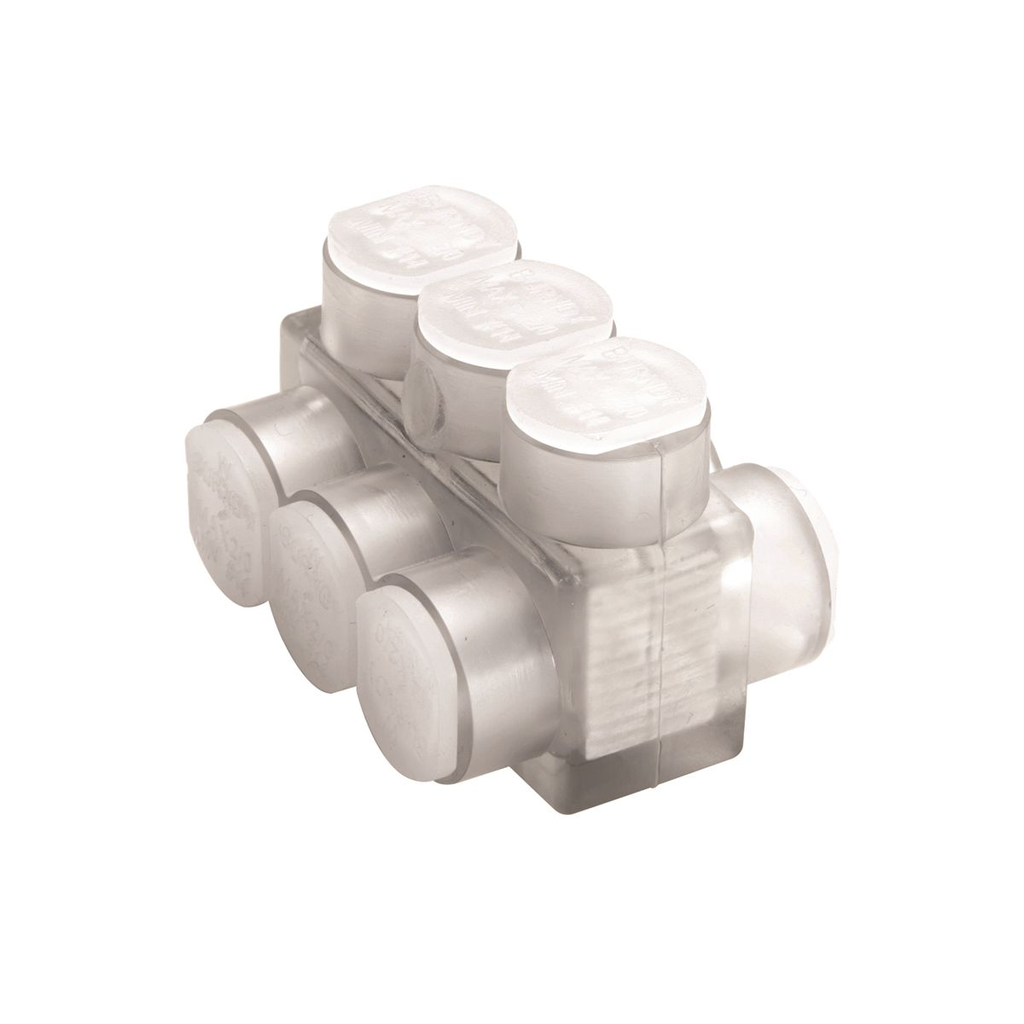

Features

• Clear Plastisol covered AL6061-T6 aluminum body saves times and lowers installation costs and eliminates taping
• Clear plastisol allows visual confirmation that conductor is properly inserted
• Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area
• Range-taking capability reduces number of connectors necessary to carry in inventory
• Clear Plastisol covered AL6061-T6 aluminum body, Clear Plastisol

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• Conductor - AL Str Size: 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil
• Conductor - AL Str Size Range: 2 AWG - 750 kcmil
• Conductor - Copper Str Size: 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil
• Conductor - Copper Str Size Range: 2 AWG - 750 kcmil
• Description - Slang: Clear Insulation
• Dimension - Height fraction: 3 in
• Dimension - Height inch: 3.00 in
• Dimension - L Length Overall mm: 143 mm
• Dimension - Length Overall inch: 5.63 in
• Dimension - Width fraction: 3-19/50 in
• Dimension - Width inch: 3.38 in
• Dimension - Width mm: 86 mm
• Width: 3.38 in
• Each - Width: 3.38 in
• Hex Key: 3/8
• Industry Standard(s): UL 486A-486B
• Insulation Type: Plastisol
• Physical Attribute - Number of Screws: 4
• Physical Attribute - Screw Type: Allen
• Plated: N
• Plating Type: Unplated
• Product Type: RUN/TAP
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: CM
• Trade Name: UNITAP™
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Conductor Size: 2 AWG-750 KCMIL
• Special Features: Clear Plastisol covered AL6061-T6 aluminum body, Clear Plastisol
• Standard: UL 486A-486B
• Sub Brand: UNITAP
• Temperature Rating: 194
• Type: BIBD, Multi-Port
• Conductor Type: AL C Str-Size;CU C Str-Size
• Connector Type: Multi Tap
• Insulation: Y
• Number Of Ports: 4
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B51
• Description - Invoice: 750-2 2-SIDED-4 UNITAP
• Freight Class Code: 16027000
• Harmonization Code: 8535908020
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B51BGUF
• UL Listed: No
• Material: Aluminum
• Material - Hardware: Aluminum
• Voltage - Maximum: 600 V
• Base Unit of Measure: EA
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810232873
• Case - SCC-14 Next Lower Level Sub Pack: 30781810232874
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 44.7 lb.
• Package - GTIN - Package: 30781810232874
• Package - Number of Sub Packs: 30
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810232873
• Package - Total Units: 30 EA
• Package Height: 12.5 in
• Package Length: 14 in
• Package Quantity: 30 EA
• Package Weight: 44.7 lb.
• Package Width: 12.5 in
• Standard Package Quantity: 30

Certifications

• CSA Approved: No
• cULus: No
• ETL: No
• UL Listed Direct Burial: No
• UL Recognized: No
• EU RoHS Indicator: Yes
