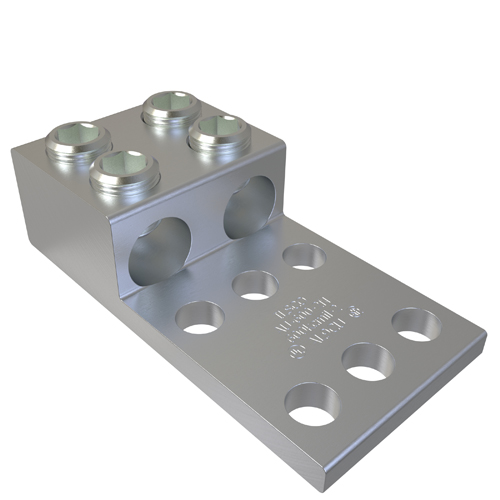

Specifications

• Height: 1.5 in
• Length: 5.5 in
• Weight: 0.986 lbs
• Width: 2.75 in

Additional Class Attributes

• Connection: Mechanical
• Contains DE-OX®: No
• Mounting Hole Type: Thru
• Number of Conductors: 2
• Number of Mounting Holes: 6
• Number of Poles: 1
• Number of Ports / Wireways: 2

Additional Technical Specifications

• Conductor Type: Stranded

Dimensions

• Dimension G (IN): 0.625
• Dimension G (mm): 15.875
• Drive Size Main: 1/2
• Drive Type Main: Internal Hex
• Height BX (IN): 2.75
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (IN): 1.75
• Mounting Hole Spacing (mm): 44.45
• Tang Length (IN): 3.25
• Tang Length (mm): 82.55
• Tang Thickness (IN): 0.375
• Tang Thickness (mm): 9.525
• Tang Width (IN): 2.75
• Tang Width (mm): 69.85
• Weight BX (LB): 3.1236
• Width BX (IN): 5

Material and Finish

• Conductor Material: Copper, Aluminum
• Connector Finish: Tin
• Material: Aluminum
• Wire Binding Hardware Finish: Tin
• Wire Binding Hardware Material: Aluminum

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/2
• Number of Wire Binding Screws per Port: 2
• Wire Binding Screw Size: 13/16
• Wire Binding Torque: 500

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line): 600 kcmil - 2 Str
• Conductor Range CU Stranded (Primary, run, main, line): 600 kcmil - 2 Str

Color

• Color: Silver

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 3
• Direct Burial: No
• Dual Rated: Yes
• NEMA Code: S-588-3
• UPC Code: 78366900577
