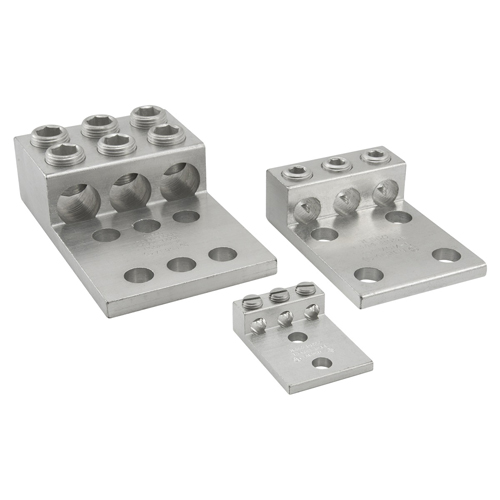

Specifications

• Height: 0.875 in | 22.225 mm
• Length: 2.906 in | 73.8124 mm
• Weight: 0.243 lbs
• Width: 1.938 in | 49.2252 mm

Additional Class Attributes

• Connection: Mechanical
• Contains DE-OX®: No
• Mounting Hole Type: Thru
• Number of Conductors: 3
• Number of Mounting Holes: 4
• Number of Poles: 1
• Number of Ports / Wireways: 3

Additional Technical Specifications

• Conductor Type: Stranded, Solid

Dimensions

• Dimension G (IN): 0.344
• Drive Type Main: Slotted
• Height BX (IN): 2.25
• Height (mm): 22.225
• Length (mm): 73.8124
• Mounting Bolt/Stud Size (mm): 965.2
• Mounting Hole Diameter (IN): 0.437
• Mounting Hole Diameter (mm): 11.0998
• Mounting Hole Spacing (IN): 1
• Mounting Hole Spacing (mm): 25.4
• Tang Length (IN): 2.156
• Tang Length (mm): 54.7624
• Tang Thickness (IN): 0.25
• Tang Thickness (mm): 6.35
• Tang Width (IN): 1.938
• Tang Width (mm): 49.2252
• Weight BX (LB): 2.3628
• Width BX (IN): 5
• Width (mm): 49.2252

Material and Finish

• Conductor Material: Copper, Aluminum
• Connector Finish: Tin
• Material: Aluminum
• Wire Binding Hardware Finish: Tin
• Wire Binding Hardware Material: Aluminum

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 3/8
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 7/16
• Wire Binding Torque: 4 - 6 AWG = 45, 8 AWG = 40, 10 - 14 AWG = 35, 2/0 - 2 AWG = 50

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line): 1/0 Str - 14 Str
• Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
• Conductor Range CU Stranded (Primary, run, main, line): 1/0 Str - 14 Str
• Conductor Range AL Solid (Primary, run, main, line): 10 Sol - 14 Sol

Color

• Color: Silver

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 6
• Direct Burial: No
• Dual Rated: Yes
• NEMA Code: S-588-3
• UPC Code: 78366990487
